CalderaSpas CELIO - Page 9

6
81.375” (214.0cm)
88.75” (207.0cm)
88.75”
(226.0cm)
81.375”
(207.0cm)
4.0” (10.0cm)
39.0”
(99.0cm)
36.0”
(91.0cm)
2.5” (6.5cm)
6.5” (16.5cm)
5”
(12.7cm)
18”
(45.5cm)
PALATINO
NOTE: All dimensions are approximate; measure your spa before making critical design or pathway decisions.
NOTE: Watkins Manufacturing Corporation recommends that the PALATINO be installed on a minimum (10 cm) thick reinforced concrete pad or structurally
sound deck able to support the “dead weight” found in the spa specification chart.
IMPORTANT: The PALATINO must not be shimmed in any manner.
DOOR SIDE
ELECTRICAL
CUTOUT
(BOTH SIDES)

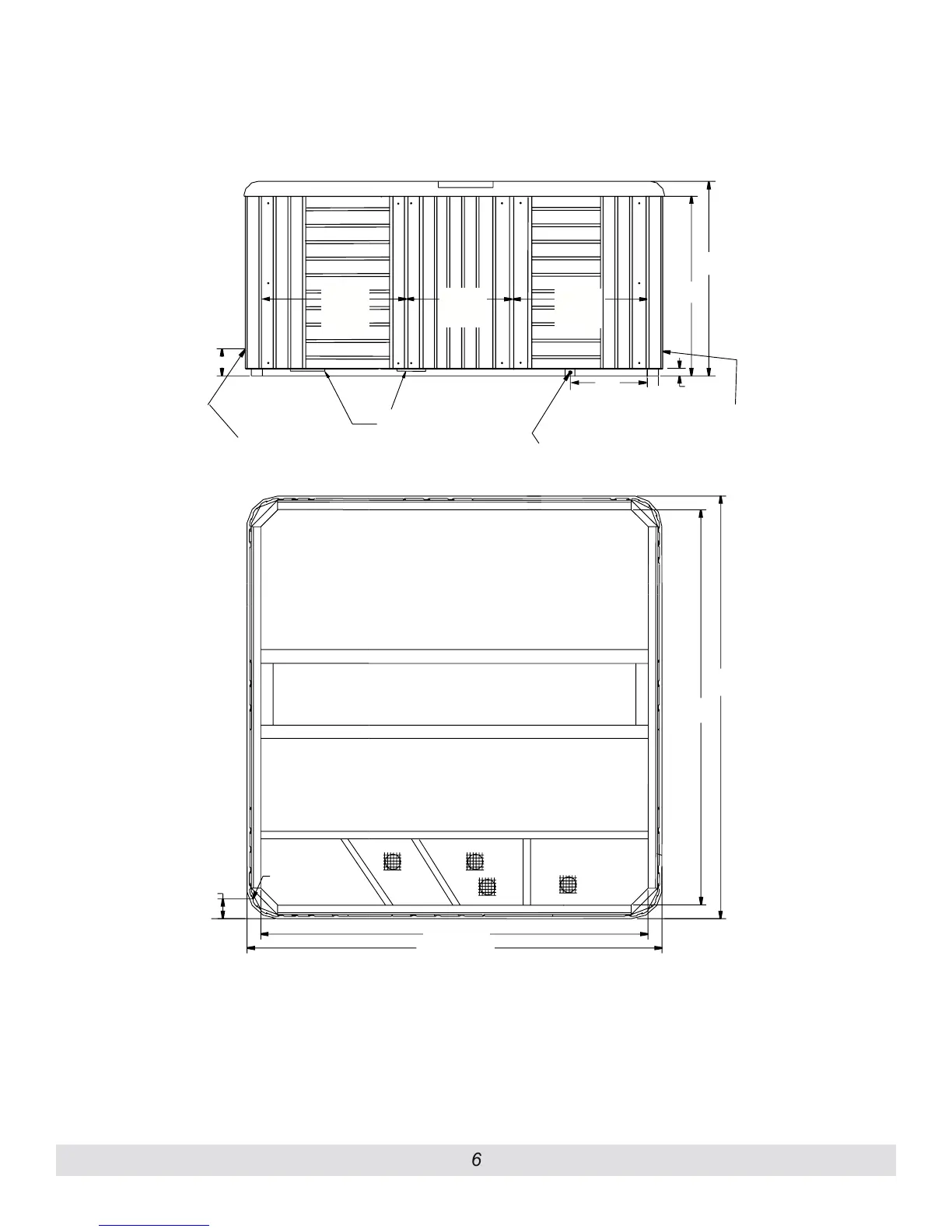

UPSIDE DOWN VIEW OF SPA
ELECTRICAL
CUTOUT
ELECTRICAL
CUTOUT
DRAIN
AIR VENT
DO NOT
BLOCK
DOOR
20.5"
(52.0 cm)
DOOR
27.25"
(69.0 cm)
DOOR
27.25"
(69.0 cm)
FRONT
VIEW
Installation
