HYDRO JETS
ADAPTAFLO Jets - These jets allow you to redirect the jet stream by
changing the position of the nozzle.
ADAPTASSAGE Jets - These jets provide a rotating massage pattern.
The face plates in the ADAPTAFLO jets and the ADAPTASSAGE jets
are interchangeable. To remove a ADAPTASSAGE face plate, turn it
counter-clockwise until it stops turning. Turn the face once more until
you hear a clicking noise, push it in, and then pull it straight off. Install
the face plate by snapping it into place. Additional ADAPTASSAGE
dual-port nozzles are available from your CALDERA dealer.
Both the ADAPTAFLO and ADAPTASSAGE jets allow you to regulate
the force of the massage. Rotate the fascia ring to reduce or increase
the force. Notice that turning off the flow to some jets increases the flow
to the other jets. To avoid damage to your spa’s plumbing and
components, do not turn off more than half of these jets at the same
time.
Euro Directional - The Euro Directional jets, with eyeball nozzles,
deliver a direct, more focused massage.
EURO-PULSE Jets - The EURO-PULSE jets feature a special insert
that creates a soft, pulsating, rotary massage.
NOTE: Please do not attempt to rotate the jet face on either the Euro
Directional, or EURO-PULSE as these jets do not regulate the force of
the massage.
VERSASSAGE Jets - These jets may be adjusted to provide either a
stationary, direct stream or, by positioning the nozzle to one side or the
other, a rotating jet stream.
The VERSASSAGE jets allow you to regulate the force of the massage.
Rotate the fascia ring counter-clockwise to reduce the force, or
clockwise to increase the force. Notice that turning off the flow to some
jets increases the flow to the other jets. To avoid damage to your spa’s
plumbing and components, do not turn off more than half of these jets at
the same time. For cleaning instructions, see the VERSASSAGE Jets
Maintenance section.
ORBISSAGE Jets - This jet provides a unique, pulsating massage. The
flow is adjustable in that it can be turned completely off or on (by
rotating the jet faceplate). It is also interchangeable with the
VERSASSAGE jet. For cleaning or replacement instructions see
VERSASSAGE Jets in the Spa Care and Maintenance section.
DIVERTER VALVES
The diverter valves on your spa allow you to direct the flow of water
from the pumps to various combinations of jets. The functions of these
diverter valves can best be learned by experimentation as follows:
Set all air controls to the “ON” position.
Turn on both pumps.
Turn the handle on
each diverter valve and
see which groups of
jets are affected. (Note
that you can adjust the
diverter valves to any
position between the
two possible extremes to
achieve the jet pressure
that feels best to you.)
IMPORTANT: Your
spa is not designed to provide full power to all jets when the diverter
valves are in the “mid” position. However, with the diverter valve in this
position, you may increase the power to selected jets by rotating the
face of the ADAPTAFLO
and ADAPTASSAGE jets to close the ones
that are not in use.
TIP: Turn both pumps on and place the diverter valves to the “Mid-
Position”. Then experiment with each of the air controls to see their
effect.

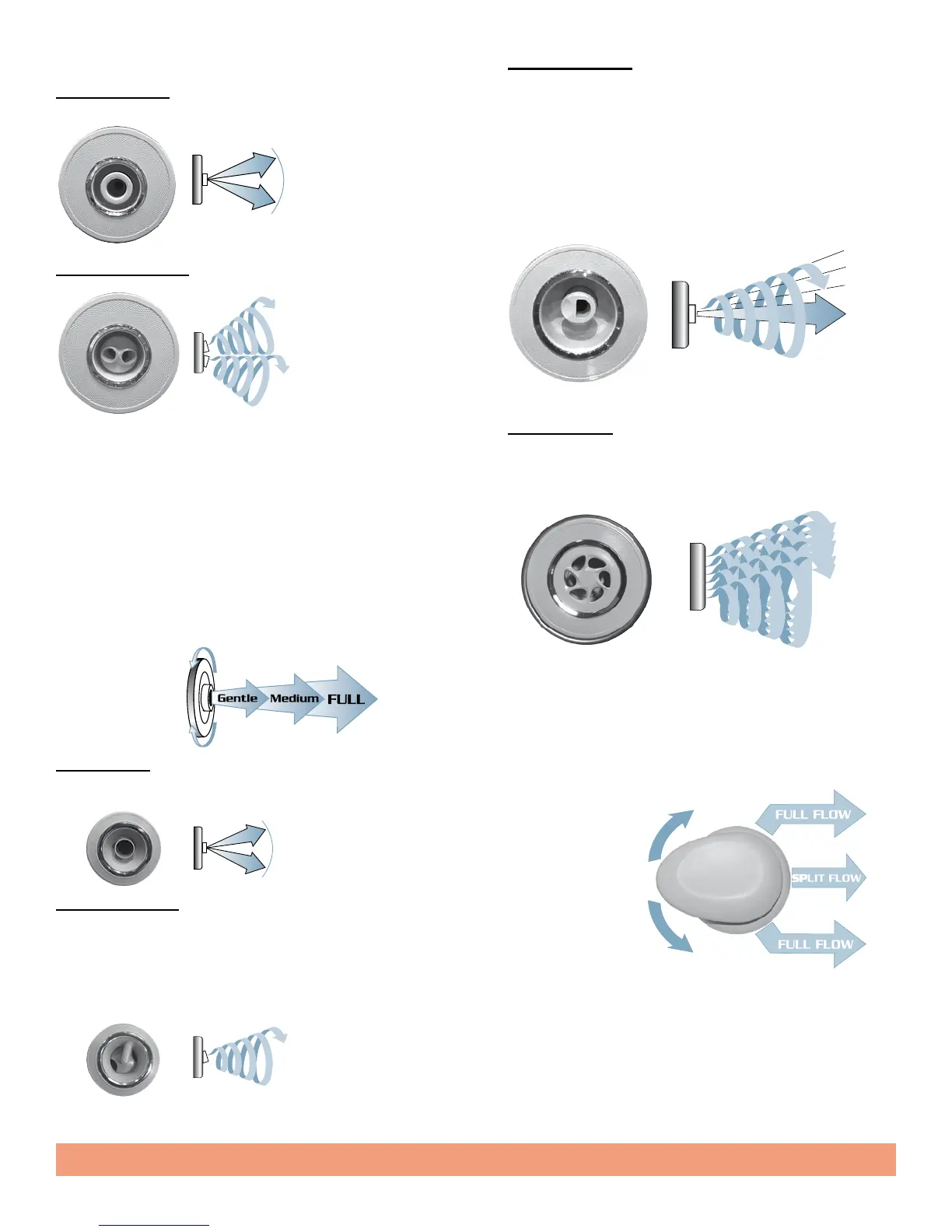

ADAPTAFLO Jet
ADAPTASSAGE Jet
Euro Directional Jet
EURO-PULSE Jet
VERSASSAGE
Jet
ORBISSAGE Jet
Page 5
