Place!and!solder!the!dropper!resistors!(R1!–!R4).!!!!
!

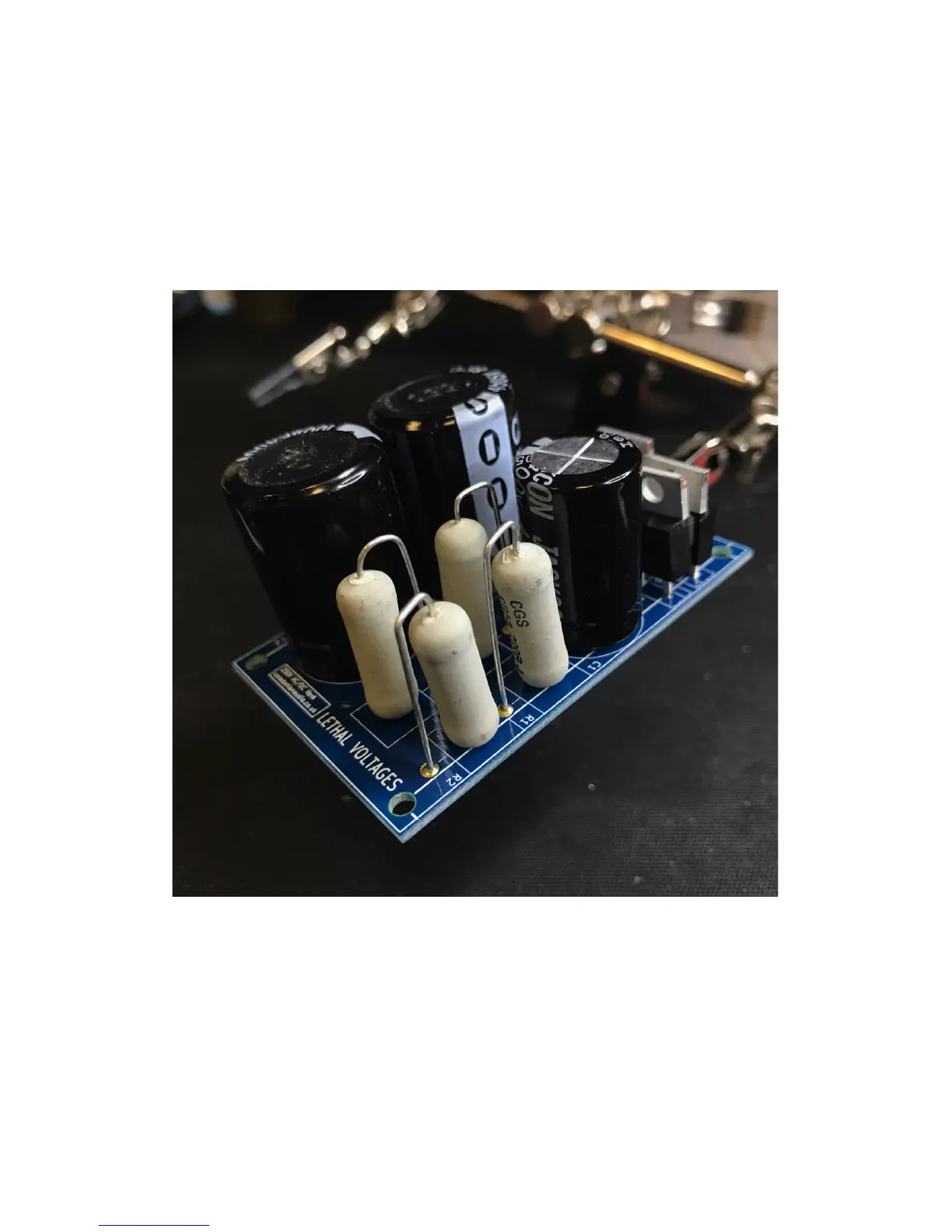

Figure!7!shows!the!resistors!placed!and!soldered.!The!main!power!supply!PCB!is!
now!ready.!!
!
See! Figure! 8! -! Main! power! supply! PCB! fully! populated! and! Figure! 9! -! Main! power!
supply!PCB!fully!populated!-!another!angle!for!additional!images! of!the!completed!
PCB.!
!
!
