Potentiometer*to*Amplifier*PCB*
!

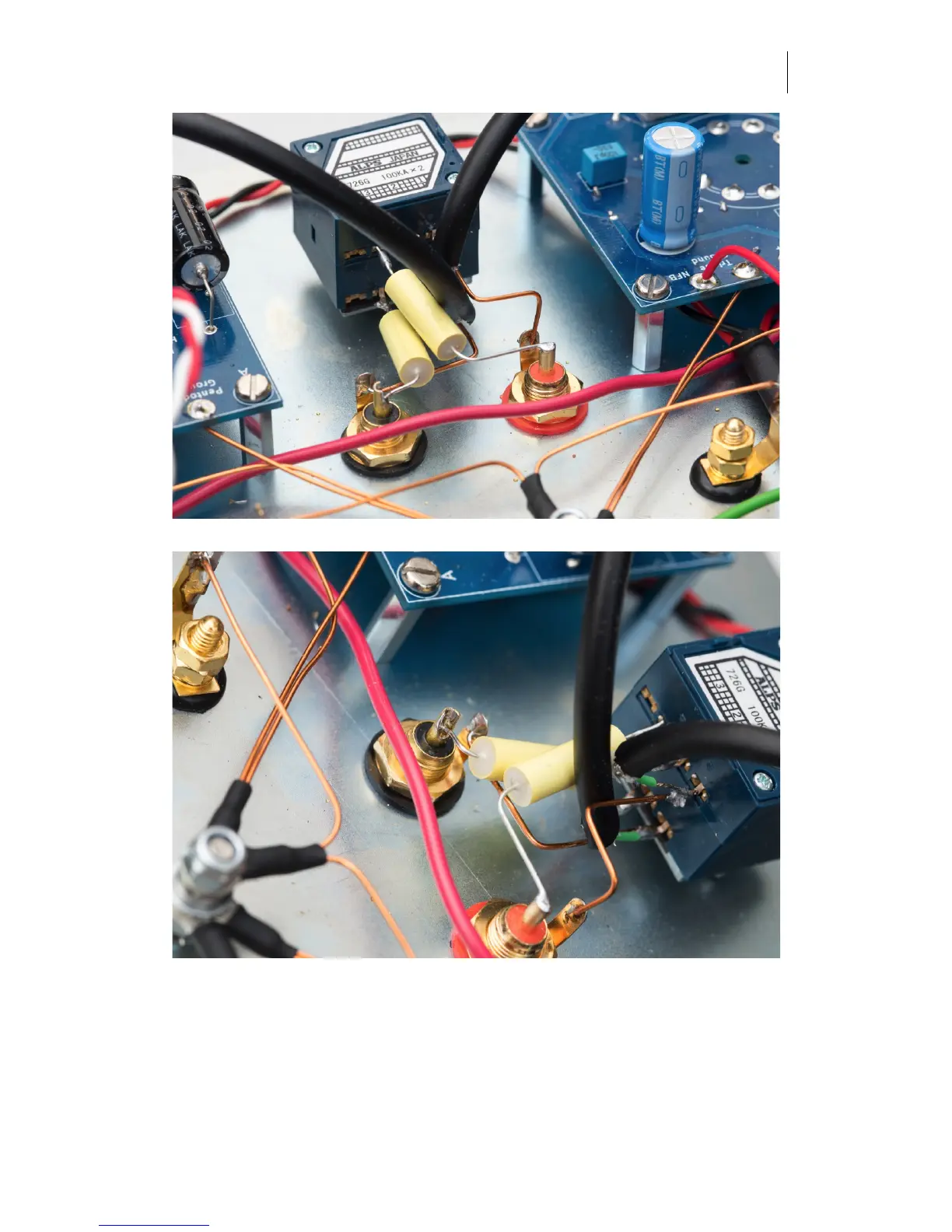

We! will! now! connect! the! audio! signal! from! the! potentiometer! to! both! of! the!
amplifier!PCBs,!starting!from!the!potentiometer!end.!
!
