Now!we!will!deal!with!the!ground!connections!between!the!RCA!terminals!and!
the!potentiometer.!!
!
In!this!case,!it!is!highly!recommended!that!you!use!a!single!core!copper!cable!that!
you! can! easily! shape! to! fit! the! space! in! between! potentiometer! and! RCA!
terminals.!!
!

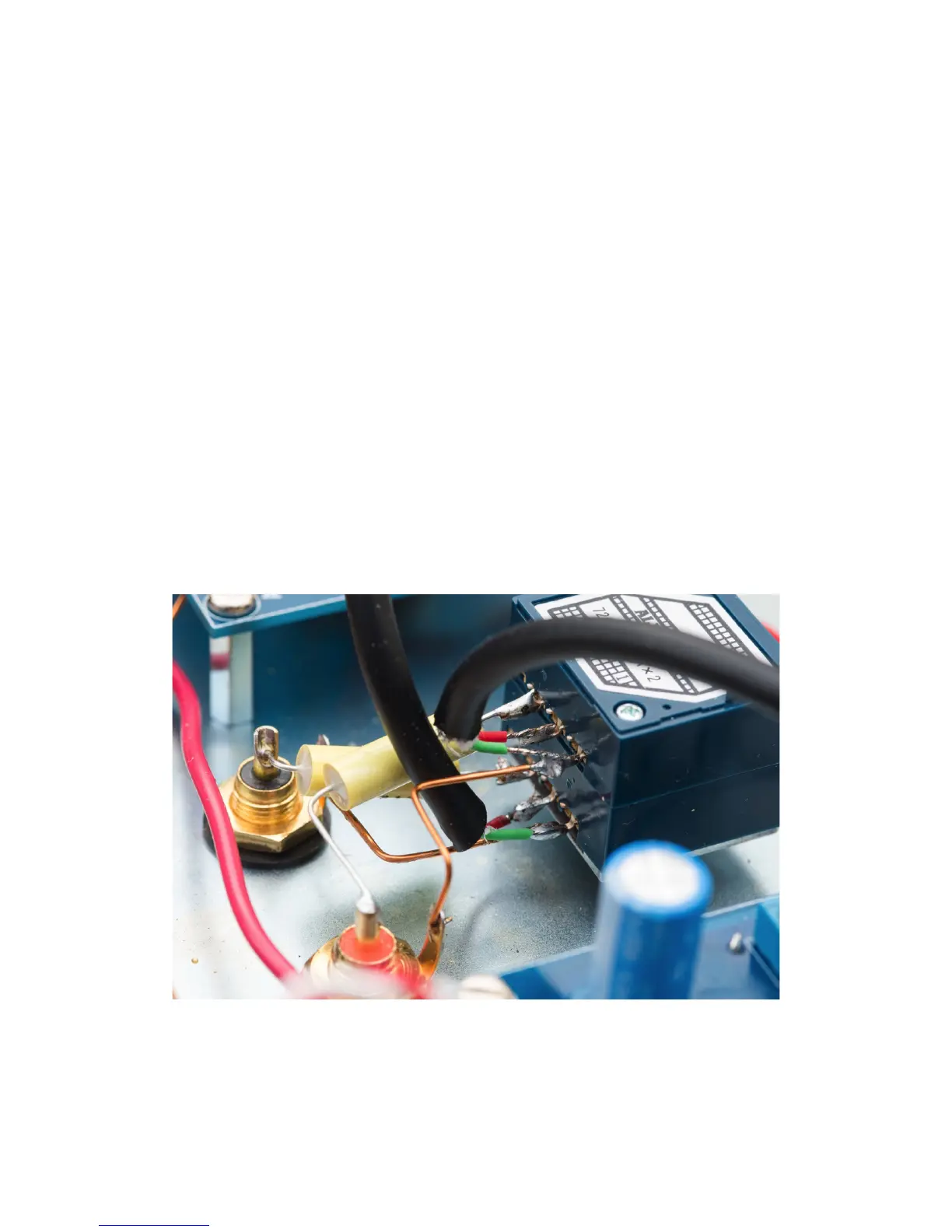

Figure!25!-!Single!core!insulated!copper!wire!used!for!ground!connections!and!Figure!
26! -! Potentiometer! wiring! show! an! example! of! how! this! is! done! (although! they!
really!show!the!completed!wiring!–!more!than!what!this!step!is!trying!to!do).!!
!
The! copper! cables! were! shaped! accordingly,! and! then! soldered! to! the! RCA!
ground!terminals!first!and!then!to!pin!1!on!the!potentiometer.!Please!note!that!
there!will!be!more!cables!being!soldered!to!pin!1!of!the!potentiometer!later!but!
for!now!the!single!copper!cable!will!be!the!only!one.!
!
!
!
