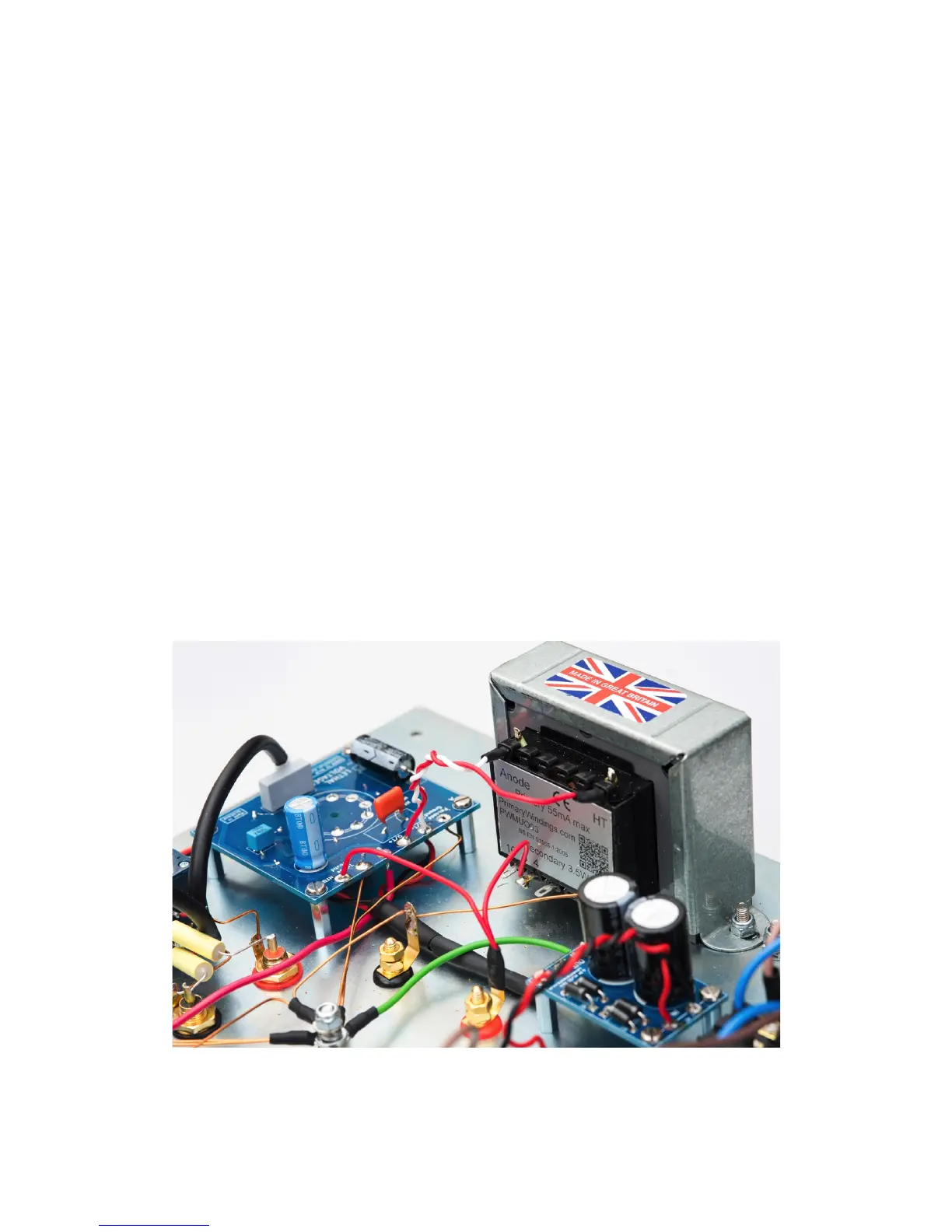

See!example!in!Figure!29!-!Amplifier!Board! Wiring.!This!is!the!white!(twisted!with!
red)!cable!connected!to!the!“Anode”!terminal!on!the!output!transformer!
!
789;(
See! example! in! Figure!29! -! Amplifier!Board! Wiring.! This! is! the! red! (twisted! with!
white)!cable!connected!to!the!“HT”!terminal!on!the!output!transformer!
!
<;(
This! terminal! should! already! be! connected! by! now,! to! the! main! power! supply!
board.!If!not,!please!refer!back!to!section:!B+!Power!Cables.!
9/$"1'(./"0-1(
Simply!connect!to!the!star!ground.!In!the!example!below,!a!single!core!insulated!
copper!core!cable!is!used!
!
=><(
See!example!in!Figure!29!-!Amplifier!Board!W iring.!This!is!the!red!cable!connected!
to!the!positive!(hot)!speaker!output!terminal.!!
!
Wiring!is!now!complete!for!one!of!the!amplifier!PCB.!Repeat!the!process!on!the!
other!amplifier!PCB.!!
!
!
!
