38!
@01$"(A$B-5,(?"--'2%$"-(

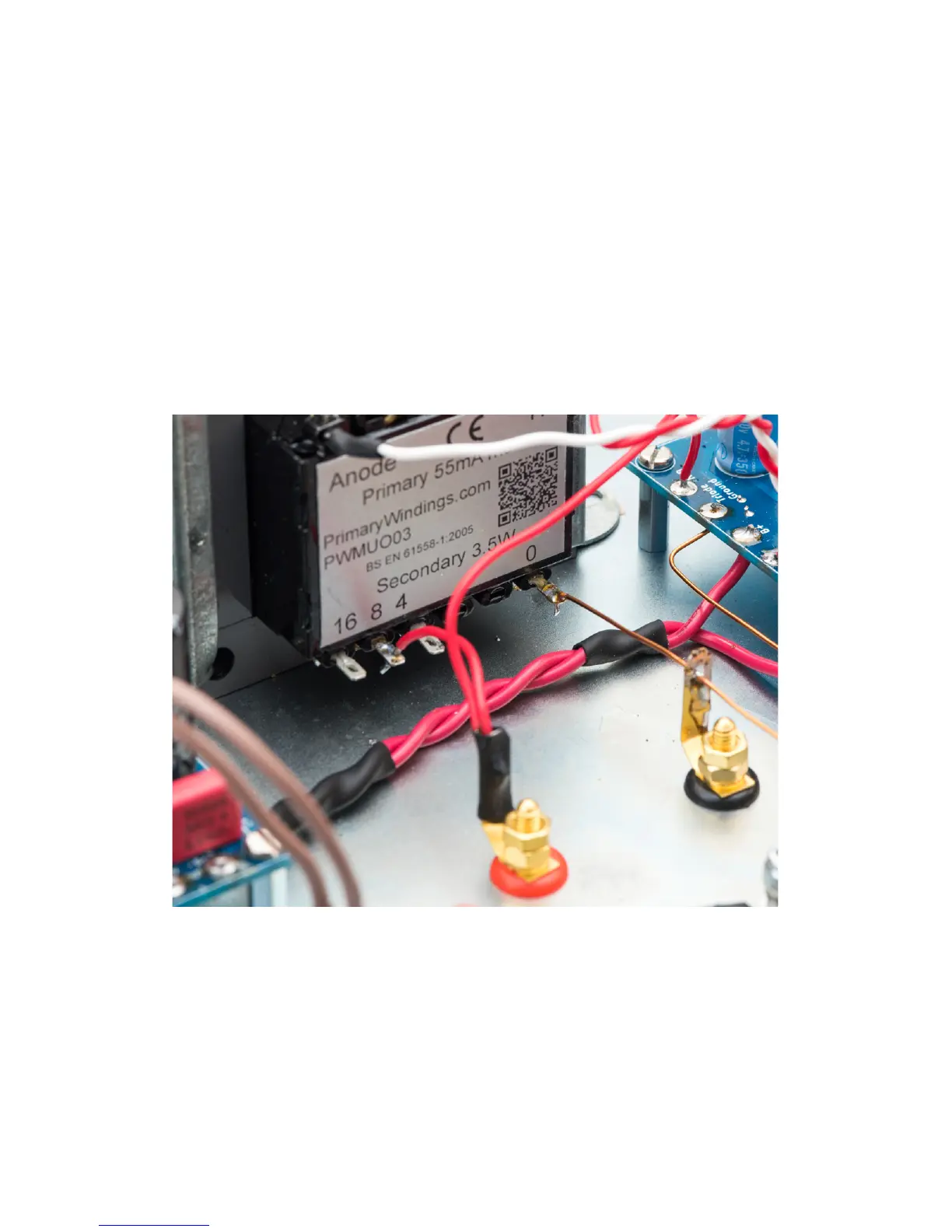

Connect!the!“8”!terminal!on!the!Secondary!winding!of!the!output!transformer!to!
the!positive!(hot)!speaker!terminal.!This!is!the!single!core!insulated!copper!wire!
seen!in!Figure!31!-!connecting!the!output!transform er!to !spea ke r!term ina ls.!!
!
This! is! assuming! that! you! will! be! using! the! 8! ohm! speaker! output! terminal.!
Change!this!to!another!output!impedance!if!necessary.!
!
Note! that! by! now,! there! should! be! another! cable! connected! to! the! speaker!
terminal.!This!is!the!NFB!line,!which!we!dealt!with!in!section:!NFB.!
!
Repeat!the!process!for!the!other!channel.!
!
The!wiring!for!speaker!output!is!now!complete.!
!
!
H9Q,<#(XW(@(N=++#N?9+Q(?P#(=,?O,?(?<*+"L=<$#<(?=("O# *T #<(?#<$9+*&"(
!
!
!
! *
