CALEFFI SATK30103HE User Manual

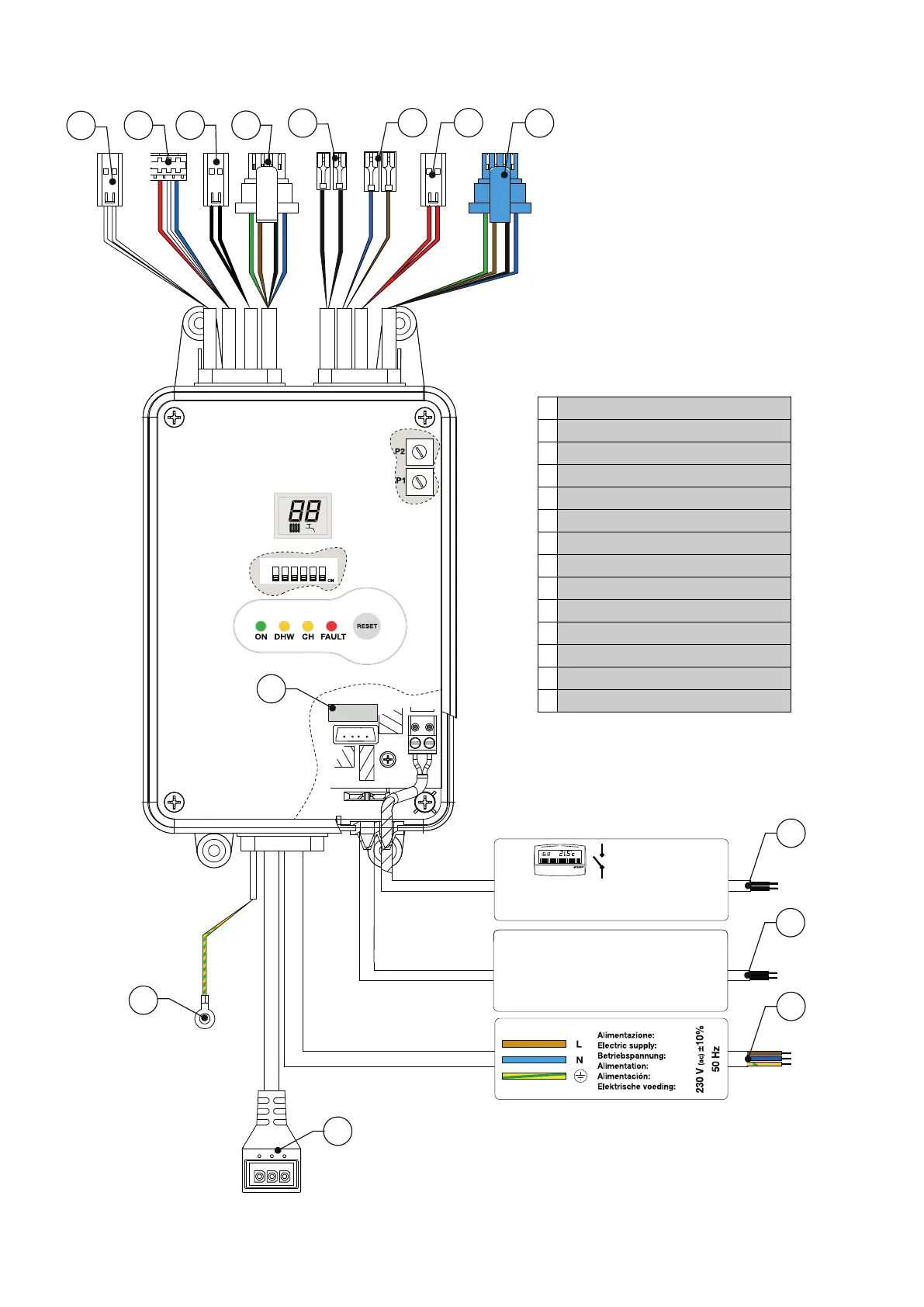

Electric connections
FUSE 5x20
1
2 3
4
6
5
9
10
13
11
12
6 35
4
2
1
14
s5SARESOLOPERCOLLEGAMENTOACOD
s5SETHISWIREFORCONNECTIONTOCODEONLY
s°NgUTILISERQUEPOURLALIAISONAVECCODE
s6ERWENDEN3IEDIESES'ERËTNURZUM!NSCHLUSS
ANDIE!RT.R
s'EBRUIKDEZEENKELVOORAANSLUITINGOPCODE
s5TILICESOLAMENTEPARALACONEXIØNCONCOD
s5SARESOLOPERCOLLEGAMENTOACOD
s5SETHISWIREFORCONNECTIONTOCODEONLY
s°NgUTILISERQUEPOURLALIAISONAVECCODE
s6ERWENDEN3IEDIESES'ERËTNURZUM!NSCHLUSS
ANDIE!RT.R
s'EBRUIKDEZEENKELVOORAANSLUITINGOPCODE
s5TILICESOLAMENTEPARALACONEXIØNCONCOD
7
8
Raumthermostat
(Potenzialfreier Kontakt)
Sonde d’ambiance
(Contact sec)
Termostato de ambiente
(Contacto sin potencial)
Ruimtesensor
(Schoon contact)
Termostato ambiente
(Contatto pulito)
Room thermostat
(Volt free connection)
* Wiring to be made during installation
(Room thermostat not supplied)
(potential-free line)
MAX 30 m
1
DHW temperature probe
2
DHW priority flow meter
3
Flow temp. compensation return probe
4
DHW production valve actuator
5
Thermal safety thermostat
6
Pressure switch
7
Heating flow temperature probe
8
Heating valve actuator
9
Earth
10
Pump
11
Electric supply 230V (ac)*
12
Room thermostat*
13
Fuse
14
HIU enabling
