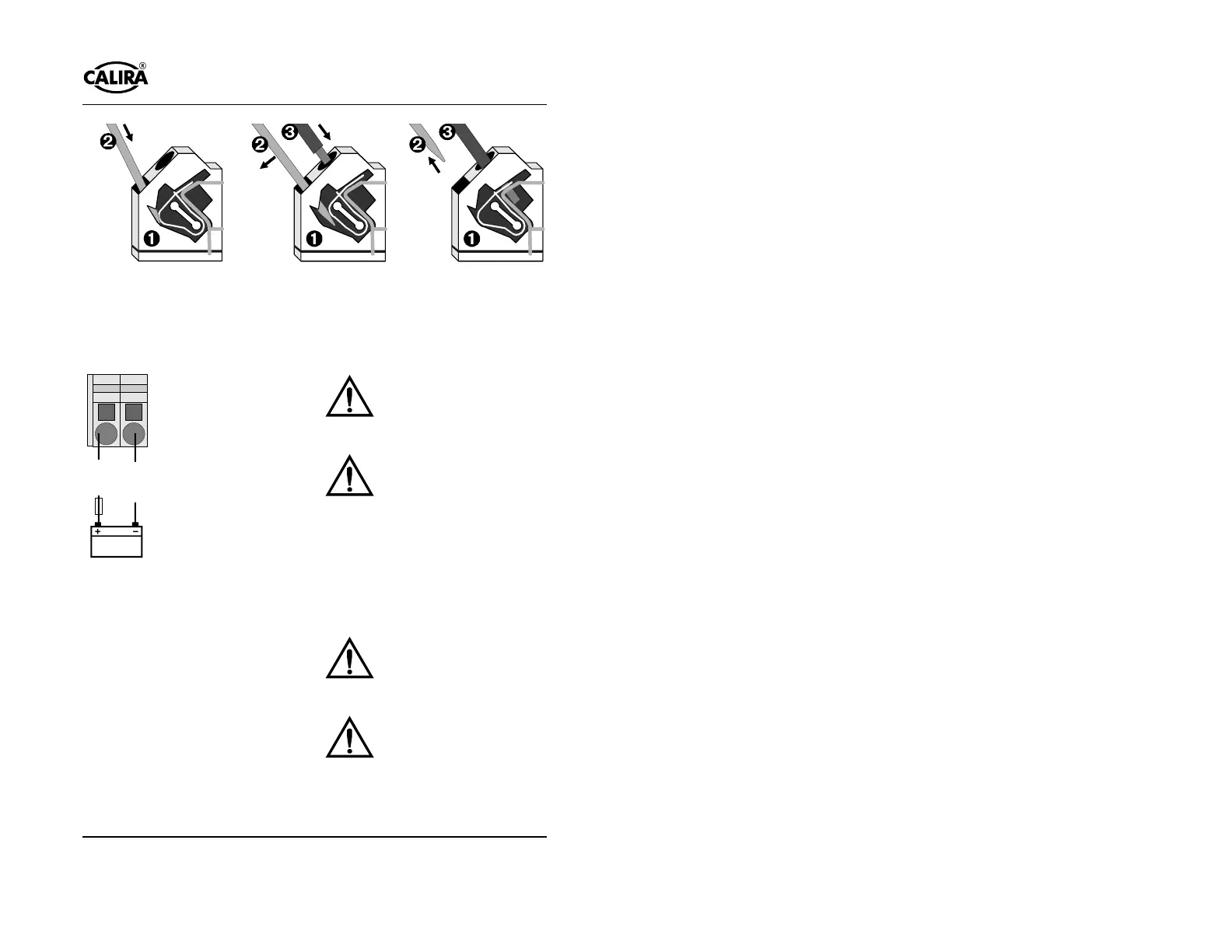

Cage tension spring
clamp
Flat screwdriver
Cable
Connecting the supply battery
+
-
&
'
()*+
,-.
-.
#$%
2/,1
Connect the supply battery to the cage tension spring clamps on
Module B (fig. 3 pos. 1 and fig.7). Cable cross section for
lengths of up to 3m - 6 mm², and from 3m - 10 mm². Ensure
correct polarity connection. The positive charge current
conductor has to be protected with a 40 A fuse near the positive
pole of the supply battery.
' ,,,
/
