THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / PAGE 18
V) INSTALLATION OF SYSTEM ON A FLAT ROOF [300/4.2 model]
The procedure for installing the 300/4.2 model with the dual collectors is identical to the procedure in
the previous chapter except for Step 2 which must be replaced with the following.

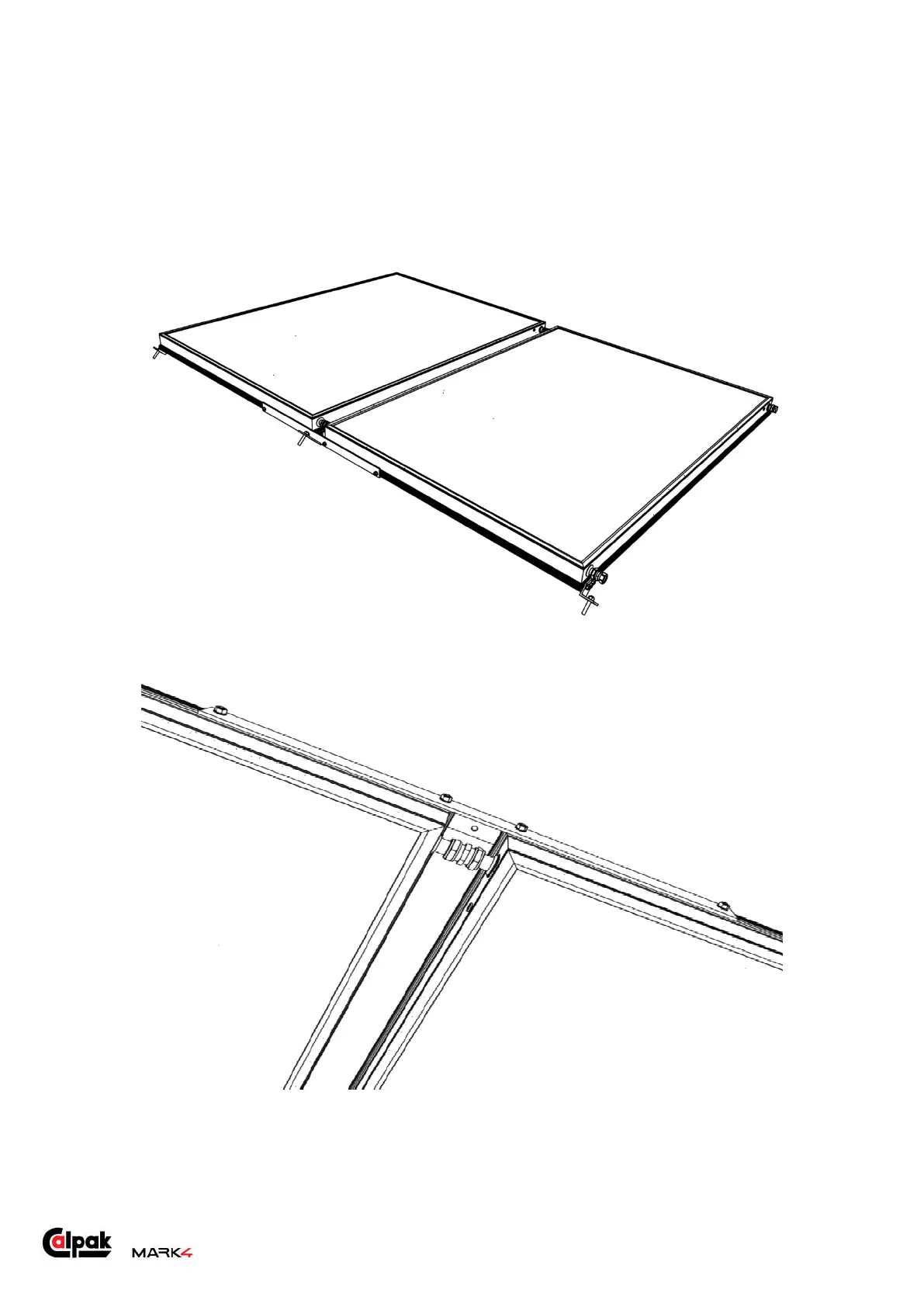

Figure 1: The two collectors ready for installation with top and bottom braces and collector feet
installed.
Figure 2: Top brace and hydraulic connection between the collectors
