THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / PAGE 8
IV) INSTALLATION OF SYSTEM ON A FLAT ROOF [All models except 300/4.2]
STEP 1

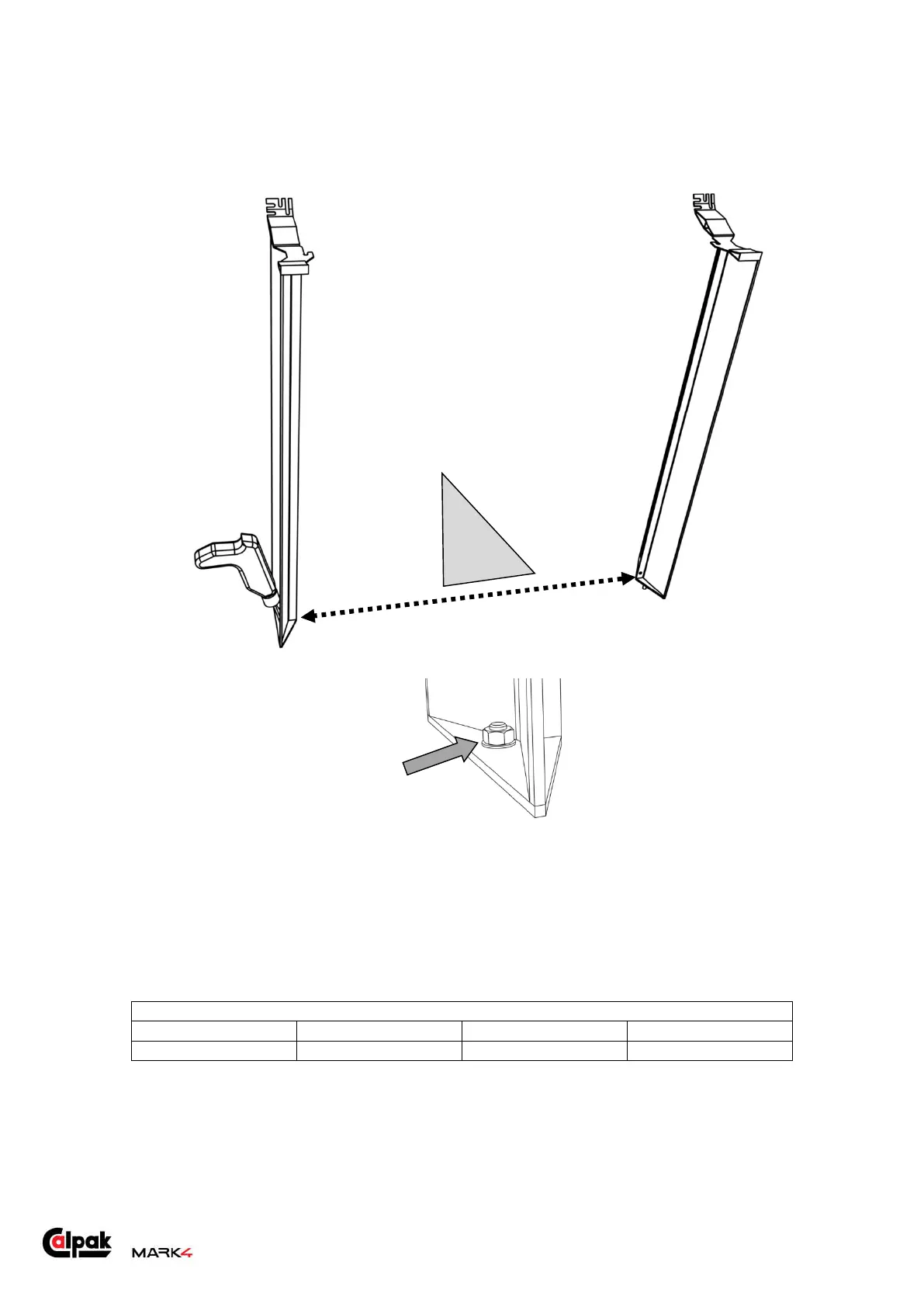

Install the tank support pillars at a distance A according to Table A. To ease installation, drill the roof
floor at an angle of approximately 10-15 degrees. Follow the instructions for positioning the system in
Chapter III. Use fasteners of appropriate length and type to ensure that the pillars and all base
components are secured onto the structural layer of the roof and not on the insulation. Use an
appropriate sealing material to prevent moisture from penetrating the roof material.
TABLE Α
TANK 125/160 L 200 L 300 L
DISTANCE A [mm] 1192 1480 1944
SOUTH
