THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / PAGE 9
STEP 2

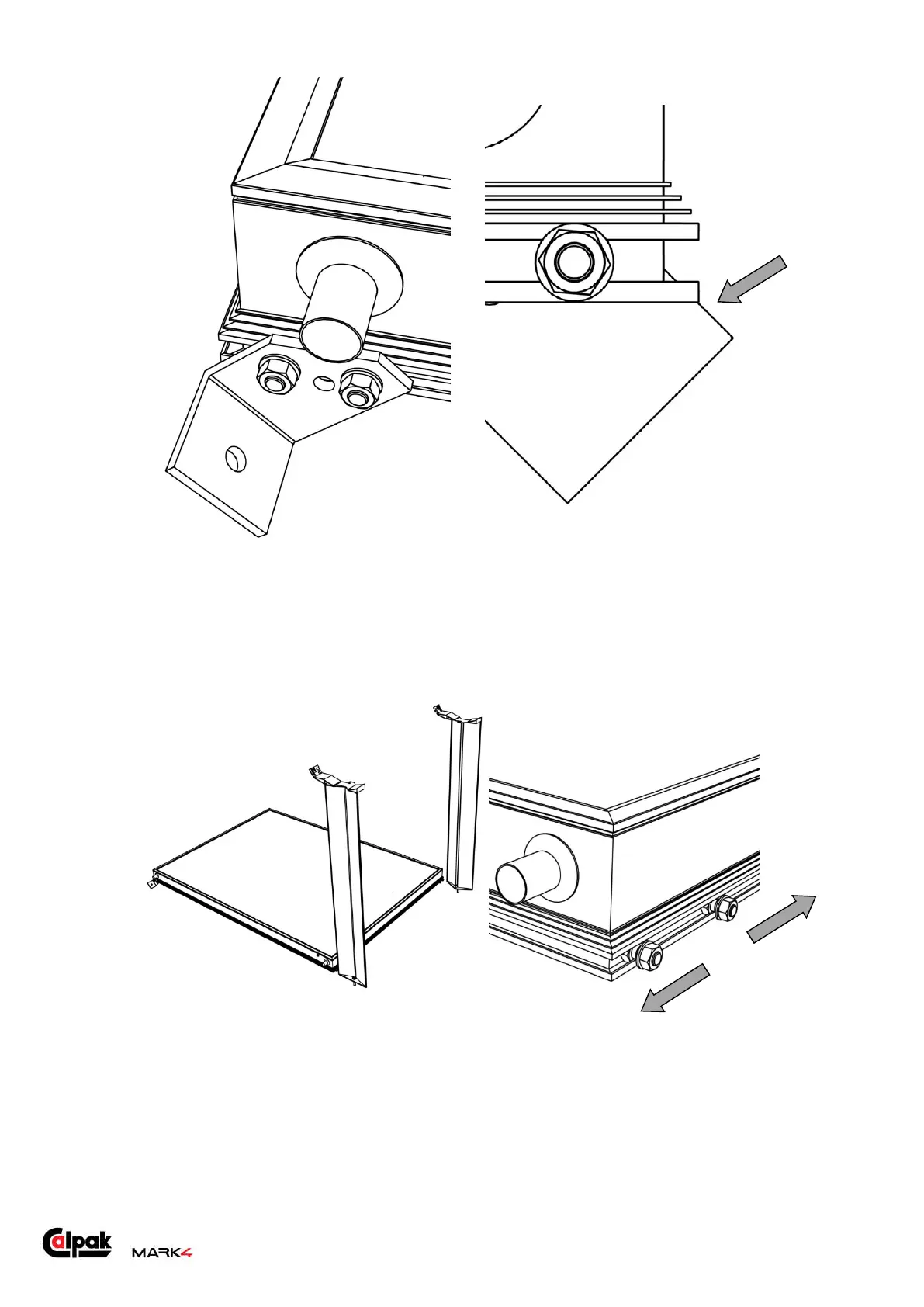

Attach the two feet at the lower part of the collector. Consult the drawing above for their positioning
relative to the collector as it affects the accuracy of the installation.
IMPORTANT: DO NOT REMOVE COLLECTOR COVER SHEET BEFORE CONNECTING THE SYSTEM!
STEP 3
Place the collector on the roof floor in front of the pillars as shown above.To ease next step slide the
collector securing bolts so that they are approximately in line with the slots on the pillars.
