THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / PAGE 10

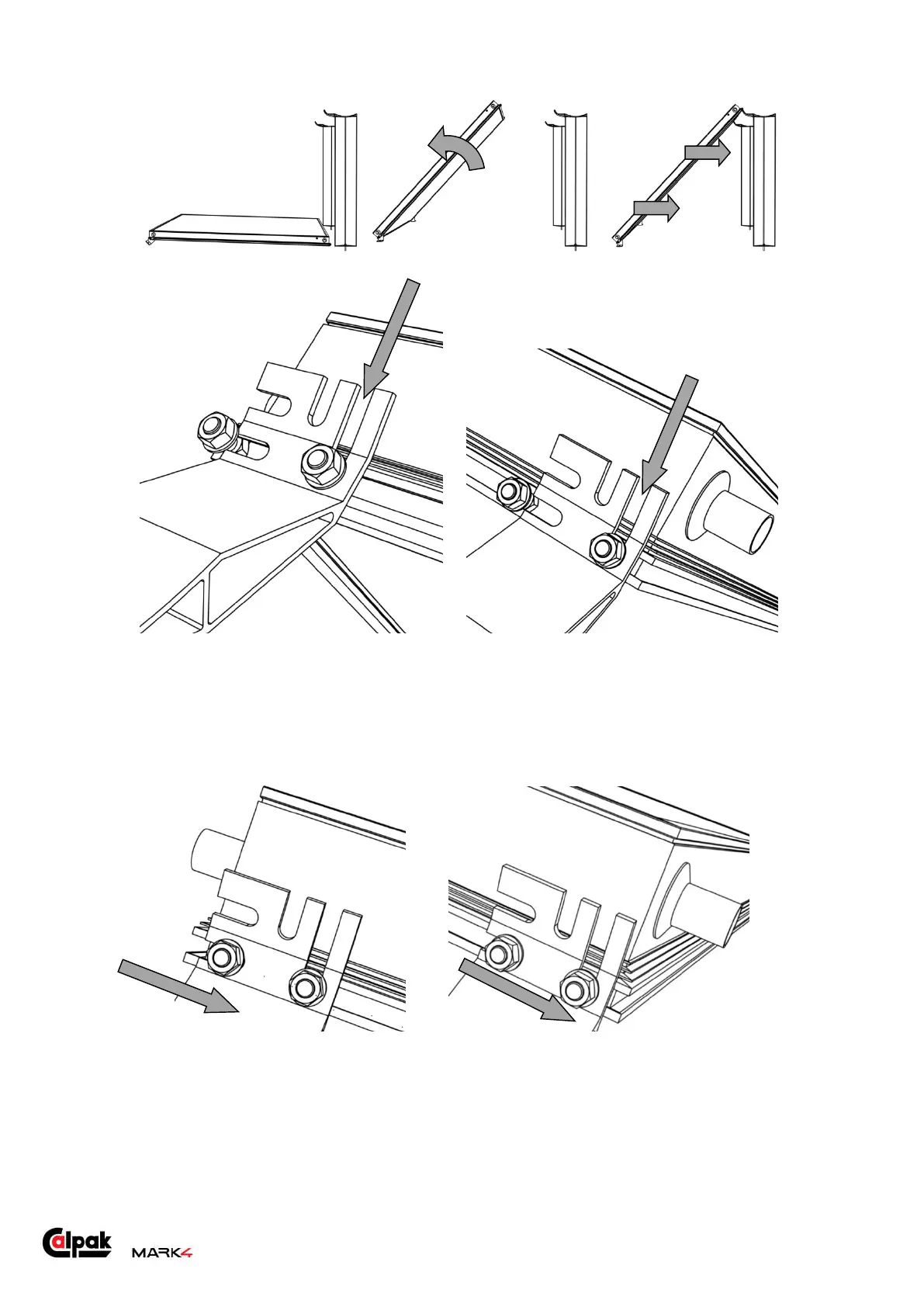

Upper right side of the collector Upper left side of the collector
STEP 4
Lift the collector from the side close to the pillars at an angle of approximately 45 degrees. Move the
collector towards the pillars. Insert the securing bolts into the vertical slots of the pillars.
Upper right side of the collector Upper left side of the collector
STEP 5
Slide the remaining two securing bolts into the horizontal slots of thepillars.
