THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / PAGE 24
STEP 5

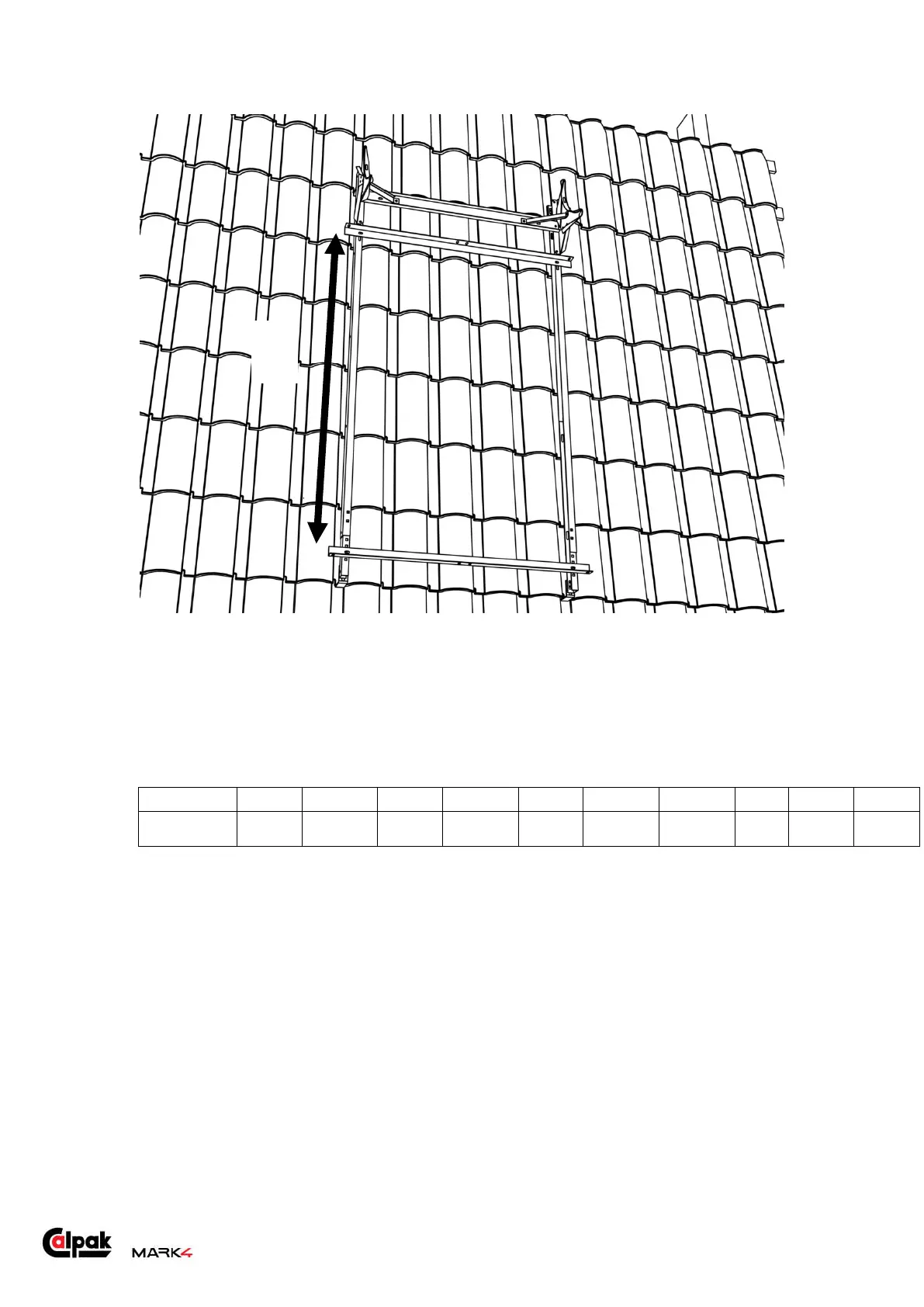

Install the two L beams supporting the collector. The distance C between the vertical mounting faces
of two beams should be set according to Table 2 to fit the height of the collector. Secure only the
bottom beam and slide the top beam upwards to ease collector installation.
TABLE 2
SYSTEM 125/2.1 160/2.1 160/2,6 160/2,6H 200/2,1 200/2,6 200/2,6H 200/3 300/3H 300/4.2
DIMENSION C
(mm) 1711 1711 2025 1244 1711 2025 1244 2011 1514 1711
