THERMOSIPHONIC SOLAR WATER HEATERS / TECHNICAL DOCUMENTATION / PAGE 27

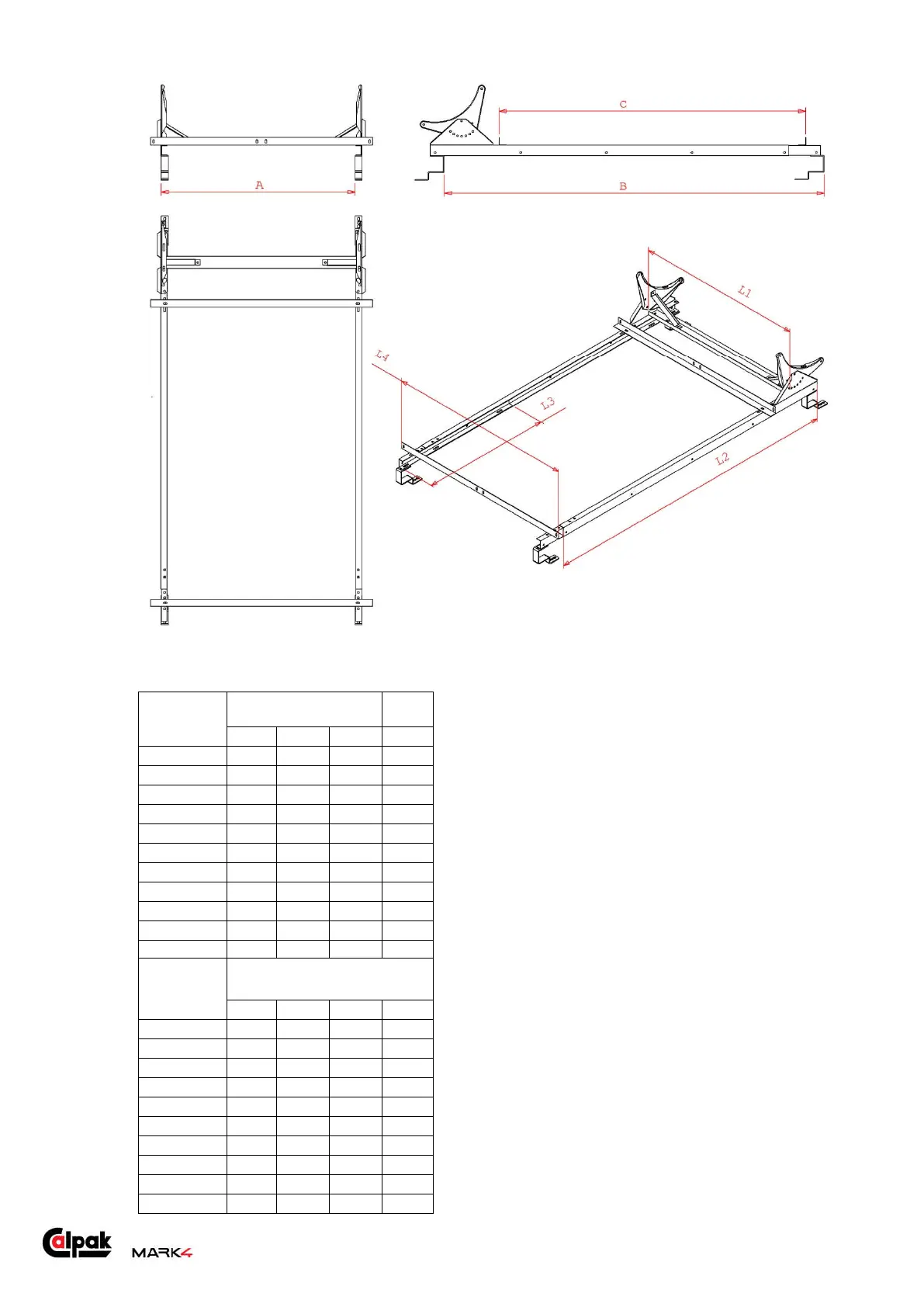

Figure 2: Installation and base system dimensions.
SYSTEM
INSTALLATION
DIMENSIONS /
A B C
125/2,1 1082 2120 1711
160/2,1 1082 2120 1711
160/2,6 1082 2475 2025
160/2,6H 1082 1765 1244
200/2,1 1370 2120 1711
200/2,6 1370 2475 2025
200/2,6H 1370 1765 1244
200/3 1370 2475 2011
300/3H 1834 2120 1514
300/4,2 1834 2120 1711
SYSTEM
BASE DIMENSIONS
L1 L2 L3 L4
125/2,1 1116 1600 866 1240
160/2,1 1116 1600 866 1240
160/2,6 1116 2000 866 1240
160/2,6H 1116 1200 866 1560
200/2,1 1404 2000 866 1240
200/2,6 1404 2000 866 1240
200/2,6H 1404 1720 866 1560
200/3 1404 2000 866 1560
300/3H 1868 1600 866 2000
300/4,2 1868 1600 866 2000
