Cambium Networks PMP 450b Planning And Installation Guide

Chapter 5: Installation Installing external antennas to a connectorized
ODU
Page 29
4

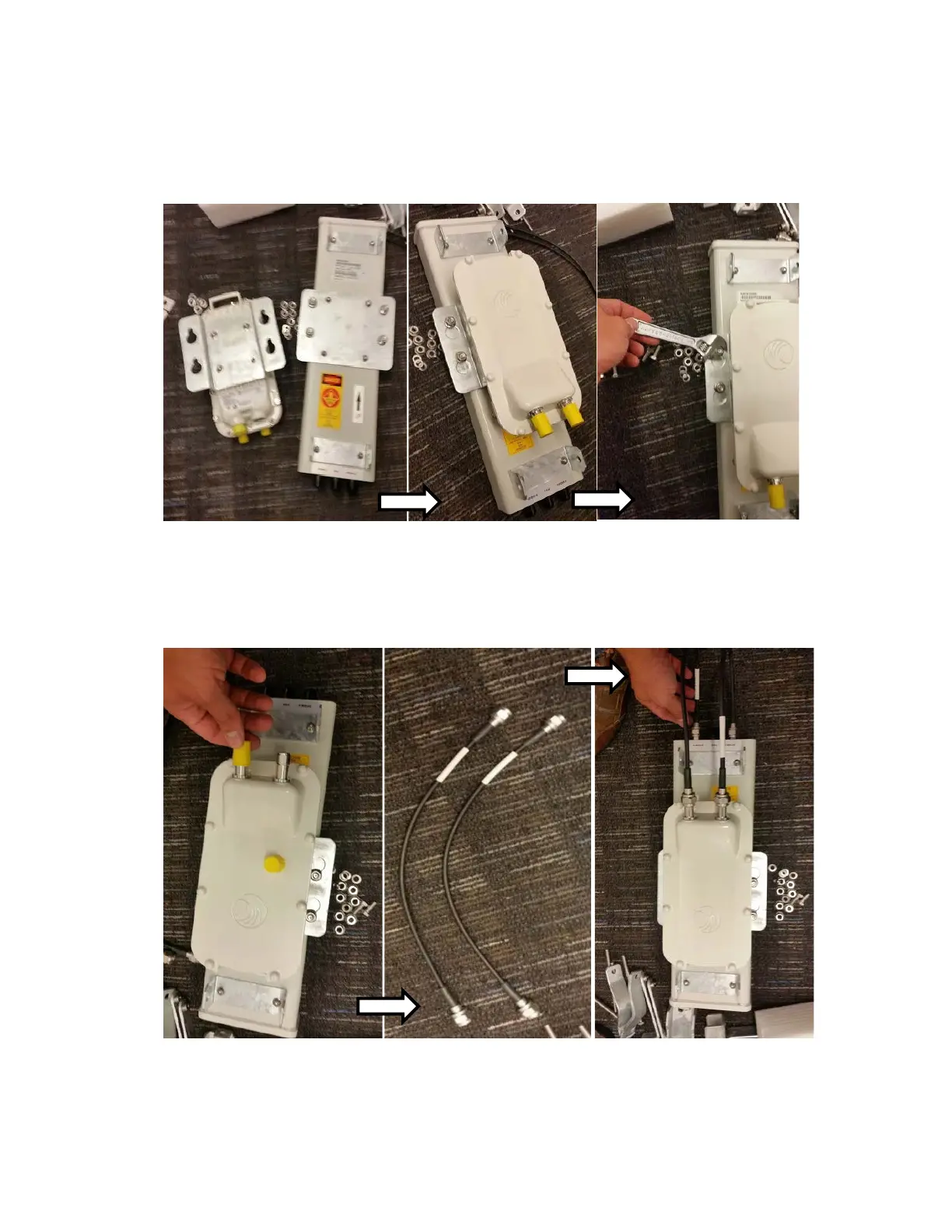

Attach the plate mounted AP to the antenna and tighten the (4) serrated flange nuts using a
spanner wrench
Figure 87 Attaching the plate
5
Connect the port A of AP to vertical and port B of AP to horizontal polarization interfaces of
the antenna with RF cable. Tighten the N type connectors to a torque setting of 1.7 Nm (1.3 lb
ft).
Figure 88 Connect the port A and B to the PMP 450i AP

Cambium Networks PMP 450b Specifications

General

Category	Wireless Access Point
Channel Width	5, 10, 20, 40 MHz
Maximum Throughput	200 Mbps
Maximum EIRP	30 dBm
Antenna	Integrated or external
Ethernet Ports	1 x 10/100/1000 Mbps
Interface	Ethernet
PoE	802.3at
Modulation	256 QAM
Range	Up to 40 miles (64 km)
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
