CAMDEN CX-12 User Manual
5
of 1
of 1 rating
10 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

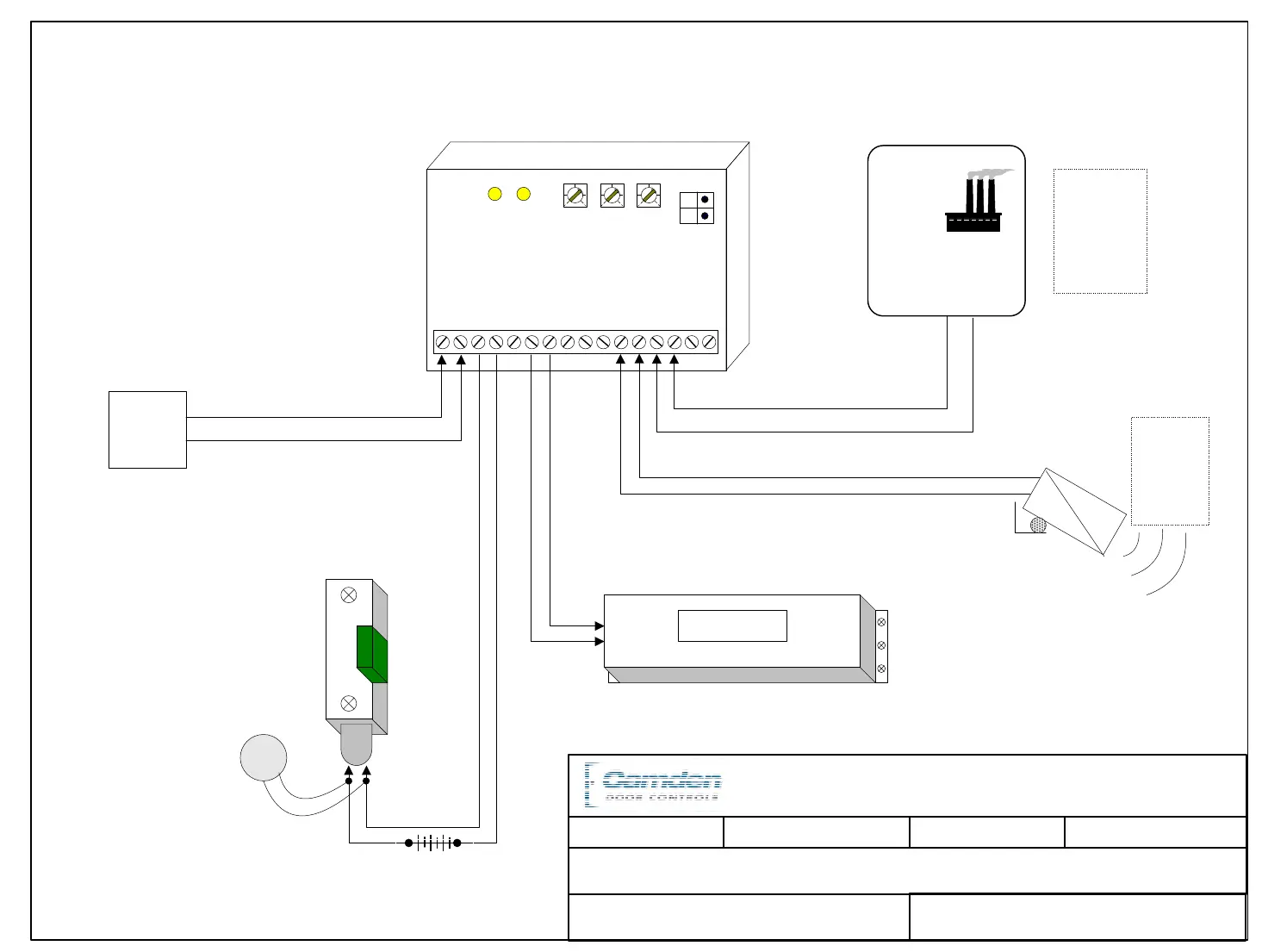

FILENAME:
CX_12 Diagram 2a.vsd
DRAWING No: DRG-CX12-02a
CX-12 Application
Diagram (wit
h Maintained Operator output)
SCALE: NONE
DRAWN BY: DGW
REVISED:
DATE: 11/16/09
Camden Manufacturing
5502 Timberlea Blv
d.
Mississauga, Ontario
L4W 2T7
12 -
24 V
AC/DC
Power
Electric Stri
ke
Door Operator
MOV
Wire MOV
(supplied)
directly to str
ike
or magnet
Power
for Strike
Fire Alarm
Panel
Shown with
maintained
& powered
signal (Wet)
Presence
Sensor
(Dry
contact
output)
FIRE
(If Mag lock
used, wire to
Terminals 4 & 5)
1
5
2
3
4
6
7
8
9
10
11
12
13
14
15
16
RL1
LED
RL2
LED
DOR
RL1
DOO
RL2
DOR
RL2
Off / On
1
2
CX-12
5
7
Table of Contents
General Description
1
Installation
1
Mounting
1
Wiring
1
Applications & Set-Up Instructions
2
Standard Timer Mode
2
Extended Trigger Mode – Relay 2
2
Bi-Directional Sequencing MODE
2
System Inspection Instructions
3
Technical Data
3
Warranty
3
CX-12 Application Diagram (Typical Momentary Operation)
5
CX-12 Application Diagram (with Maintained Operator Output)
6
CX-12 Application Diagram (with Maintained Lock Output)
7
CX-12 Application Diagram for Apartment (Typical)
8
CX-12 Application Diagram for Apt. (with Vestibule Keyswitch)
9
CX-12 Application Diagram (Bi-Directional Sequencer Operation)
10
