CAMDEN CX-12 User Manual

FILENAME: CX_12 Diagram 2b.vsd
DRAWING No: DRG-CX12-02b

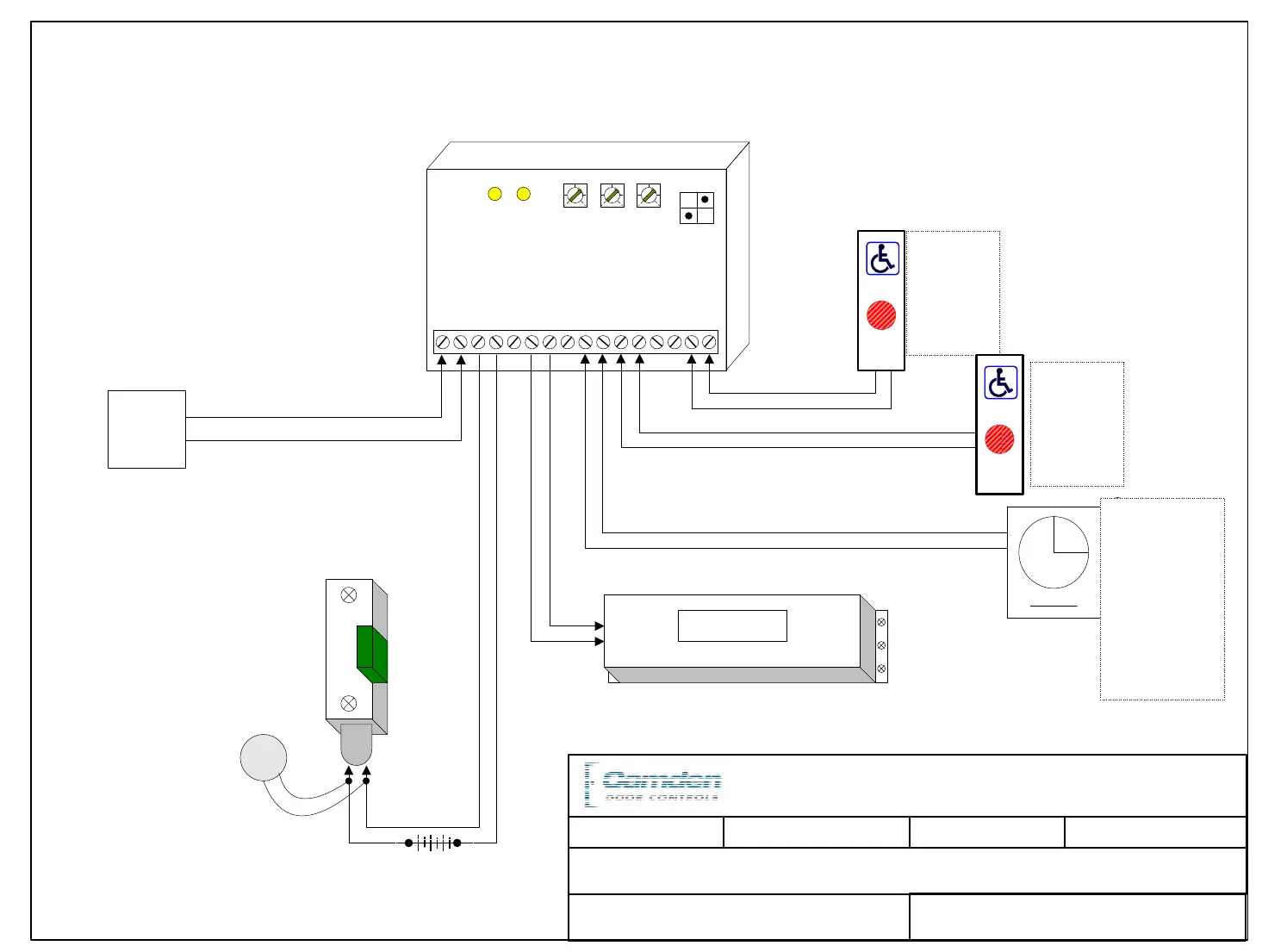

CX-12 Application Diagram (with Maintained Lock Output)
SCALE: NONE DRAWN BY: DGW REVISED: DATE: 11/16/09
Camden Manufacturing
5502 Timberlea Blvd.
Mississauga, Ontario
L4W 2T7
12 - 24 V
AC/DC
Power
Electric Strike
Door Operator
MOV
Wire MOV
(supplied)
directly to strike
or magnet
Power
for Strike
Exterior
Switch
(in circuit
only while
Lock Relay
is active)
(If Mag lock
used, wire to
Terminals 4 & 5)
1 52 3 4 6 7 8 9 10 11 12 13 14 15 16
RL1
LED
RL2
LED
DOR
RL1
DOO
RL2
DOR
RL2
Off / On
1
2
CX-12
Interior
Switch
(Always
unlocks
and opens
door.
C
Access Control
or
Time Clock
Sends a
powered &
maintained
signal
to keep door
unlocked for
desired time.
