Lazerpoint™ RF RX-90 Advanced Single Relay Receiver Installation Instructions
ON
1
POT1
SW1
PB1
OP TIME LATCH
12/24V
AC/DC
POWER
NC
COM
NO
PB1
DELAY NO DELAY
RX-90
Door Operator #1
TO OPEN
PUSH
Switch
& TX-9

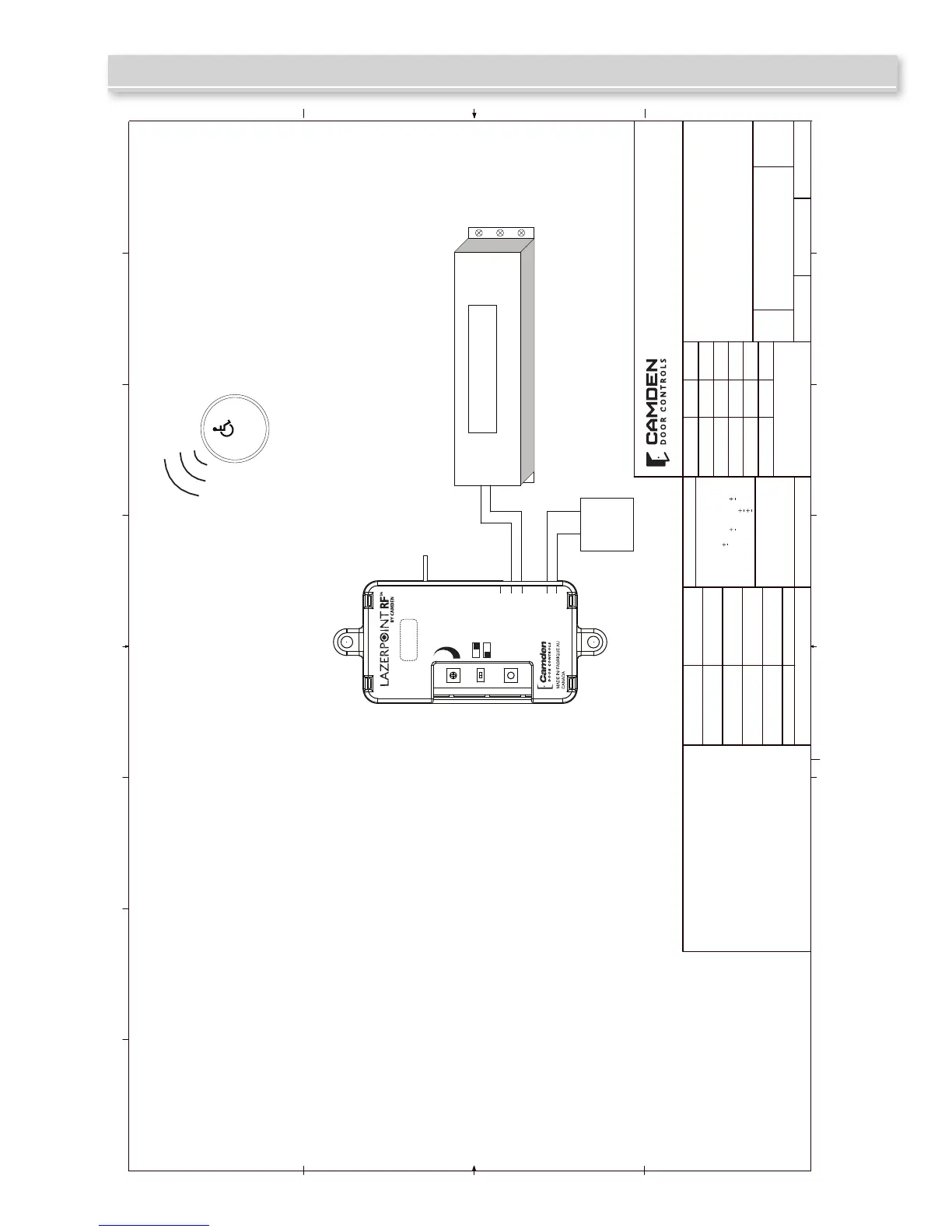

CM-RX-90 Basic Wiring Diagram
CM-RX-90_Wiring_1.ai
JLEWIS 09/14/17
A
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
NEXT ASSY
USED ON
APPLICATION
MATERIAL
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
DATE
NAME
TITLE:
SIZE
B
DWG. NO.
REV
SCALE: 1:1
UNLESS OTHERWISE SPECIFIED:
SHEET 1 OF 1
DO NOT SCALE DRAWING
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
1/64
ANGULAR: MACH
0.5
BEND
TWO PLACE DECIMAL
0.010
THREE PLACE DECIMAL
0.005
PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF CAMDEN DOOR CONTROLS. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF CAMDEN DOOR CONTROLS IS PROHIBITED.
5502 Timberlea Blvd. Mississauga, ON Canada
L4W 2T7
Tel: (905) 366-3377
www.camdencontrols.com
D
C
B
A
B
C
D
12 - 24 V
AC/DC Power
Programming Transmitters into the Receiver: Learning the Transmitter in Delayed Mode Step 1 - Set SW1 to ON. Step 2 - Press the PB1 button using a small blunt object such as a small blade screwdriver or similar. Within 10 seconds, press the switch connected to a TX-9 transmitter or a button on a Lazerpoint FOB. The Green LED Array will ash to conrm enrolment. Step 3 - Repeat with any additional transmitters. Step 4 - Pressing the learned transmitter again will signal the receiver that you are nished programming and the LED will ash rapidly. If you wait longer than the 10 second period, the receiver will time out of Learn Mode and revert back to standby. Learning the Transmitter in No-Delay Mode Step 1 - Set SW1 to OFF Step 2 - Press the PB1 button using a small blunt object such as a small blade screwdriver or similar. Within 10 seconds, press the switch connected to a TX-9 transmitter or a button on a Lazerpoint FOB. The Green LED Array will ash to conrm enrolment. Step 3 - Repeat with any additional transmitters. Step 4 - Pressing the learned transmitter again will signal the receiver that you are nished programming and the LED will ash rapidly. If you wait longer than the 10 second period, the receiver will time out of Learn Mode and revert back to standby.
Grey
Blue Red
Red
Page 5 of 7
