CAME AXI Series User Manual

❶
❷
󱤎
󱤏
p. 11 - Manual FA01007-EN - v. 1 - 10/2017 - © CAME S.p.A. - "Translated original instructions"

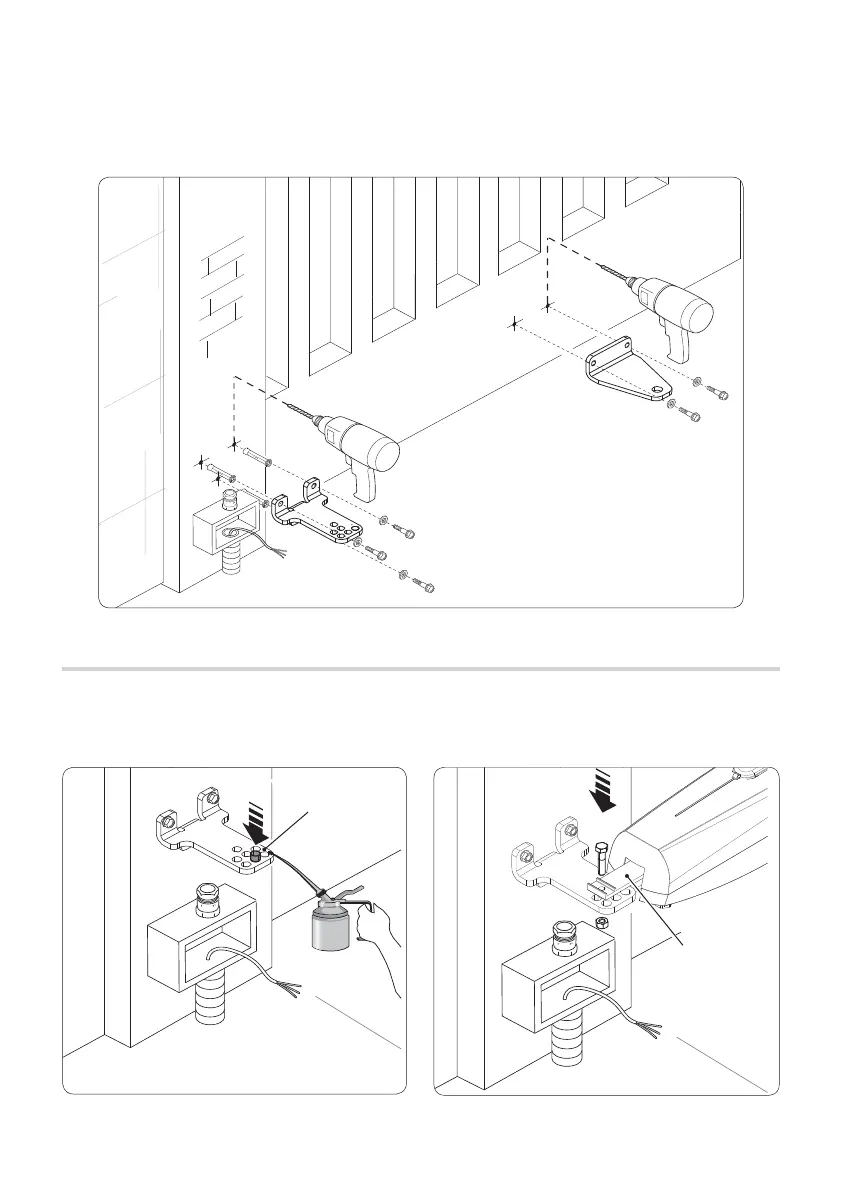

FASTENING THE GEARMOTOR
Lubricate the bushing 󱤎 and fit it into one of the holes on the post bracket.
Fasten the joint to the post bracket 󱤏 using the M8 x 35 bolt and UNI 7474 M8 nut.
Fasten the bracket to the post ❶using suitable anchors and screws. If the post is made of metal, the bracket
can be welded to it.
Note: the holes on the bracket are for further opening angle variations of the gate leaf.
Fasten or weld the bracket to the gate ❷ .
