p. 12 - Manual FA01007-EN - v. 1 - 10/2017 - © CAME S.p.A. - "Translated original instructions"
⚠ DO NOT REMOVE cover 1 without fi rst sliding it.

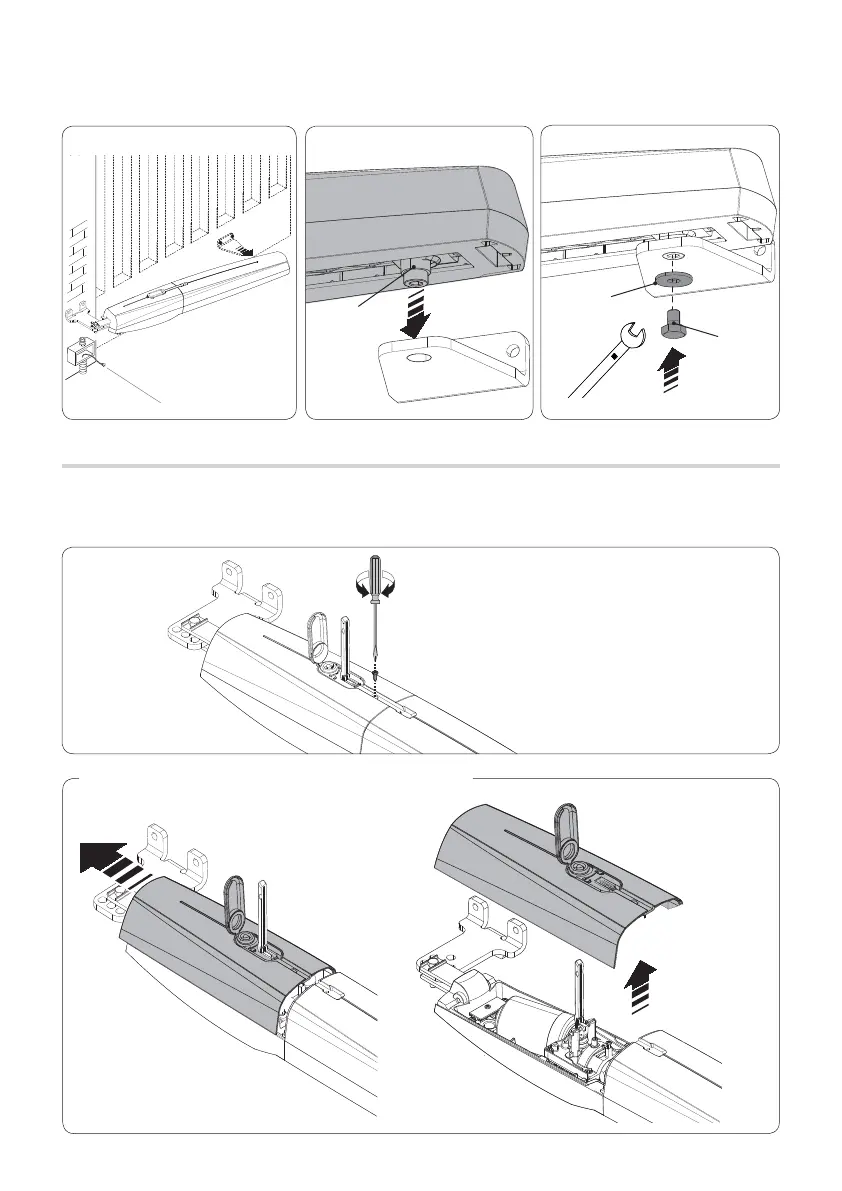

ESTABLISHING THE LIMIT-SWITCH POINTS
Before establishing the endstop points, you need to: release the gearmotor (see paragraph on manually releasing
it) and remove covers 1 and 2 while carefully following the illustrations.
Open the gate leaf
(the grub screws on the mechanical stops are loose) and fi t the pin 󱤎 into the gate bracket.
Fasten using the UNI6593 washer Ø 10 and the supplied UNI 5739 M10 X 10 bolt
b󱤐.
