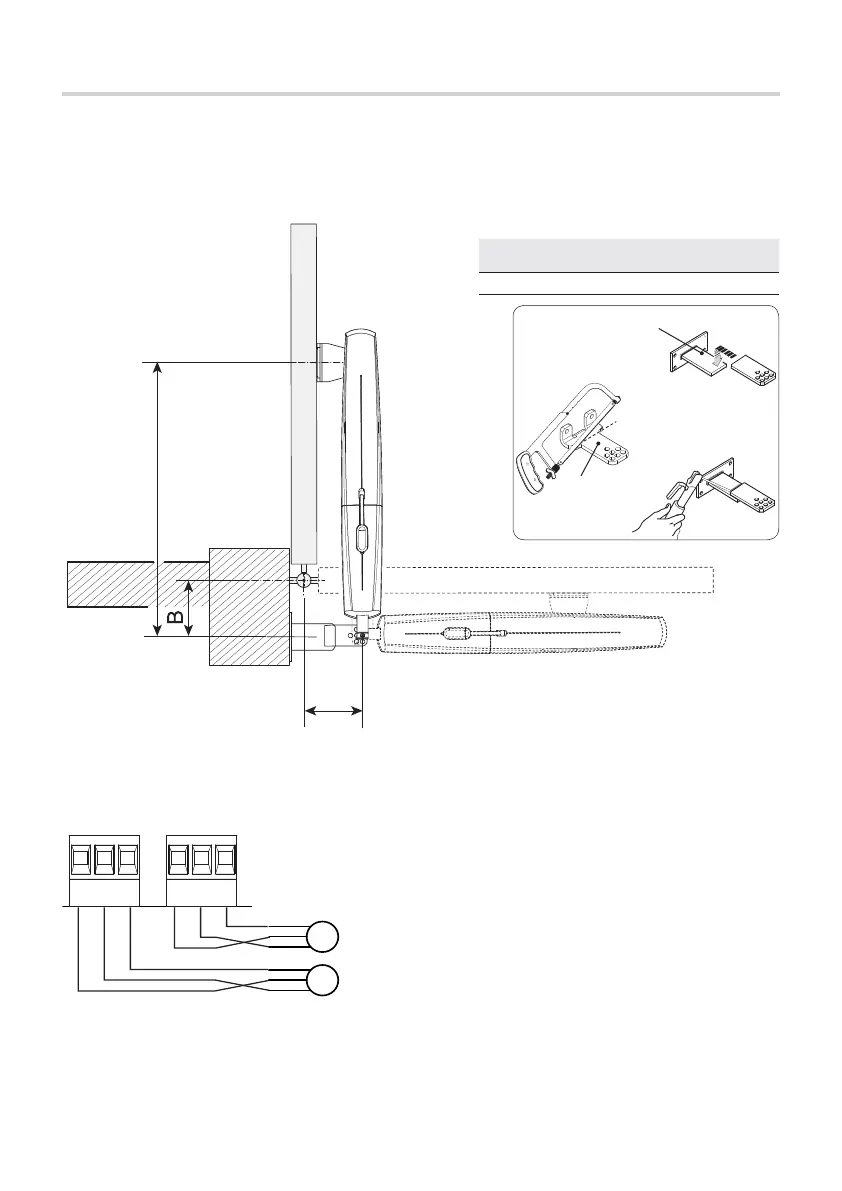

CAME AXI Series - OUTWARD OPENING CONFIGURATION; Quotas and Bracket Fastening for Outward Opening; Electrical Connections for Outward Opening

E
A
󱤎
󱤏
M1 N1 ENC1
M2 N2 ENC2
M
M
p. 15 - Manual FA01007-EN - v. 1 - 10/2017 - © CAME S.p.A. - "Translated original instructions"
Gearmotor with encoder (M2) 24 V DC, delayed when opening.
Gearmotor with encoder (M1) 24 V DC, delayed when closing.
Make the necessary electrical connections as shown in the figure.
Opening A B E
(°) (mm)
90 130 130 750
CONNECTION FOR OPENING OUTWARDS
⚠Establish the quotas A and B.
Cut and fasten post bracket 󱤎 by supplementing it with an additional bracket b
(not issued).
Open the gate (max 90°), establish the quota E and establish the gate bracket fastening point. Fasten the bracket.
