CAME GARD PX Series User Manual

p. 14 - Manual FA01313-EN - 02/2019 - © CAME S.p.A. - The contents of this manual may change, at any time, and without notice. - Original instructions

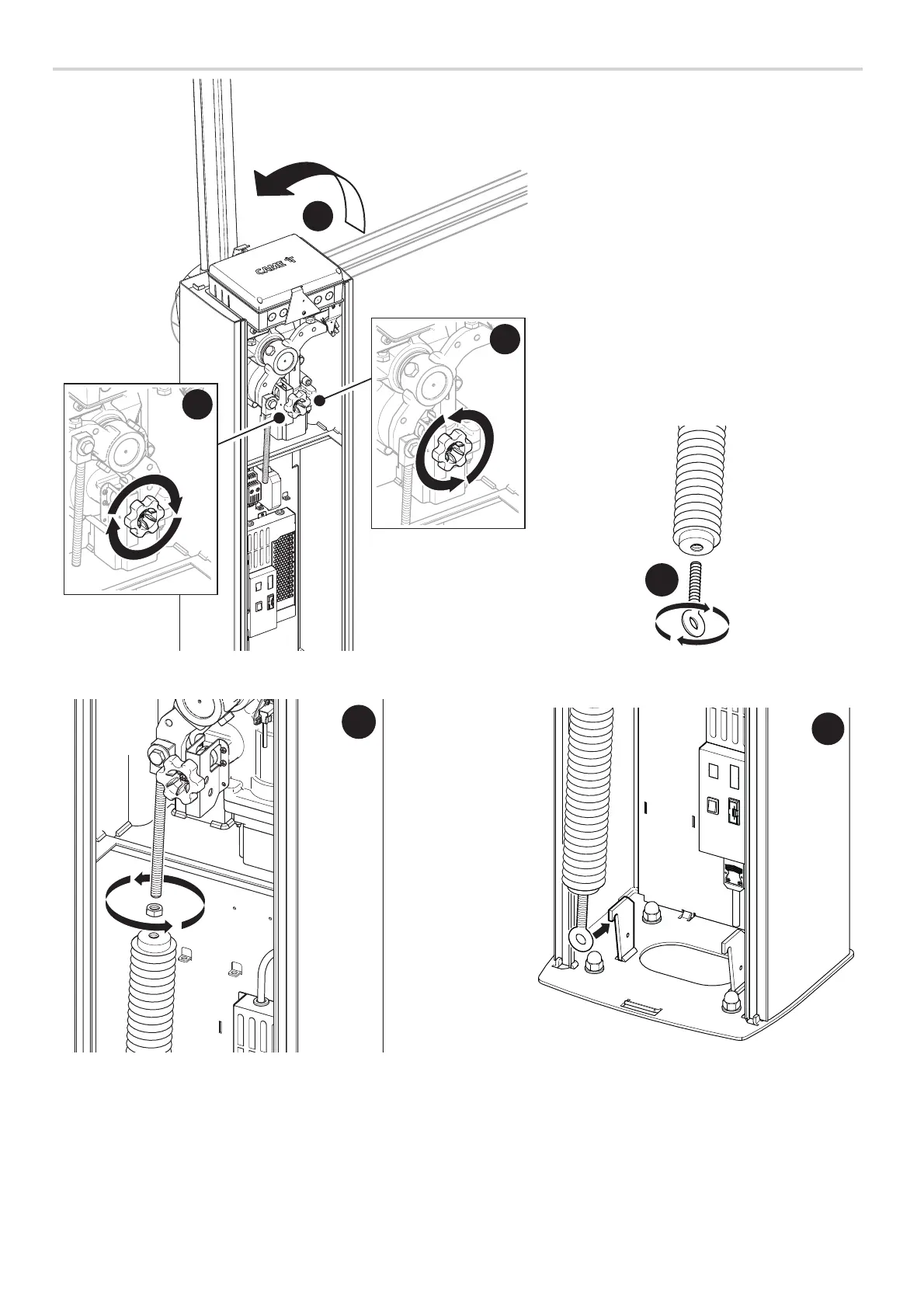

Balancing spring assembling
3
2
1
1 - Release the gearmotor
2 - Position the boom vertically.
3 - Lock the gearmotor
4 - Tighten the eyelet tie rod to the lower part of the spring
5 - Screw the spring to the anchoring pin
6 - Hook the eyelet rod to the anchoring rod
4
5
6
