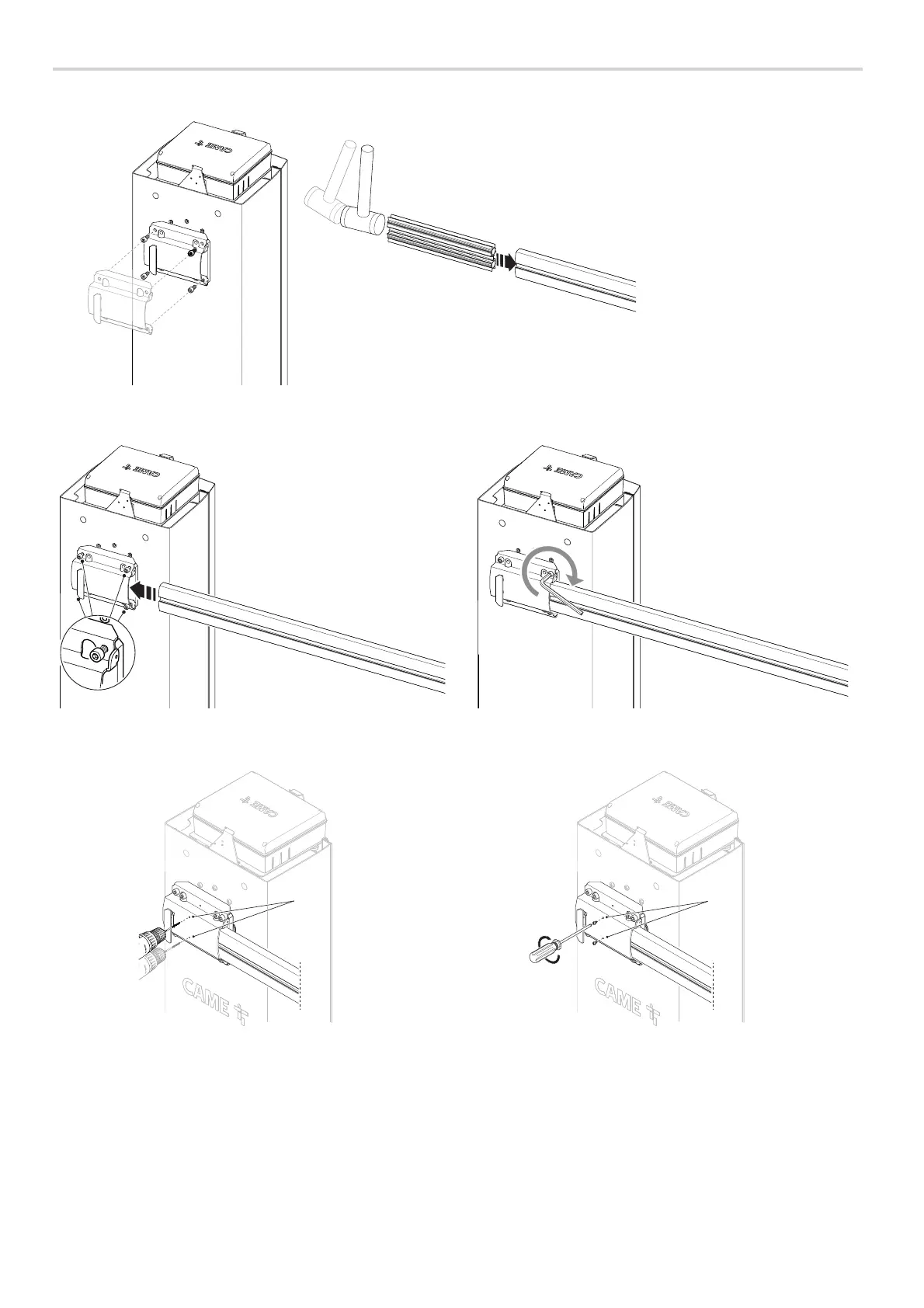

Boom installation
Insert the reinforcement inside the boom.
Install the boom-attachment cover on the anchoring plate. Leave the screws slightly loose for easier fitting of the boom later.
Fit the boom into the fastening flange
Tighten the screws firmly.
Drill the fastening flange.
Fasten the boom with the screws.
Ø 4
UNI6954
4.8x13
