Cameron Demco - Page 4

4
TC-003001-01 / Rev 2

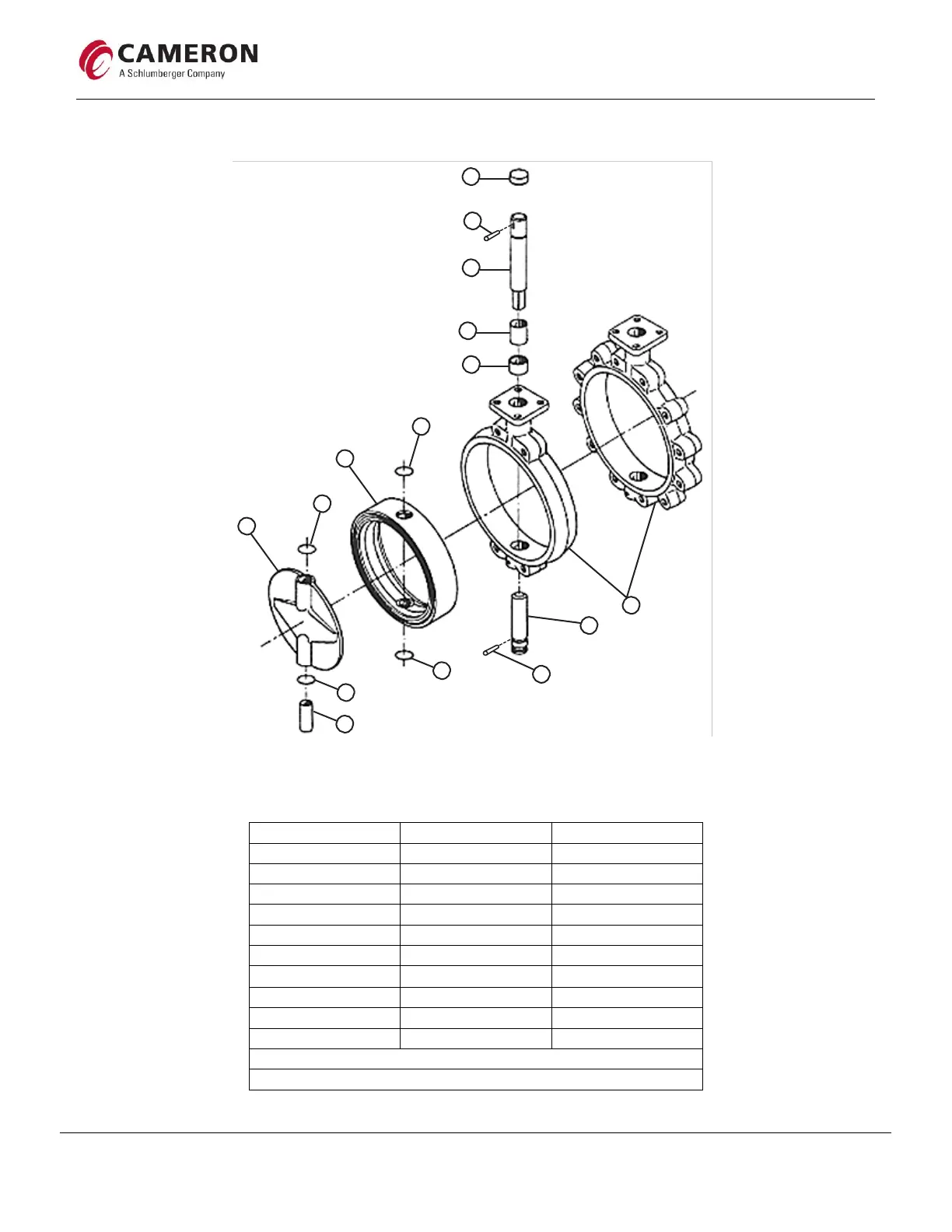

Figure 2 - DEMCO 14" through 36" Resilient Seated Butterfly Valve
Table 2 - DEMCO 14” through 36” Parts List
Item
Qty.
Description
1
1
Body
2
1
Seat
3
1
Disc
4
1
Upper Stem
6
1
Lower Stem
7
2
Spring Pin
14
1
Retainer**
23
*
Stem O-Ring
24
2
Upper Bearing
25
1
Lower Bearing
* 4 required for throttling valves only.
** 24” – 36” spacer.
24
7
4
14
24
23
2
3
7
6
1
23
23
23
25
