18

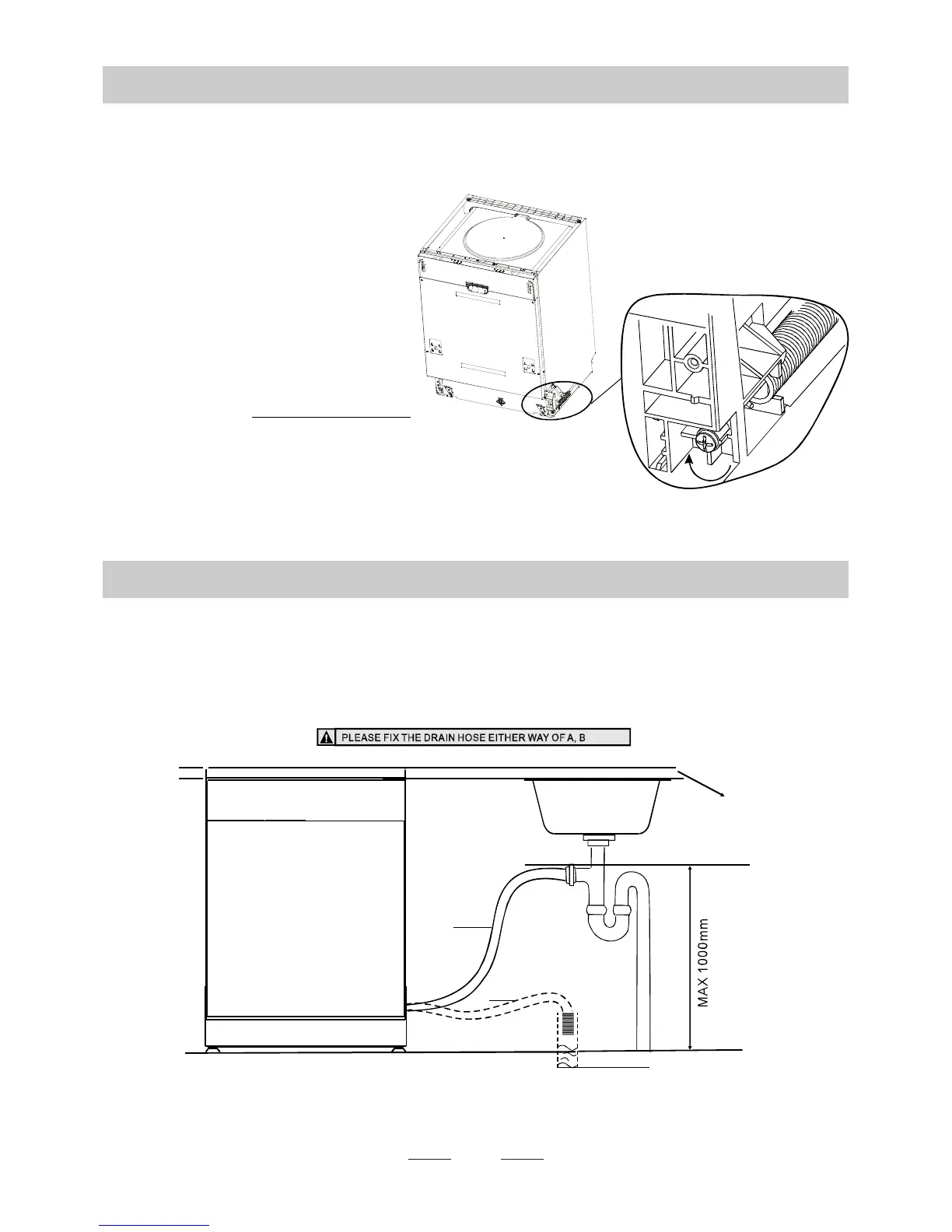

Tension adjustment
of the door spring
【Figure
5】
Tension adjustment of the door spring
●
Connection of drain hoses
●
The door springs are set at the factory to the proper tension for the outer door. If aesthetic
wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting
screw to drive the adjustor to strain or relax the steel cable(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fully opened position，yet rises
toaclosewiththeslightliftofa
finger.
Insert th e drai nh ose into a d rain p ipe with a m inimum di am eter of 4 0mm, or l et i t run int o the sink, mak ing sur e to
avoid bendingor crimping it. The topof the hosemust belessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be l ess than
1000mm.
φ 40mm
B
