9
SPECIFICATIONS
SPECIFICATIONS
TORQUE SPECIFICATIONS
The table below contains the recommended torque
specifications according to bolt size and grade.
CAUTION: Some bolts in the Track System
assembly have a specific torque specification.
Refer to the exploded views at the end of the
Manual to obtain the exact torque specifications
applied to these bolts.
NOTE: Use a thread locker (Loctite 262 type or its
equivalent) at indicated places in the exploded
views of the system.

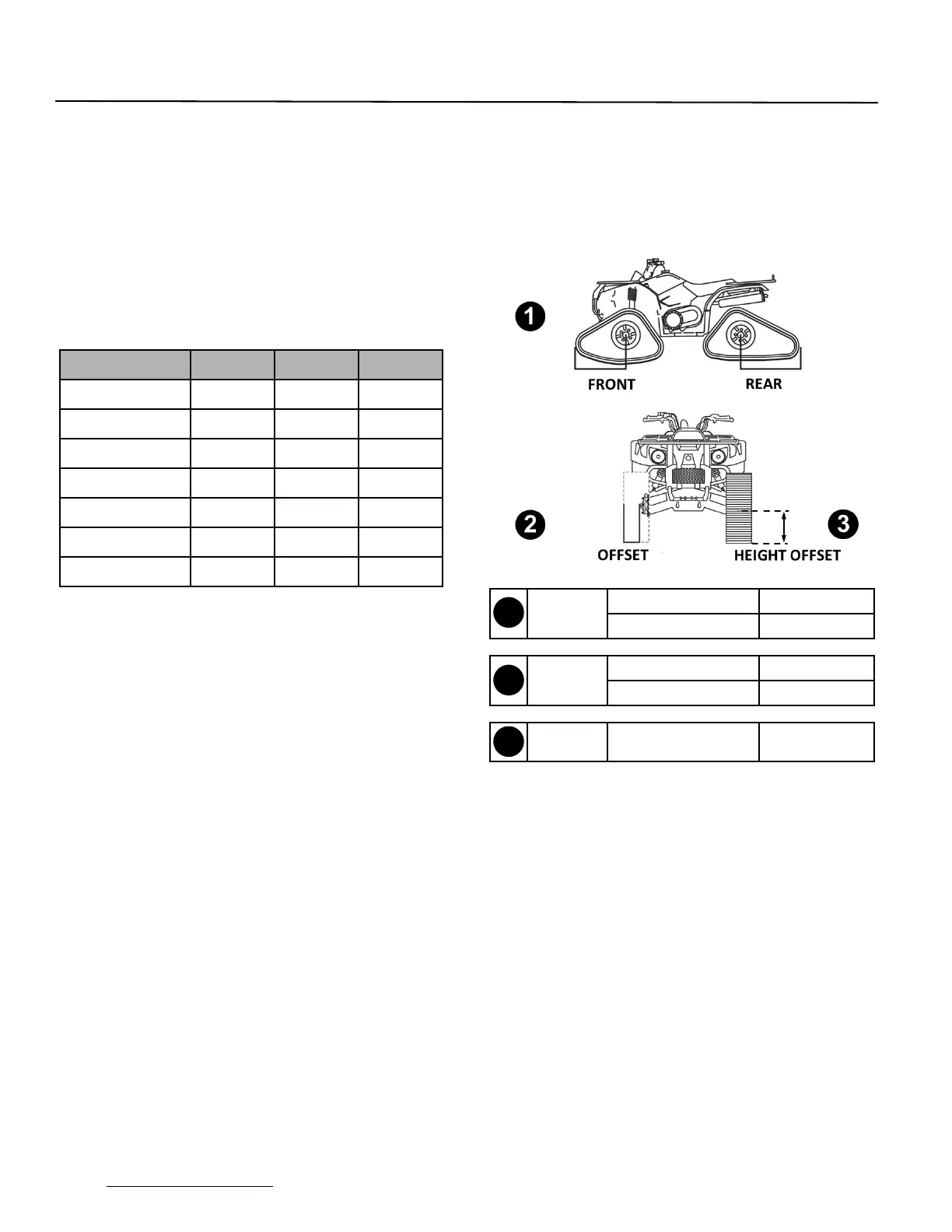

OFFSETS ON VEHICLE
Installation of a Track System on a vehicle creates
offsets in length, height and width. The offsets are
illustrated in the figure below and their dimensions
are specified in the accompanying table.
SPEEDOMETER & TRIP METER READINGS
Our Track System affects the Speedometer and Trip
meter readings. Generally, the System sprocket
diameter is smaller than the tire diameter. As a
result, real vehicle speed is less than that actually
displayed by approximately 35%.
FUEL CONSUMPTION
A lower travelling speed and a higher revving
engine will affect fuel consumption. A vehicle
equipped with tracks will travel a shorter distance
and will consume more fuel than compared to a
vehicle operating on wheels.
DIMENSION GRADE Nm lb-ft
M6-1.0 8.8 10 7
M8-1.25 8.8 25 18
M8-1.25 10.9 33 24
M10-1.5 8.8 50 37
M10-1.5 10.9 70 52
M12-1.75 8.8 90 66
M12-1.75 10.9 125 92
1
OFFSET
(length)
FRONT 24 in. (610 mm)
REAR 27 in. (686 mm)
2
OFFSET
(width)
POLARIS 7 in. (178 mm)
OTHER MODELS 6 in. (152 mm)
3
OFFSET
(height)
ORIGINAL TIRE: 24 in. 3 in. (76 mm)
