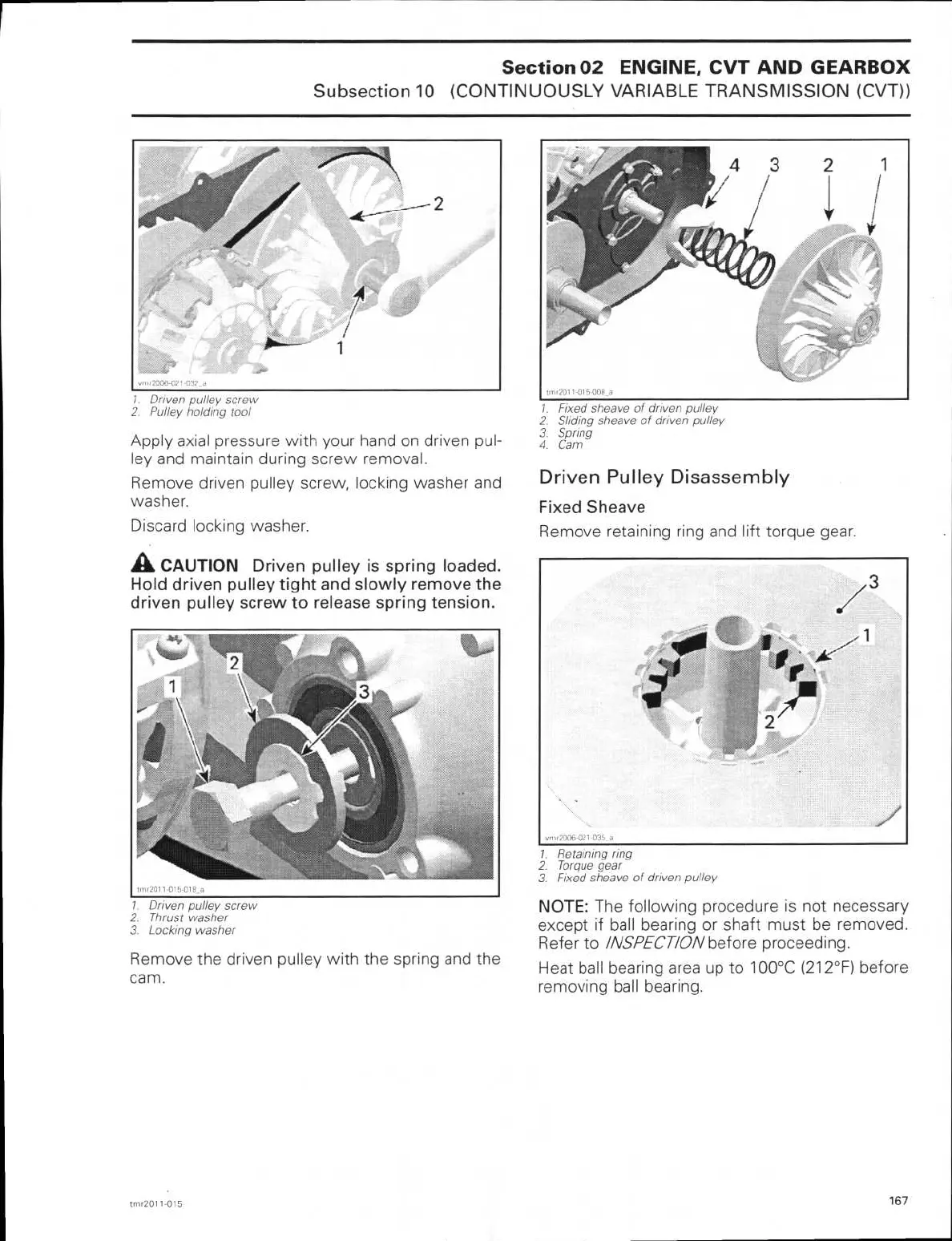

Can-Am commander 1000 - Driven Pulley Disassembly

1.
Driven pulley screw
2. Pulley holding tool
Apply axial pressure with your hand on driven pul-
ley and maintain during screw removal.
Remove driven pulley screw, locking washer and
washer.
Discard locking washer.
A CAUTION Driven pulley is spring loaded.
Hold driven pulley tight and slowly remove the
driven pulley screw to release spring tension.
1. Fixed sheave of driven pulley
2. Sliding sheave of driven pulley
3.
Spring
4. Cam
Driven Pulley Disassembly
Fixed Sheave
Remove retaining ring and lift torque gear.
1. Retaining ring
2. Torque gear
3.
Fixed sheave of driven pulley
Section 02 ENGINE, CVT AND GEARBOX
Subsection 10 (CONTINUOUSLY VARIABLE TRANSMISSION (CVT))
1. Driven pulley screw
2. Thrust washer
3. Locking washer
Remove the driven pulley with the spring and the
cam.
NOTE: The following procedure is not necessary
except if ball bearing or shaft must be removed.
Refer to INSPECTION before proceeding.
Heat ball bearing area up to 100°C (212°F) before
removing ball bearing.
tmr2011-015

167
