POSITIONING THE APPLIANCE

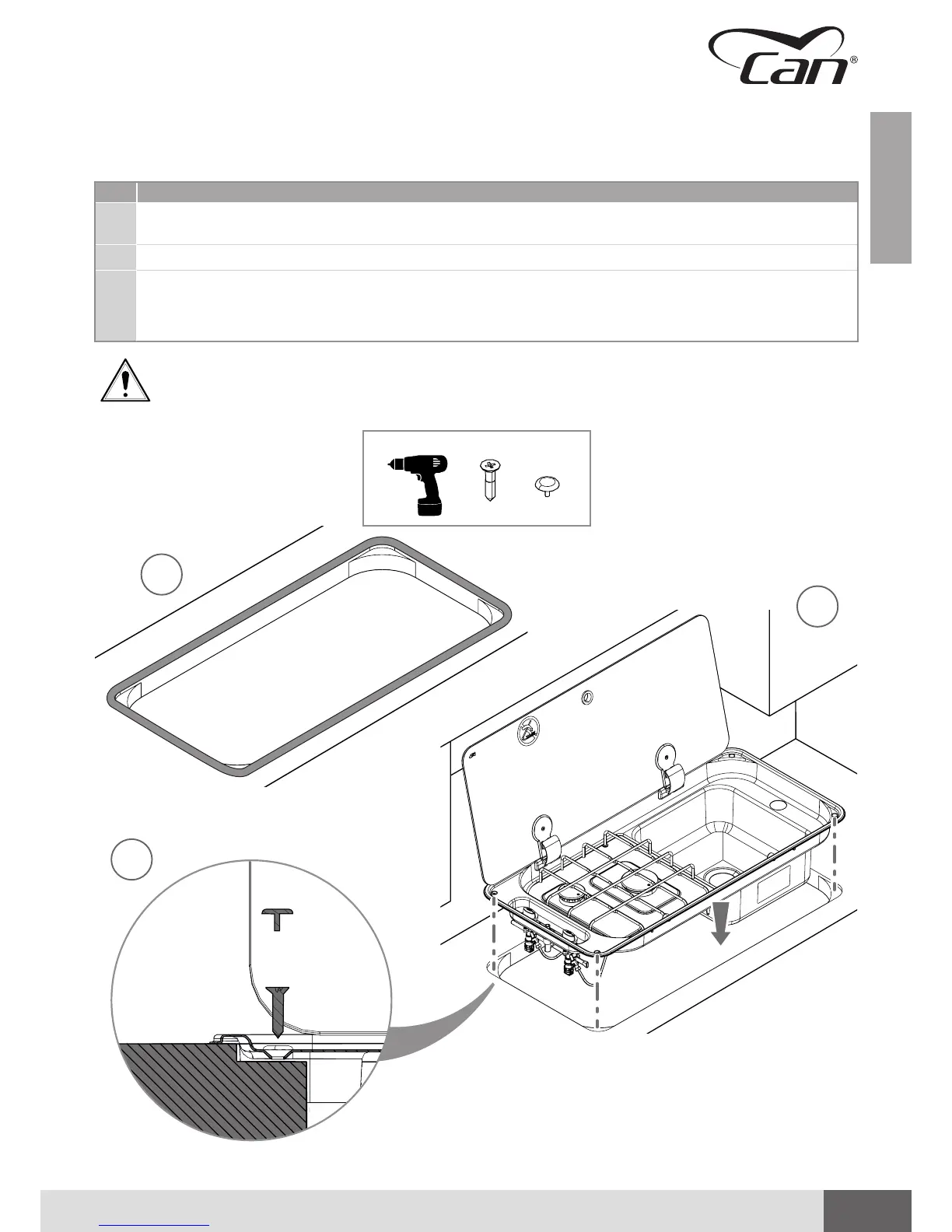

Proceed as follows to position the appliance on the support structure:
1 Position the gasket (sold separately) on the edges of the metal moulding or sealant paste (if present).
2 Position appliance on the recessed hole and push it onto the support structure.
3 Secure the appliance using the fixing screws provided in the specific kit and screw them into the holes made
at the four corners of the metal moulding.
Note: make sure that the appliance is positioned properly in the slot before performing the final fixing.
ATTENTION!
There must be an opening below the hob of at least 50 x 50 mm for passage of the gas and
electrical connections.
EQUIPMENT REQUIRED
4 x 4 x
2
1
3
