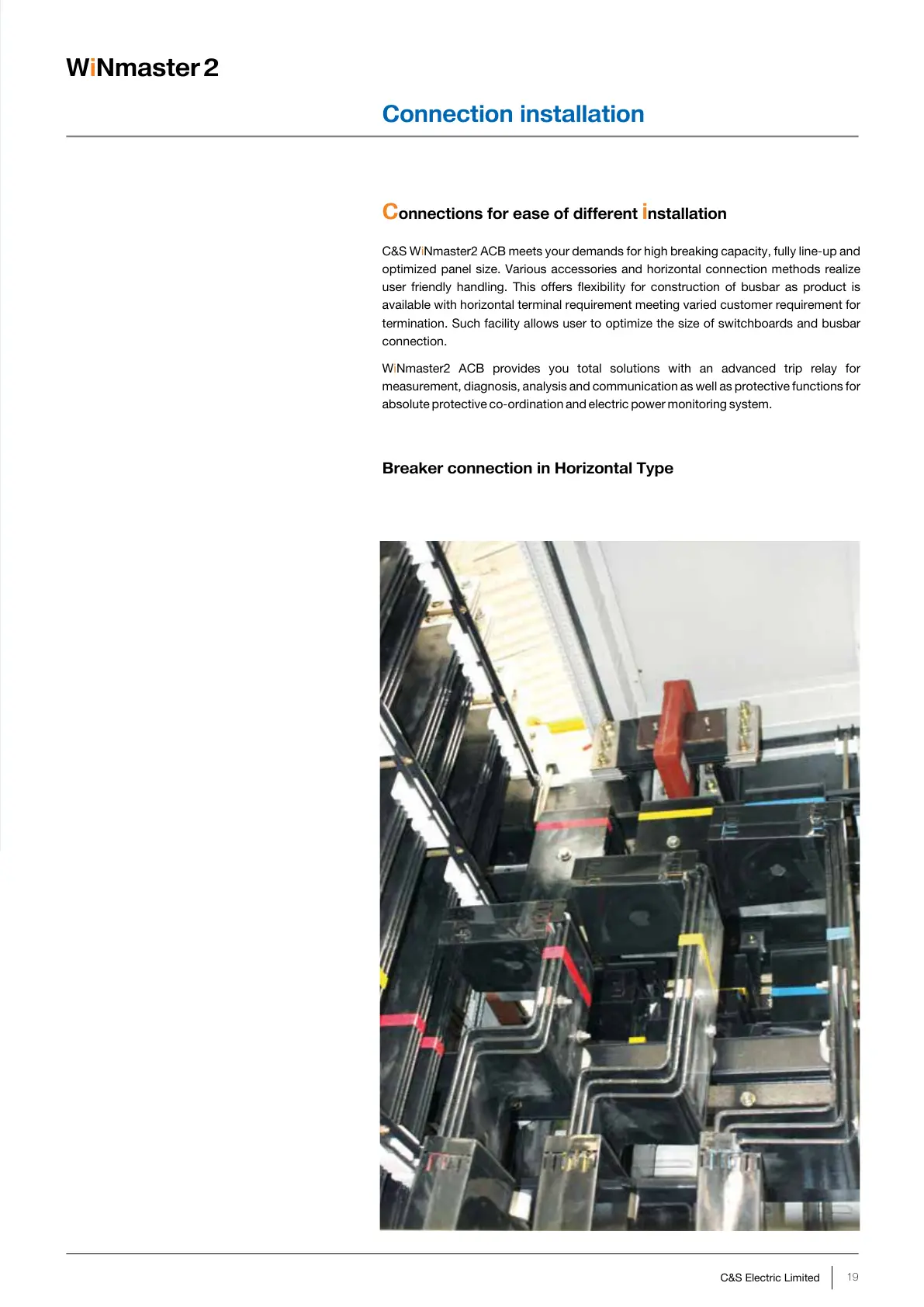

Connection installation
C ionnections for ease of different nstallation
C&S W Nmaster2 ACB meets your demands for high breaking capacity, fully line-up and
optimized panel size. Various accessories and horizontal connection methods realize
user friendly handling. This offers flexibility for construction of busbar as product is
available with horizontal terminal requirement meeting varied customer requirement for
termination. Such facility allows user to optimize the size of switchboards and busbar
connection.
W Nmaster2 ACB provides you total solutions with an advanced trip relay for
measurement, diagnosis, analysis and communication as well as protective functions for
absolute protective co-ordination and electric power monitoring system.
i
i
Breaker connection in Horizontal Type
18 C&S Electric Limited
19
C&S Electric Limited
Mixed typeVertical typeHorizontal type
Cradle terminal as per panel manufacturer
W Nmaster 2i
