C&S Electronics WiNmaster 2 - Model Identification; Identifying WX ACB Model Codes

Suitability for isolation
ACB Code
Rated current
ACB Type
Rated operational voltage
Rated insulation voltage
Rated impulse voltage
Ultimate breaking capacity
Rated service breaking capacity
Rated short-time breaking capacity
ACB Cat.
CE Marking
Barcode
WX20N
In
Type
Ue
415V 50 / 60Hz
Ui
690V
Uimp
12kV
Icu
50kA, 415V
Ics
100% Icu
Icw
50kA / 1sec.
Cat. B
1000A
800A
630A
2000A1600A1250A
MF EF 3P
MD ED 4P
INDIA
wx 2 5 n a i r c i r c u i t b r e a k e r w i t h a c c e s s o r i e s
Rating
W Nmaster 2 WX series Intelligent Circuit Breaker offer current ratings from 630A to
2500A. The new generation intelligent controller provided basic protection of distribution
network with specialized function like Measurement, Maintenance and Man-Machine
interface.
i
W Nmaster 2i
IEC 60947-2
CEI EN 60947-2
IS 13947-2
Utilisation Category: B
Air Circuit Breaker
2
1
3
4
5
6
7
8
9
10
11
12
13

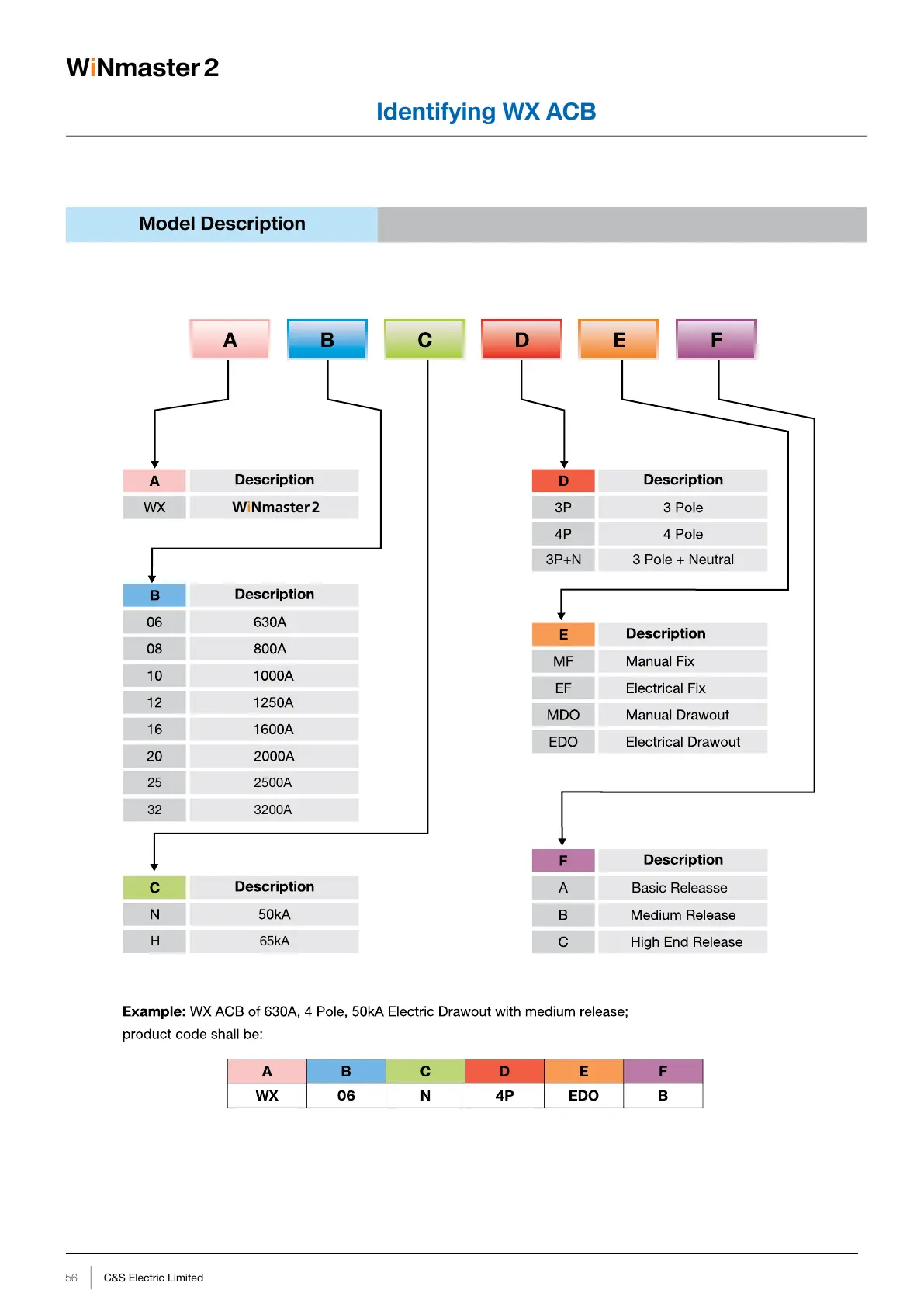

Model Description
Identifying WX ACB
56 C&S Electric Limited
57
C&S Electric Limited
W Nmaster 2 i
25 2500A
32 3200A
H 65kA
A Basic Releasse
3P+N
3 Pole + Neutral
Nomenclature
1
2
3
4
5
6
7
8
9
10
11
12
13
Manufacturer Logo
Brand Name
Applicable standards
Utilization Category
Qrcode
1
2
3
4
5
1
2
3
4
1
W Nmaster 2iW Nmaster 2i
