C&S Electronics WiNmaster 2 - Micropro 2 - 7.1 Curves

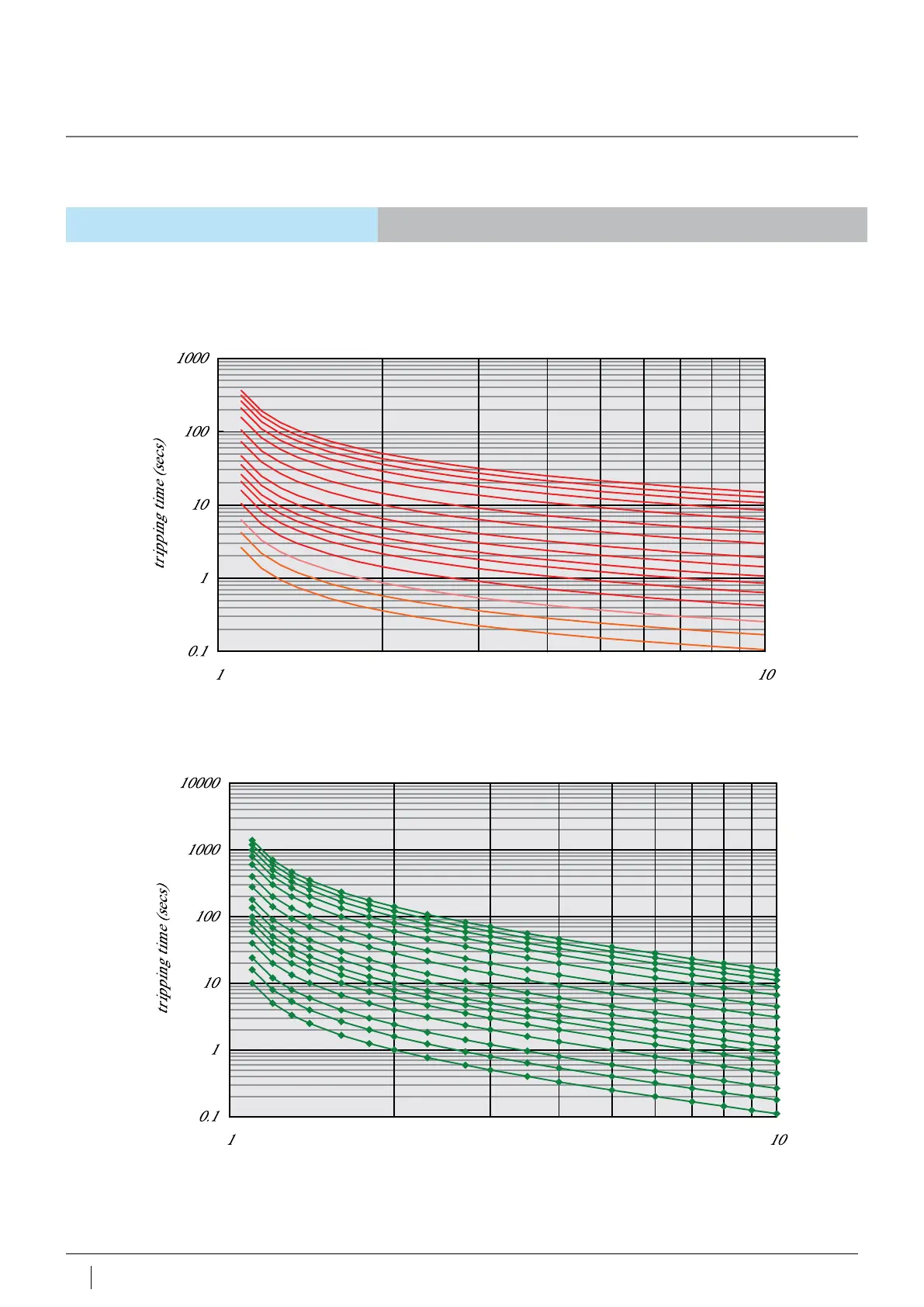

Chart A3
Very inverse time lag
*Ir (long delay set value)
Chart A2
Standard inverse time lag
*Ir (long delay set value)
Micropro 2 - 7.1
Chart A4
Extremely inverse time lag (distributing protection)
*Ir (long delay set value)
Chart A5
Extremely inverse time lag (generator protection)
*Ir (long delay set value)
tripping time (secs)
Micropro 2 - 7.1
