C&S Electronics WiNmaster 2 - Page 40

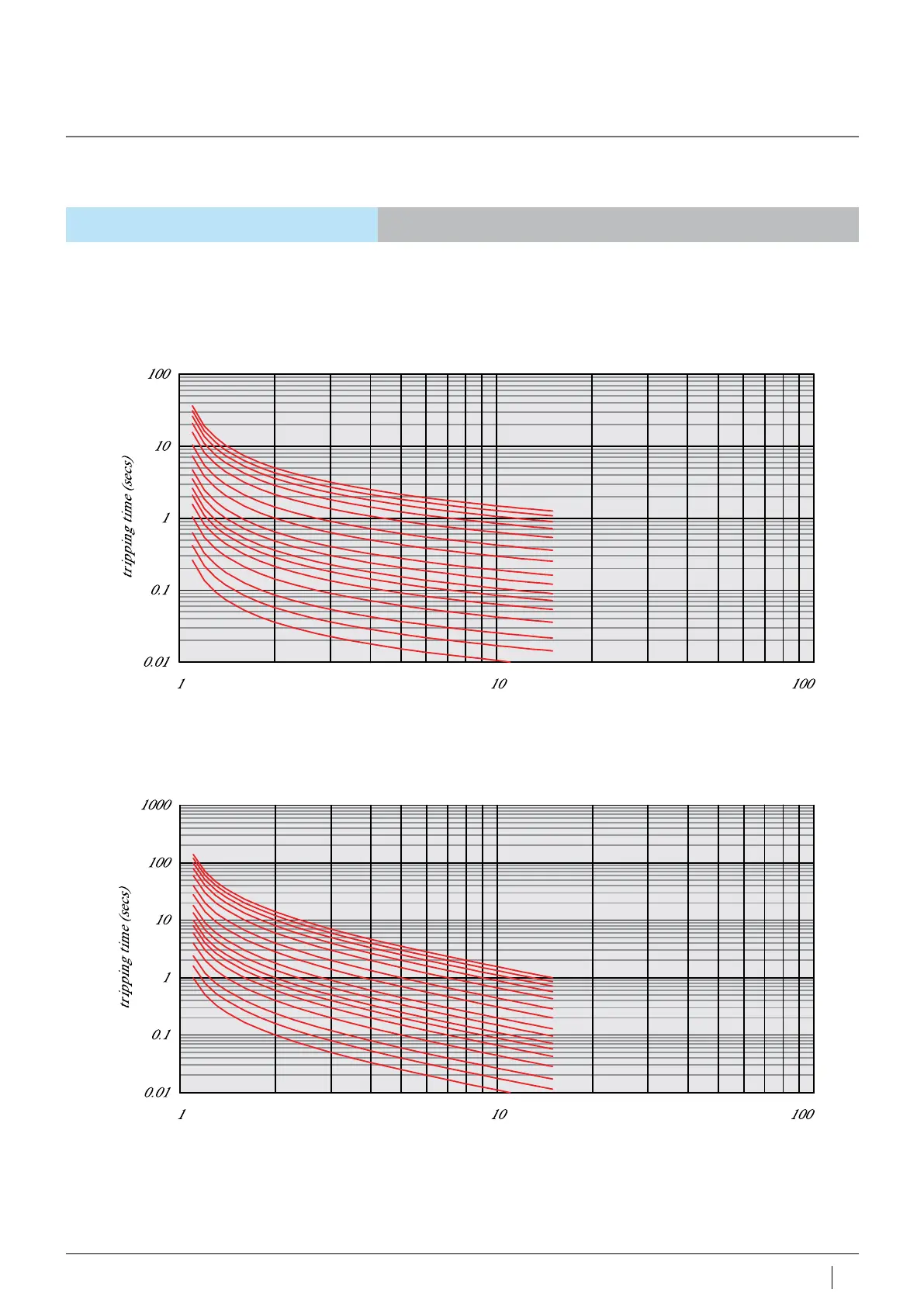

Chart A6
High voltage fuse compatible
*Ir (long delay set value)
tripping time (secs)
Chart A7
Extreme inverse time curve
*Ir (long delay set value)
tripping time (secs)
Micropro 2 - 7.1
Chart S1
Short delay reverse time lag - standard reverse time lag
*Ir (long delay set value)
Chart S2
Sort time delay reverse time lag - fast reverse time lag
*Ir (long delay set value)
Micropro 2 - 7.1
40 C&S Electric Limited
41
C&S Electric Limited
Characteristics Curve
Characteristics Curve
W Nmaster 2i
W Nmaster 2i
