Chart C3

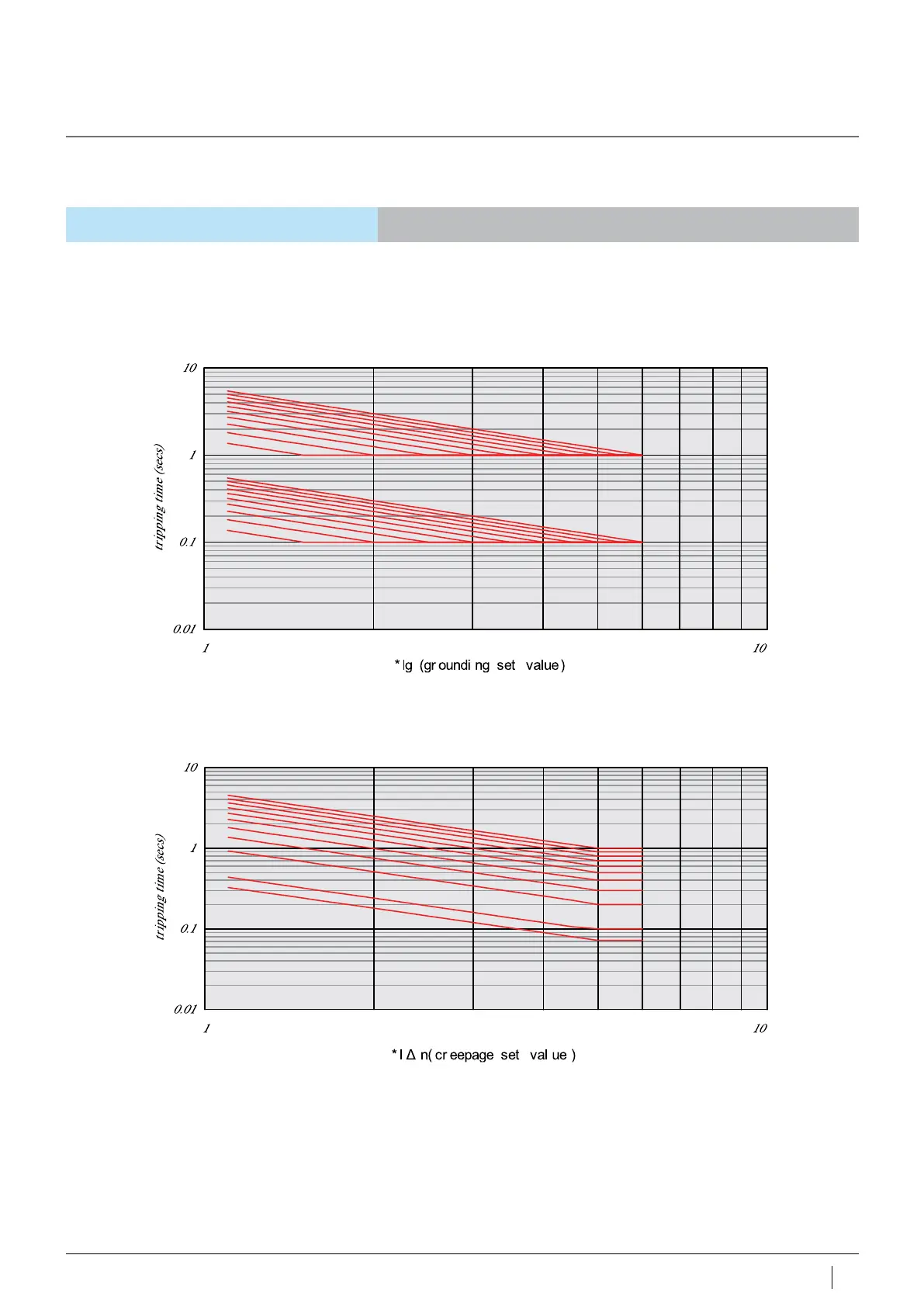

Example curve of reverse time lag, fixed time lag
*Ir (long delay set value)
The curve above bases on the set value below:
- Curve type = fast reverse time lag
- Curve speed = C1, C8 and C16 (C1 fastest)
- Operation set value of short delay reverse time lag = 3 x Iset
- Operating set value of short delay fixed time lag = 6 x Ir
- Delay time of short delay fixed time lag set value = 0.3 S
Micropro 2 - 7.1
