7

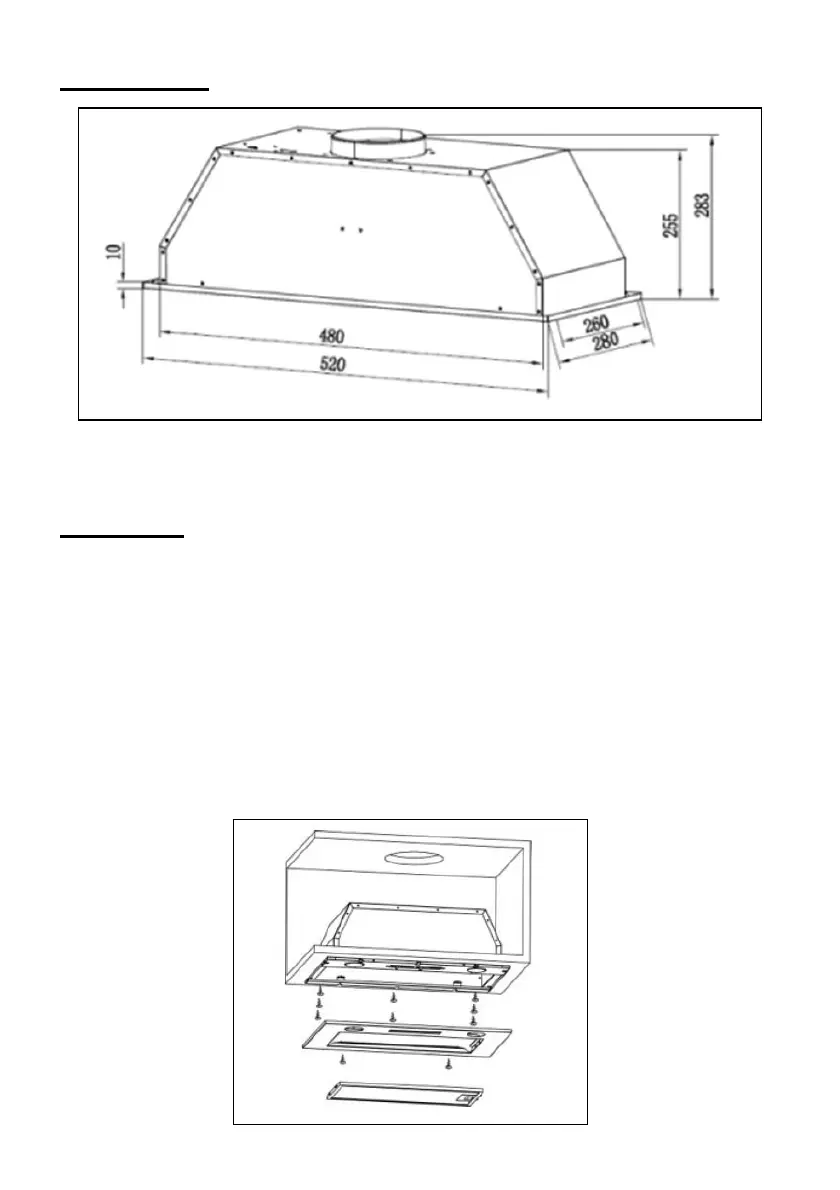

Specifications
Installation
–The typical installation method for your range hood is into a purpose
built overhead/wall cabinet.
– Using a jigsaw, create the required cut-out for your range hood,
as 490 × 250mm
– Make sure the cut-out is at least 35mm from the cabinet edge.
– Remove the grease filter and remove the 2 screws on the panel.
– Screw the range hood into the cabinet using 8 screws (supplied).
– Re-fit the panel with the 2 screws (previously removed).
