Candy CUQS 58EW - Page 25

EN
9 - Installation
25

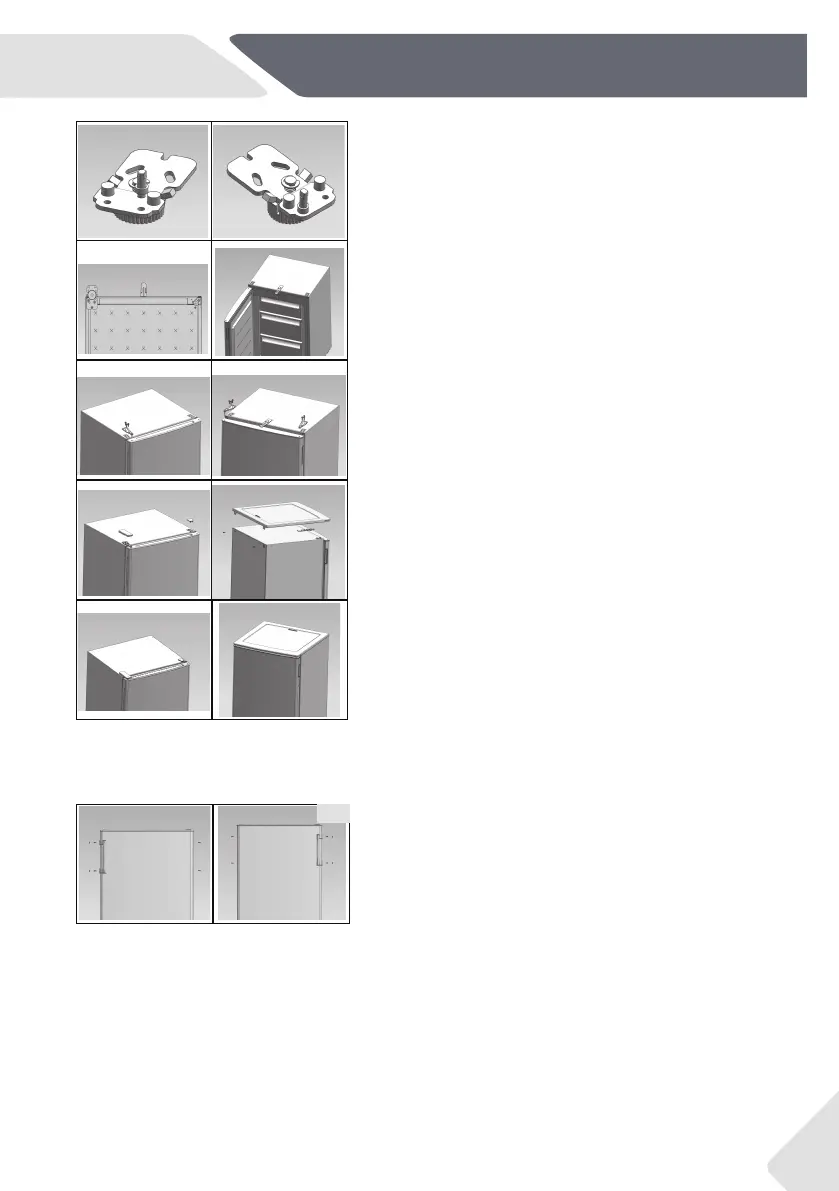

13. Remove hinge axe.
15
13
14
16
17
20
19
21
18
14.Fix hinge axe to the next hole.
15. Fix the hinge to the opposite position of the cabinet
with 4 screws and adjustable feet.
16.Mount the door.
22
17. Fix upper hinge with 3 screws (available for CUQS
513EWH/CUQS 513EW).
18.Fix 2 upper hinges with 6 screws (available for
CUQS 58EWH/CUQS 58EW).
19.Fix hinge hole cover and upper left hinge cover
(available for CUQS 513EWH/CUQS 513EW).
20.Fix top cover with 2 screws (available for CUQS
58EWH/CUQS 58EW).
19.Finished (available for CUQS 513EWH/CUQS
513EW).
20.Finished (available for CUQS 58EWH/CUQS
58EW).
9.10 Handle Reversibility (available for CUQS 58EWH/CUQS 513EWH)
1. Remove 2 handle covers, 2 screws and handle
assembly from left side of door. Remove 2 hole
plugs from right side of door.
2. Fix handle assembly with 2 screws to right side
of door and2handle covers. Fix 2 hole plugs to
left side of door.
Assembly steps (Fig. 9.7):
1
2
9.7
3. Finished.
