8
Attaching the Crank Handle
Assembly
Make sure the thrust bearing is sandwiched
between its two races. The thrust bearing spring
should be oriented where the narrow end is
toward the bearing. Slide the bearing with races
and spring over the ratchet shaft. Then, carefully
thread the crank handle onto the shaft and
continue turning the handle clockwise until the
clutch is fully tightened
NOTE: Place your fingertip on the edge of the
bearing and races. This allows the crank to be
threaded more easily until the spring puts
resistance on the clutch pad.

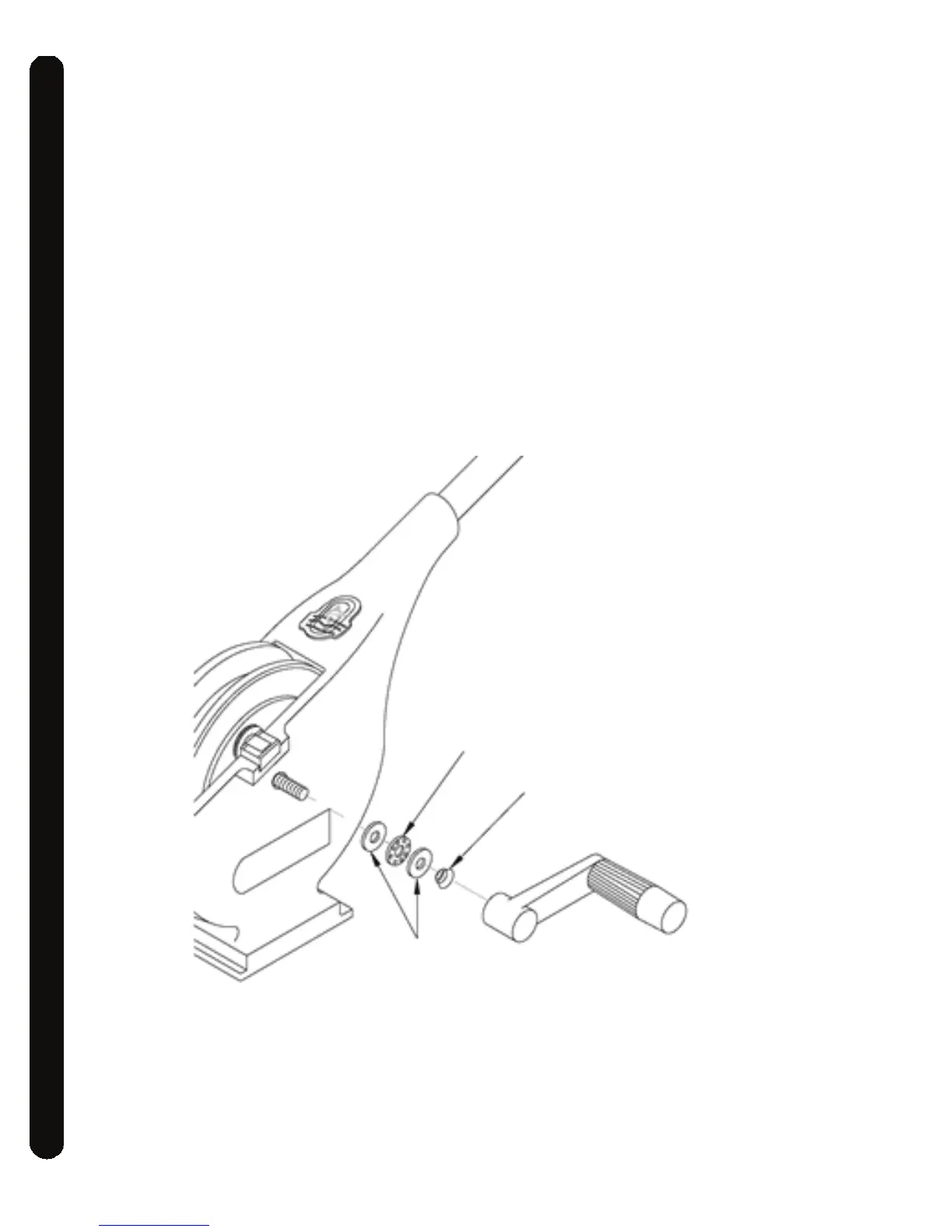

Attaching the crank handle
Thrust Bearing
Races
Crank Handle
Spring
