Cannon Fitzroy Inbuilt - Heater Specifications; Wiring Diagram

25
YELLOW/GREEN
240 V MAINS PLUG
N
N
A
L
M
H
TH2
MOD1
MOD2
BLACK
WHITE
ORANGE
GREY
PURPLE
BROWN
BLUE
BLUE
BLACK
BROWN
WHITE
BLUE
W
BLK
BRN
BLACK
BROWN
RED
RED
WHITE
RED
NO
COMMON
FUSE
BLACK
RED
BLUE
BLUE
YELLOW/GREEN
ORANGE
GREY
PURPLE
YELLOW/GREEN
BLUE
COILS
1.5 AMP
ON/OFF
LW BRN / LW FAN
MED BRN / MED FAN
HIGH BRN / HIGH FAN
SHEATHED
CABLE
EARTH COMMON
E
N
A
FLAME SENSOR
SPARK ELECTRODE
EARTH
FUNCTION CONTROL MODULE P/No. F3604
IGNITION MODULE F3434
SWITCH
ROOM FAN - F3594
8 WAY CONNECTOR
6 WAY CONNECTOR
6 WAY CONNECTOR
4 WAY
PRESSURE SWITCH P/No. F3327
MODULATING VALVE F3691

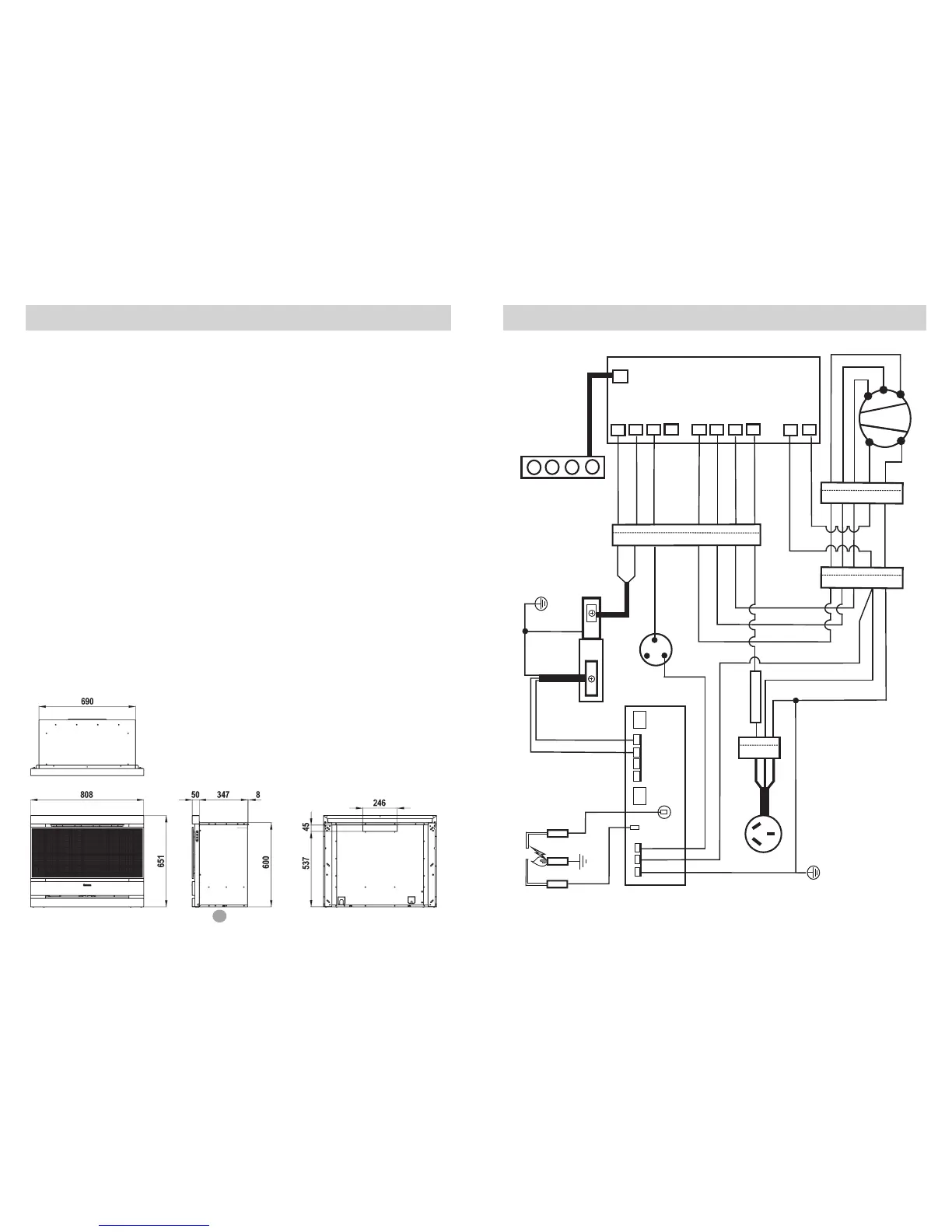

WIRING DIAGRAM
*
Note: when installing into a mock fireplace a mock fireplace
installation kit must be used.
Heater specifications
1
4
Gas type: Natural or Propane gas, as indicated on data label
Gas consumption: 26.0 MJ/hr
Energy output: 5.98 kW
Enery star rating: 4.05 stars
Heater type: Gas space heater
approved to AS 4553:2008
Operating pressure: Natural gas: 0.75 kPa
(at burner high setting) Propane gas: 2.65kPa
Gas regulator: Integral part of controller
Min. inlet pressure: 1.13 kPa (NG)
2.75 kPa (Propane)
Fan: 3 speed
Controller: Electronic direct spark
Power requirement: 240 VAC 10 A
Power consumption: 90 VA maximum
Minimum cavity Height: 605mm*
dimensions: Width: 700mm
Depth: 393mm
Optional accessories: Glass front
Remote thermostat
Spacer kit
3 sided surround
4 sided surround
Console kit
Overall dimensions: Refer to fig. 1
Note:
The data label is located within the fan
chamber (bottom heater cavity). Access by
removing fascia.
