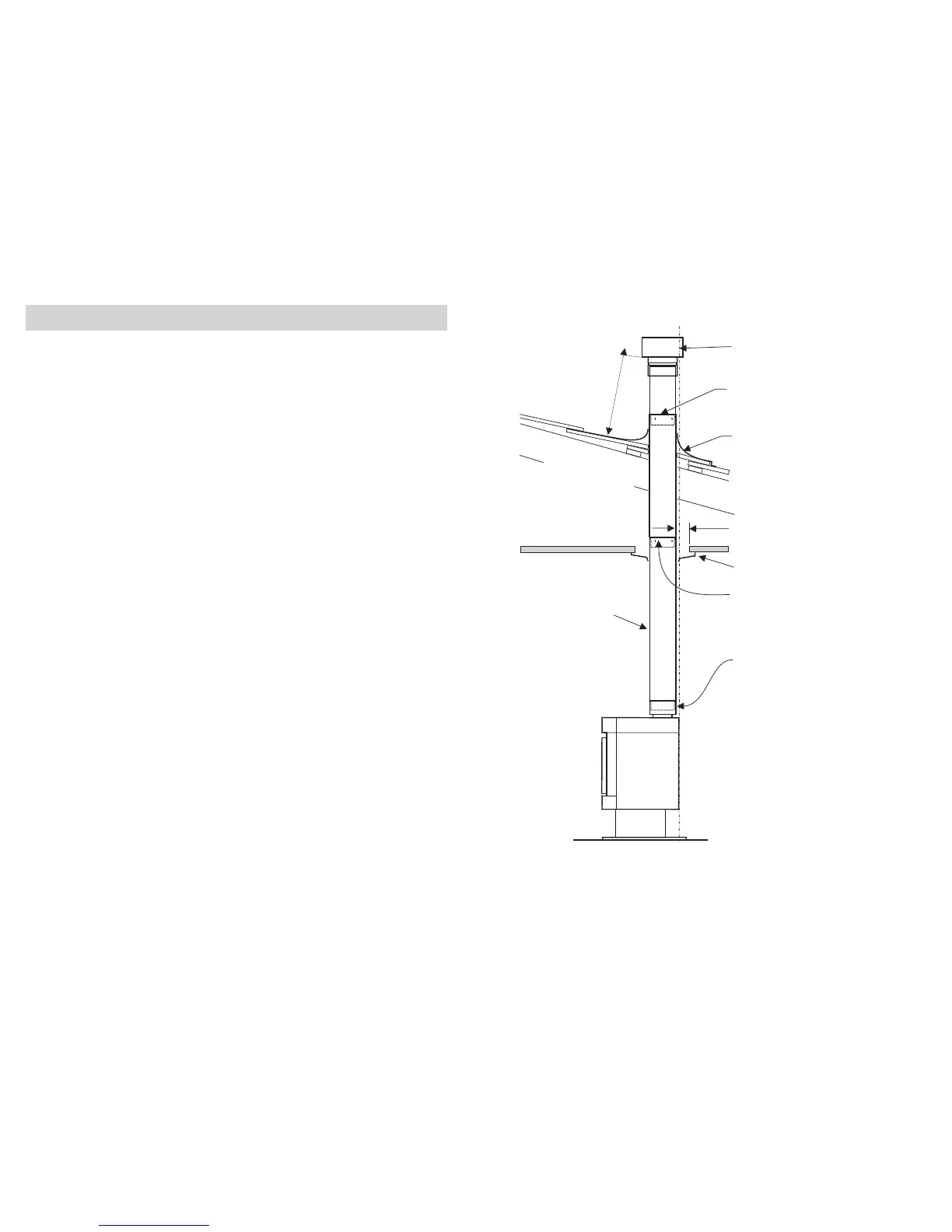

Figure 9
Figure 9 shows Flue system in position. For more detail, refer to heater
installation booklet supplied with heater or contact Sampford IXL (contact details on
the rear of this booklet).
25 mm MINIMUM CLEARANCE
TO COMBUSTIBLE MATERIAL
MAINTAIN 25 mm MINIMUM
CLEARANCE BETWEEN FLUE
AND COMBUSTIBLE
MATERIALS.
500 mm
MINIMUM
125 mm FLUE COWL
APPROVED TO AG 604
IF THE COUPLING IS ABOVE
ROOF LEVEL SEAL JOINT
WITH SILICONE TO PREVENT
WATER INGRESSION
FLASHING TO PROVIDE A
WATERTIGHT SEAL
CEILING RING
FLUE SPIGOT ADAPTER
UPPER LENGTH FITS INSIDE
LOWER LENGTH. RIVET FLUE
JOINS.
RIVET 6 PLACES EACH JOIN
NOTE:
FIT A MINIMUM OF TWO LENGTHS
(1.74 M) OF VERTICAL FLUE
BEFORE FITTING ANY 45° BENDS.
IF BENDS ARE USED, THEY MUST
FIT INSIDE THE FLUE ON
DOWNWARDS ENDS.
USE NO MORE THAN TWO 45°
BENDS IN THE TOTAL FLUE RUN
AND MAINTAIN AT LEAST 250 mm
OF STRAIGHT FLUE PIPE
BETWEEN THE BENDS.
125 mm DIA
FLUE PIPE.
