Cannondale TRIGGER - Asymmetric Integration - Ai Rear Wheel- 3 mm Offset; NOTICE; Building;Truing a Wheel; Main Pivot Bearing Tool - CK90170000 S

9
134910 Rev 1.
NON-DRIVE DRIVE
3mm
148mm

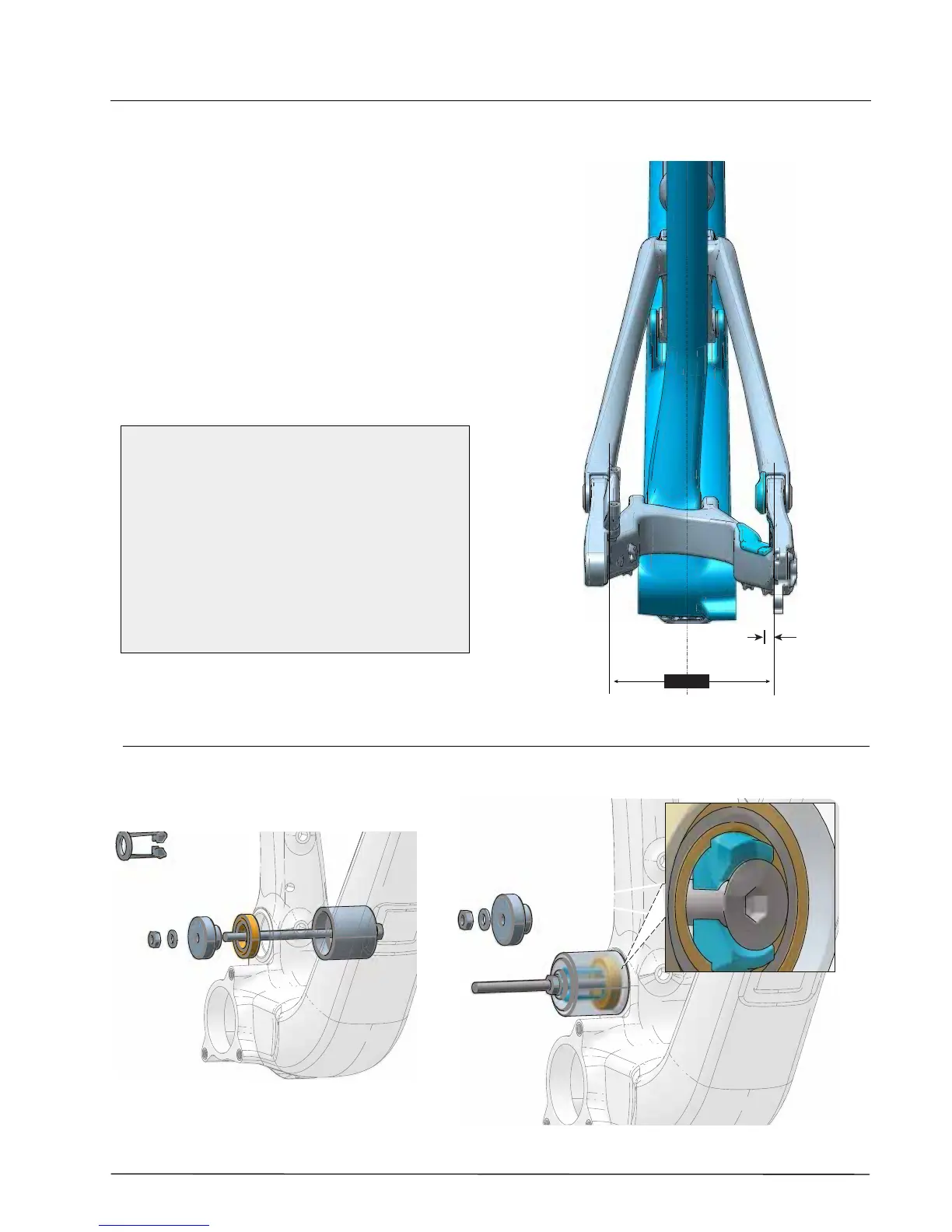

ENGLISHTRIGGER/JEKYLL - OWNERS MANUAL SUPPLEMENT
The Ai rear hub is oset 3 mm to the drive side. This both aligns the
cassette with the Ai frame’s 55mm chainline, and aligns the rim/tire
with frame’s centerline for correct tire clearance.
Ai wheels have equal spoke angles and tension on both sides (non-
dished wheel) which improves wheel stiness, strength.
• The 3mm oset is for 148 X 12mm spacing only!
• Other Ai equipped bike with 142mm or 135mm rear
spacing use a 6mm oset.
NOTICE
USE ONLY 3mm “Ai” OFFSET REAR WHEELS. Incorrect wheel
oset can damage your frame.
Standard wheel assembled on this frame will result in
insucient tire clearance leading to rubbing and serious frame
damage. This kind of damage is not covered by the Cannondale
Limited Warranty.
Building/Truing a Wheel
If you chose to build, or true the wheel, make sure the 3 mm
oset is present. Consult with your Cannondale Dealer if you
have any questions.
Main Pivot Bearing Tool - CK9017U00OS
Remove
Install
Asymmetric Integration - Ai
Rear Wheel- 3 mm Oset
