Cannondale TRIGGER - Internal Guides - KP436;; Internal Frame Guides

15
134910 Rev 1.
4mm
5mm
4mm
5 mm x 2
5
6
7
5 mm
4mm
5 4mm
5 mm
4mm
1 Nm
1 Nm
1 Nm
ENGLISHTRIGGER/JEKYLL - OWNERS MANUAL SUPPLEMENT

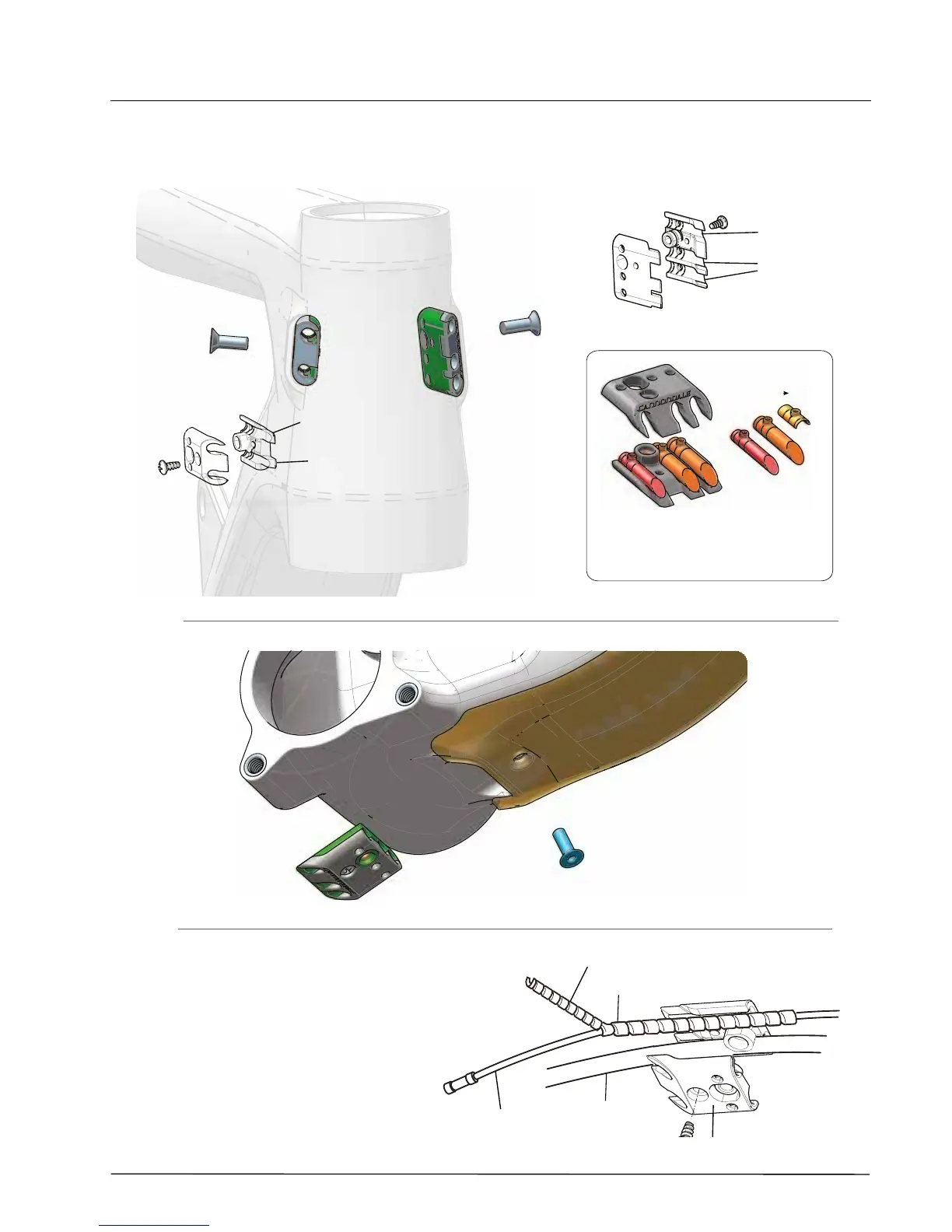

Internal Guides - KP436/
Internal Frame Guides:
Install plastic spiral wire wrap (5) over
Di2 wires (6) passing through internal
guide (7).
Use the 4mm guide opening for Di2 wire.
Use the guide inserts in open
locations.
