ENGLISHTRIGGER/JEKYLL - OWNERS MANUAL SUPPLEMENT
To set air pressure:

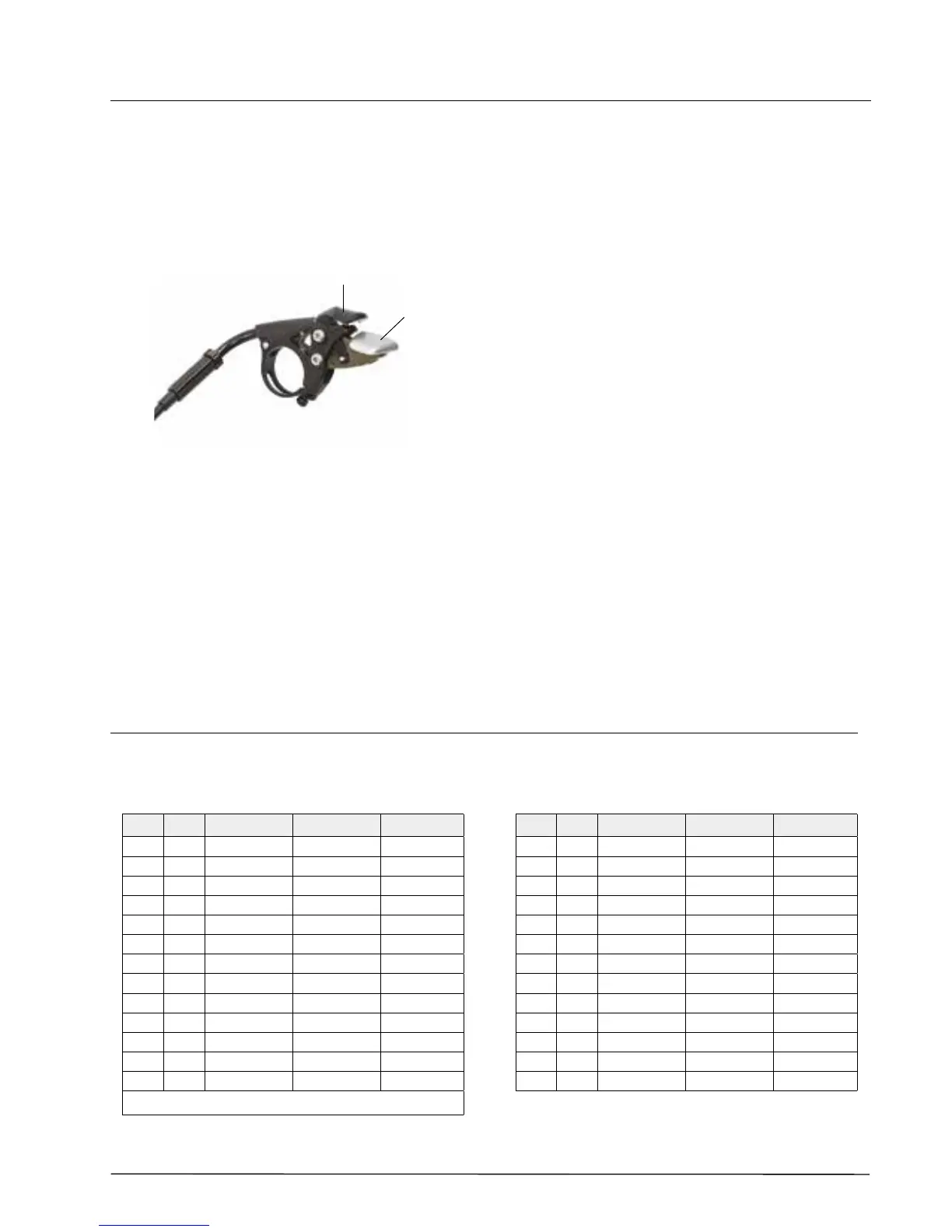

1. Set handlebar remote to Flow mode: press the
black handlebar remote button (a) so that the
remote handlebar control is in the position shown
below.
(a)
(b)
2. Remove the Schrader valve cap (1) and pressurize
the shock with a shock pump according to your
riding weight (body weight, clothing and
equipment). Consult the table for your bike/shock.
3. Remove the shock pump.
4. Cycle the shock 10 times to allow the positive and
negative air pressures to equalize.
5. Thread the shock pump back onto the valve and
pump the shock back up the recommended
pressure again to compensate for any transferred air
pressure.
Gemini - FOX Float X (shown)
RIDER WT. AIR PRESSURE REBOUND
Lbs Kg PSI Bar Clicks*
100 45 130 9.0 21
110 50 144 9.9 20
120 55 158 10.9 19
130 59 172 11.9 18
140 64 186 12.9 17
150 68 200 13.8 16
160 73 215 14.8 15
170 77 229 15.8 14
180 82 243 16.7 13
190 86 257 17.7 12
200 91 271 18.7 11
210 95 285 19.6 10
220 100 299 20.6 9
Gemini - FOX Float DPS
RIDER WT. AIR PRESSURE REBOUND
Lbs Kg PSI Bar Clicks*
100 45 105 7.2 13
110 50 118 8.1 13
120 55 131 9.0 12
130 59 144 9.9 11
140 64 157 10.8 10
150 68 170 11.7 10
160 73 184 12.7 9
170 77 197 13.6 8
180 82 210 14.5 7
190 86 223 15.4 6
200 91 236 16.3 5
210 95 249 17.2 5
220 100 262 18.1 4
* Fully close the rebound dial, turn clockwise until dial stops. To set count clicks turning counter-clockwise.
NOTE: Air pressure measured at the pump will
decrease after air has transferred from positive to
negative chambers.
5. Remove the shock pump from the shock valve.
6. Check sag to conrm your shock setup. Recom-
mended seated sag with full riding gear is 30% (see
tables below)
7. If there is too much sag, add air pressure in 10
psi increments until correct sag is achieved. If
there is too little sag, reduce air pressure in 10 psi
increments until correct sag is achieved.
8. Install the Schrader valve cap onto the air valve.
9. Turn the red rebound adjuster clockwise towards
“slow” until it stops.
a. Float X - Insert a 2mm hex wrench into a cutout in
the red rebound knob located near the eyelet on
the frame side of the shock. Use the wrench to turn
the knob towards “slow” until it stops.
b. Float DPS - Turn the red rebound knob located
under the blue compression adjustment lever on
the frame side of the shock clockwise towards
“slow” until it stops.
10. Turn the red rebound knob counter-clockwise
towards “fast”, counting each detent click until you
reach the recommended number of clicks based on
the table below.
