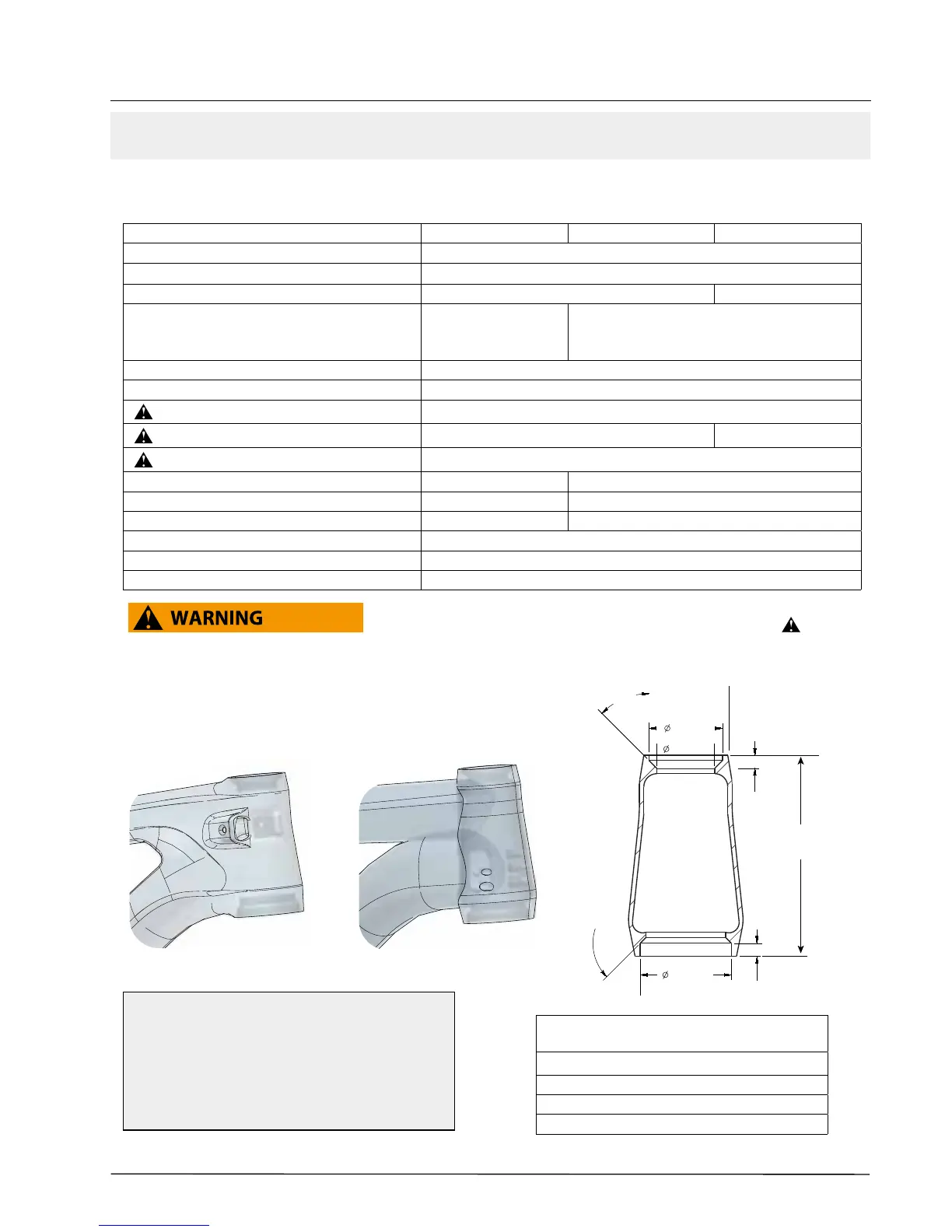

Cannondale TRIGGER - TECHNICAL INFORMATION; Frame Specification; Headtube

3
134910 Rev 1.
42.0 mm
45.0°
33.0 mm
52.0 mm
7.5 mm
45.0°
X
3.0 mm
ENGLISHTRIGGER/JEKYLL - OWNERS MANUAL SUPPLEMENT
TECHNICAL INFORMATION
Frame Specication
TRIGGER CARBON JEKYLL CARBON JEKYLL ALLOY
FRAME 148 x 12mm Ai
HEAD TUBE 1 1/8 - 1 1/2 Tapered
BOTTOM BRACKET PF30 83mm BB30 83mm
FRONT DERAILLEUR
Low Direct Mount,
Side Swing
(alloy CS only)
N/A
SEAT POST DIA./BINDER 31.6 mm, 34.9 mm binder
MINIMUM SEAT POST INSERT 100 mm
TIRE SIZE/MAXIMUM WIDTH
27.5” X 2.5”
MAXIMUM FORK LENGTH
545 mm 565 mm
INTENDED USE
ASTM CONDITION 4, All-Mountain
REAR TRAVEL 145 mm 165mm
RECOMMENDED SAG 30%, 17 mm 30%, 18 mm
EYE-TO-EYE / STROKE 210 mm / 55 mm 230 mm / 60 mm
REAR BRAKE 160/180 Flat Mount
REAR AXLE 148 X 12 Maxle, 180 mm length
MAXIMUM WEIGHT LIMIT (Lbs/Kg) Total (rider+all equipment): 305lb / 138 Kg
Please read your Cannondale Bicycle Owner’s Manual for more
information on specication marked with the safety alert symbol “
.”
FRAME SIZE
HEADTUBE
LENGTH (X)
SM 102 mm
MD 115 mm
LARGE 122 mm
X-LARGE 134 mm
Headtube
NOTICE
Do not face, surface, or cut the head tube bearing
cups. When removing adapters, bearings, or cup
from, extra care must be used so that the tool used
to drive out the bearing is not located on any part
a bonded cup.
(carbon) (alloy)
