Canon i-SENSYS MF4320d User Manual

Chapter 4
4-12

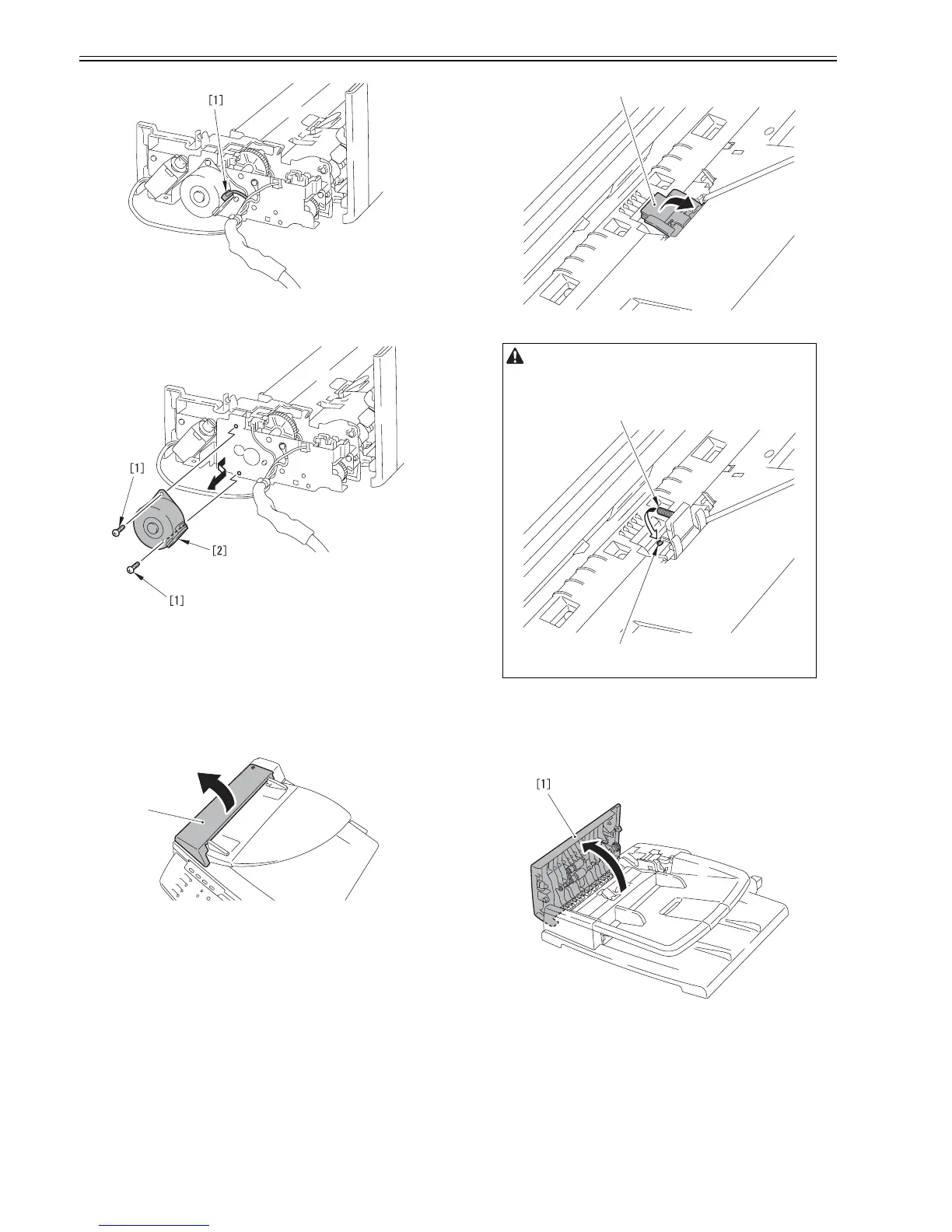

F-4-38
14) Remove the DADF motor [2] in the direction shown by an arrow.
- 2 screws [1]
F-4-39
4.3.3 Separation Pad
4.3.3.1 Removing the ADF Separation Pad
0020-3070
i-SENSYS MF4300dn / i-SENSYS MF4350d / i-SENSYS MF4380dn / i-
SENSYS MF4310/4318 / i-SENSYS MF4320d / i-SENSYS MF4330d / i-
SENSYS MF4340d / i-SENSYS D450d / i-SENSYS MF4370dn
1) Open the ADF cover [1] in the direction of the arrow.
F-4-40
2) Remove the separation pad [1] in the direction of the arrow.
F-4-41
4.3.3.2 Removing the DADF Separation Pad
0020-2681
i-SENSYS MF4300dn / i-SENSYS MF4350d / i-SENSYS MF4380dn / i-
SENSYS MF4310/4318 / i-SENSYS MF4320d / i-SENSYS MF4330d / i-
SENSYS MF4340d / i-SENSYS D450d / i-SENSYS MF4370dn
1) Open the DADF cover [1] in the direction shown by an arrow.
F-4-42
2) Open the inner guide [1] in the direction shown by an arrow.
[1]
Points to Note when Attaching
Insert the spring [1] of the separation pad into the boss [2].
[1]
[1]
[2]

Canon i-SENSYS MF4320d Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan
Duplex Printing	Yes
Scanner Type	Flatbed
Scan Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Paper Input Capacity	250 sheets
Paper Output	100 sheets
Connectivity	USB 2.0
Operating System Compatibility	Windows, Mac OS
Print Speed	22 ppm
Print Resolution	Up to 600 x 600 dpi
