Chapter 2
2-83
F-2-300

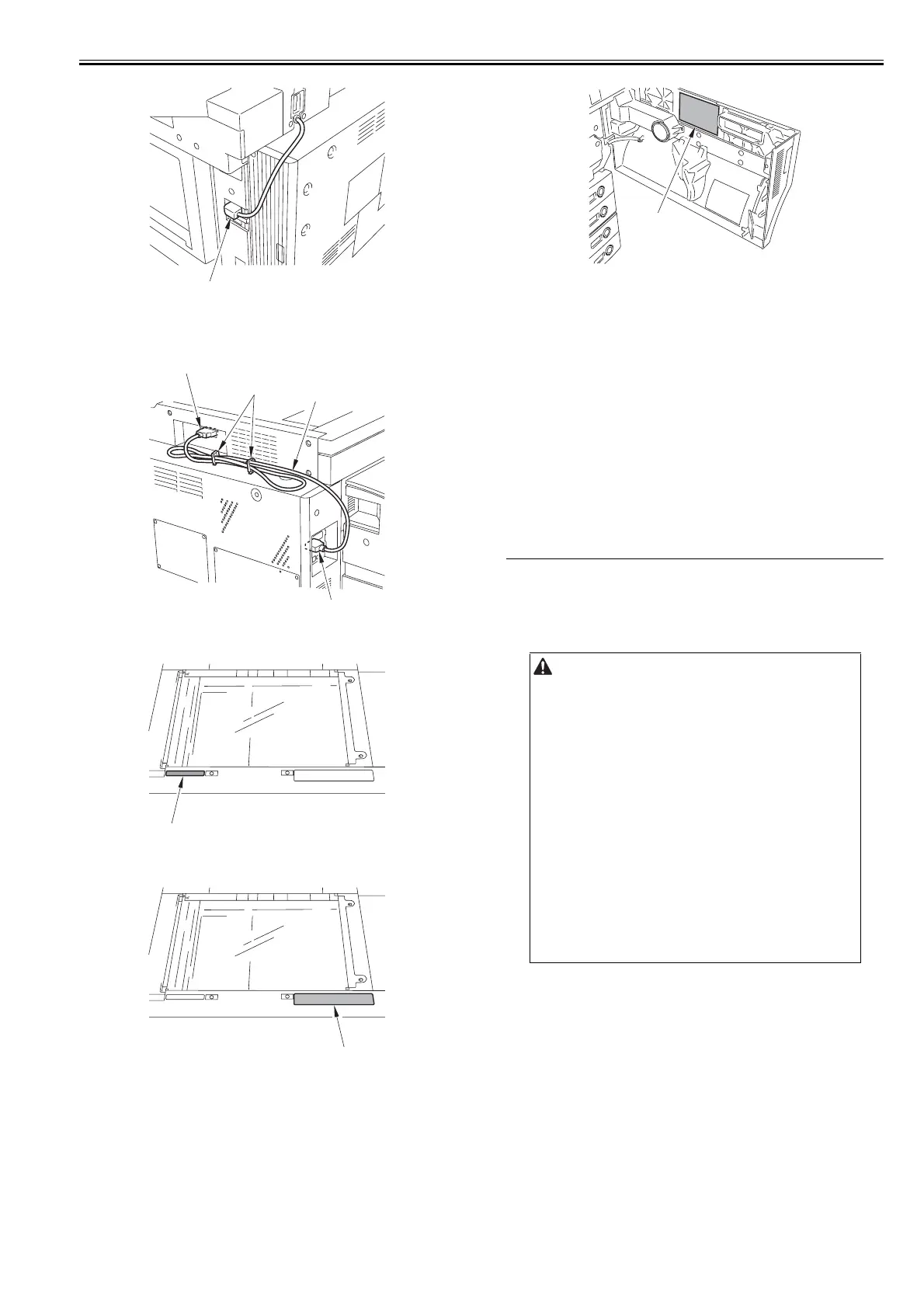

17) Connect the connector[1], and fix the reader communication cable[2] in
place using 2 clamp[3].
F-2-301
18) Attach the Caution Lamp label [1] of the appropriate language.
F-2-302
19) Attach the Do Not Copy label [1] of the appropriate language.
F-2-303
20) Attach the service label [1] to the front cover of the copying machine.
F-2-304
21) Connect the host machine's 2 power plugs (back, left) to 2 separate power
supply systems; then, turn on the main power switch.
22) Following the message on the control panel, turn off the main power
switch, and then turn on the main power switch.
2.3.4 Setting After the Installation (imagePRESS C1
series)
0016-9167
imagePRESS C1 / Color Image Reader-H1 / imagePRESS C1+
Check the following setting after the installation of this equipment is com-
pleted.
1) Enter the service mode.
2) Select COPIER > OPTION > BODY > W/SCNR.
3) Make sure that '1' is set.
Default: 0
4) Terminate the service mode.
2.4 Unpacking and Installation (imagePRESS
C7000 Series)
2.4.1 Points to Note When Turning ON/OFF the power of
Host Machine (imagePRESS C7000 series)
0016-9168
Color Image Reader-H1
[1]
[1]
[1]
[2]
[3]
[1]
[1]
Power-On Order for Turning On the Power When Pickup/
Delivery Accessories are Connected
Be sure to turn on the power in the correct order otherwise it may cause
an error because the host machine fails to recognize accessories
including this equipment.
<Power-On Order>
1) Accessories (accessories including this equipment)
2) Host machine
MEMO:
There is no power-on order among accessories
[1]
