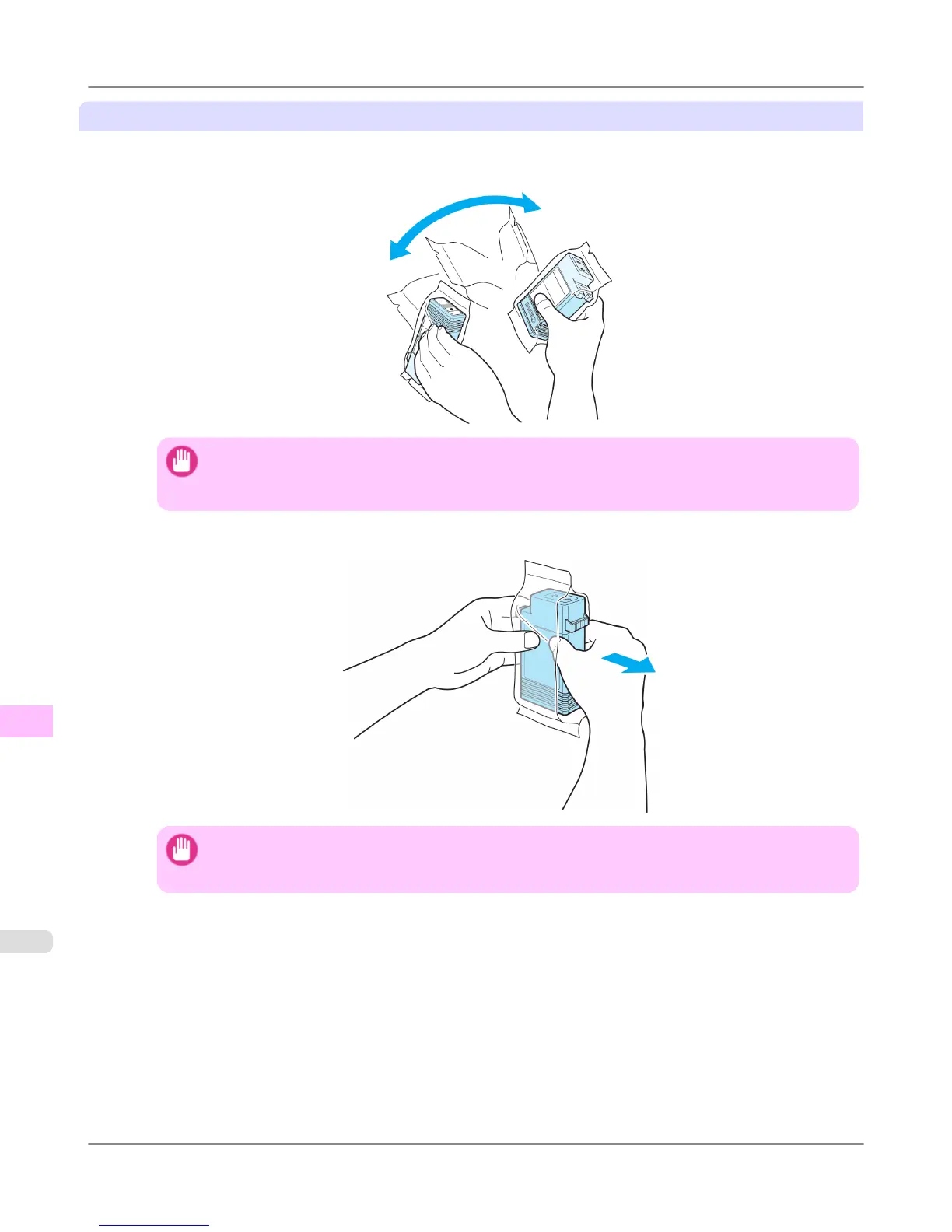

Install the ink tanks

1. Before opening the pouch, gently agitate the Ink Tank seven or eight times. Agitate the ink in the Ink Tank by slow-

ly rotating the Ink Tank upside-down and right side up repeatedly.

Important

• Do not remove and agitate ink tanks that have already been installed in the printer. Ink may leak out.

• If you do not agitate the Ink Tank, the ink may settle, which may affect printing quality.

2. Open the pouch and remove the Ink Tank.

Important

• Never touch the ink holes or electrical contacts. This may cause stains, damage the Ink Tank, and

affect printing quality.

Maintenance and Consumables

Ink Tanks

Replacing Ink Tanks iPF6300S

976
