imagePROGRAF iPF685/680 Service Guide
imagePROGRAF iPF685/680 Service Guide August 2014
Page 11
C. imagePROGRAF iPF685/680 Printer Power and Plug Requirements
Canon USA Inc. strongly suggests dedicated and properly grounded outlets
be provided for these imagePROGRAF iPF685/680 printer devices.
• The imagePROGRAF iPF685/680 printer requires a dedicated single-
phase 120V/15A NEMA 5-15 receptacle for proper operation.

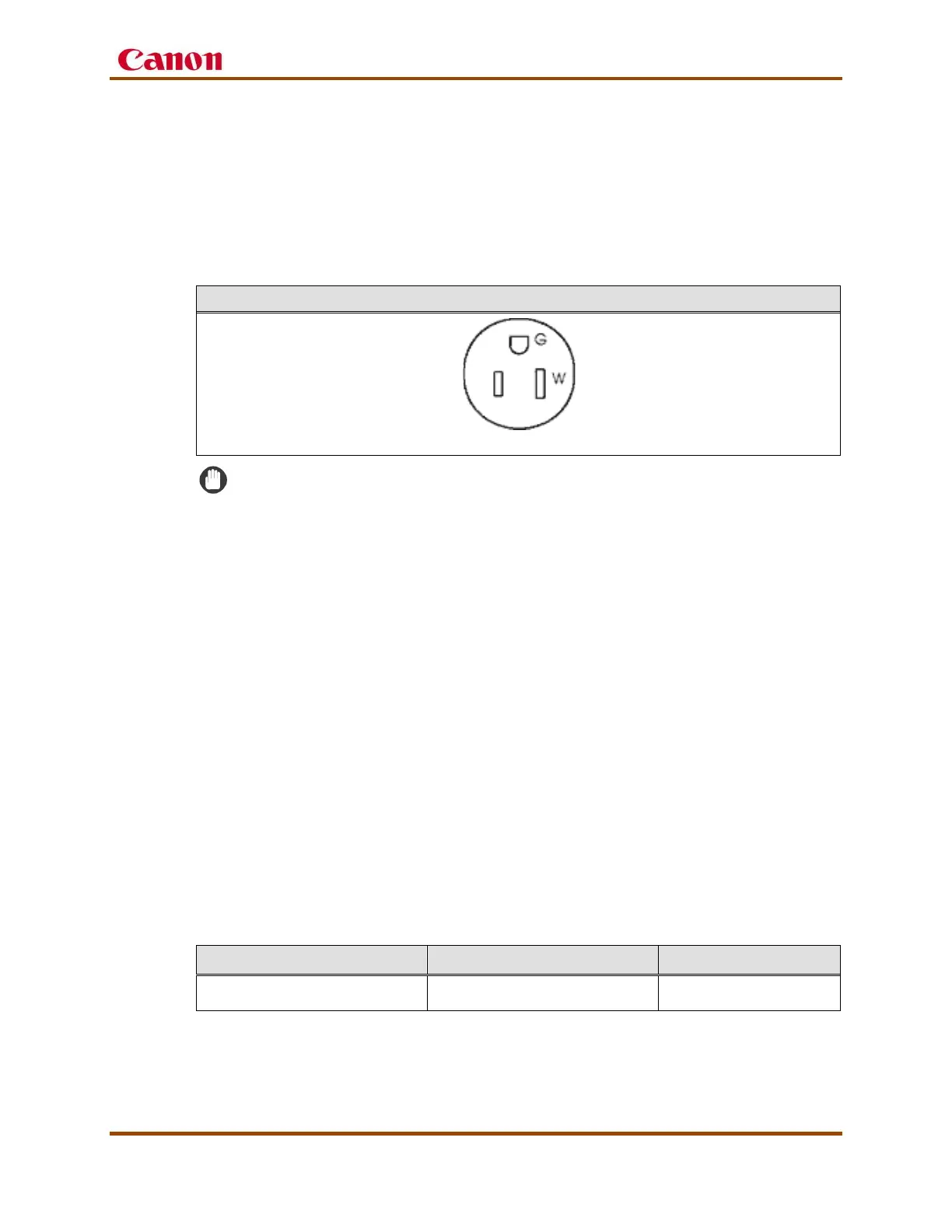

Table 10 – Power Receptacle for imagePROGRAF iPF685/680 Printer
imagePROGRAF iPF685/680 Printer Main Unit
NEMA 5-15 Receptacle
IMPORTANT
• We recommend an additional standard 120V/15A outlet for service tools,
such as a laptop computer or vacuum that may be used when servicing
or configuring the printer.
• Use only dedicated and properly grounded outlets for the
imagePROGRAF iPF685/680 printer main unit. It is also strongly
suggested to use dedicated and properly grounded outlets for each
optional accessory. Do not use extension cords. The ground connection
serves to provide the internal electronics with a reference voltage. Faulty
or poor ground sources will cause this reference voltage to fall into a
range that no longer serves as a reliable reference voltage. The internal
logic and programming of the imagePROGRAF iPF685/680 printers will
not perform reliably because there is an insufficient difference between
the internal operating signal voltages and the poor ground reference
signal. A qualified electrician can measure and provide the ground
source that the imagePROGRAF iPF685/680 printers or any computer
controlled office equipment requires.
• Before installation, confirm that all necessary receptacles are available.
• Phase converters and step down transformers are not supported
Table 11 – Power and Plug Requirements for imagePROGRAF iPF685/680 Printer
Description Power Supply Plug Specifications
imagePROGRAF iPF685/680 120 V/15 A outlet NEMA 5-15
