4

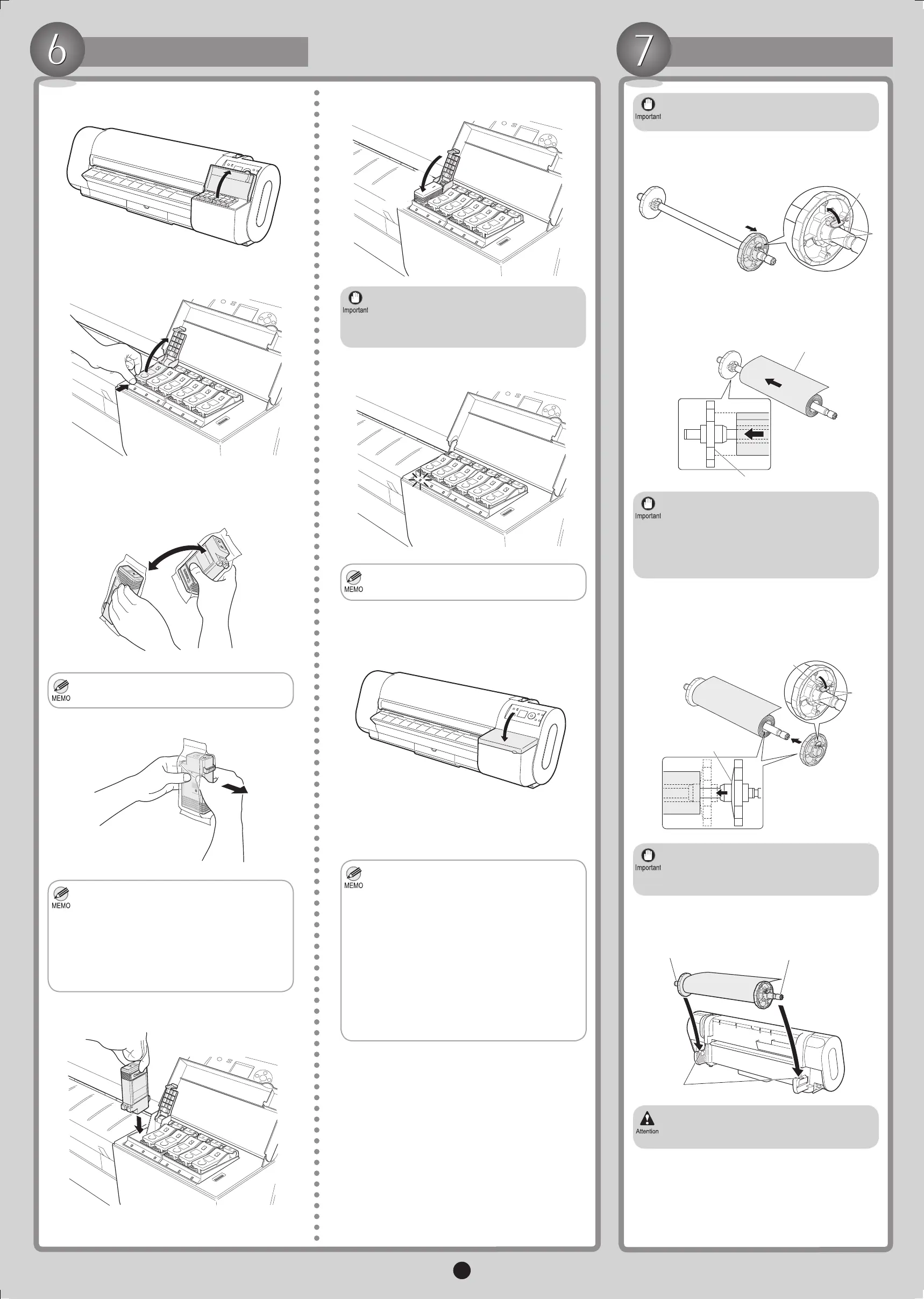

Install an Ink Tank Load a Roll
Lift the Holder Stopper lever (a) from the shaft
side to unlock it. Holding the Holder Stopper at the
position indicated (b), remove it from the Roll Holder.
1.
With the edge of the roll paper facing toward the
printer, insert the Roll Holder shaft (a) into the guide
grooves (b) of the Roll Holder Slot on both sides.
4.
We recommend wearing clean cloth gloves
when handling rolls to protect the printing
surface.
With the edge of the roll paper (a) facing back as
shown, insert the roll in the Roll Holder from the
right. Insert the roll rmly until it touches the ange (b)
of the Roll Holder.
2.
Insert the Holder Stopper from the right in the Roll
Holder as shown. Holding it at the position shown
(b), push it rmly in until the ange (a) of the Holder
Stopper touches the roll. Lock the Holder Stopper
lever (c) by pushing it down toward the shaft side.
Insert the roll rmly so that there is no gap
between the roll and the ange of the Roll
Holder. If there is a gap, it may cause feeding
problems.
Set the roll on a table or other at surface so
that it does not roll or fall. Rolls are heavy, and
dropping a roll may cause injury.
Insert the roll rmly so that there is no gap
between the roll and the ange of the Roll
Holder. If there is a gap, it may cause feeding
problems.
Be careful not to put your ngers between the
Roll Holder shaft (a) and the guide grooves (b)
when loading rolls.
Open the Ink Tank Cover.
1.
Press the tip of the Ink Tank Lock Lever of the color
for installation and open the Ink Tank Lock Lever.
2.
Never touch the ink holes or metal contacts.
This may cause stains, damage the Ink Tank,
and affect printing quality.
Avoid dropping the Ink Tank after removing it
from the pouch. Otherwise, ink may leak and
cause stains.
Open the pouch and remove the Ink Tank.4.
If you do not agitate the Ink Tank, the ink may
sediment, which may affect printing quality.
Before removing the Ink Tank from the pouch, shake
it gently seven or eight times. Agitate the ink in the
Ink Tank by inverting it repeatedly. Rotate your wrist
to turn the Ink Tank upside-down and right side up.
3.
Do not remove and shake the Ink Tank that has
already been installed in the printer. Ink may
leak out.
Insert the Ink Tank into the holder facing as shown,
with the ink holes down.
5.
Close the Ink Tank Lock Lever until it clicks.
6.
If the Ink Tank does not t in the holder, make
sure the color of the Ink Tank Lock Lever
matches the color of the Ink Tank, and check
the orientation of the Ink Tank before reloading
it.
Make sure the Ink Lamp is lit in red.
7.
Ink lamp ashes when there is little ink left.
Repeat steps 2-7 to install each Ink Tank.8.
Close the Ink Tank Cover.9.
After you have installed the Printhead and Ink Tank,
the system automatically lls with ink. This process
takes about ten minutes.
During printer installation, ink lls the system
between the Ink Tank and Printhead. The ink
level indicators may drop to 80% immediately,
but this does not indicate a problem with the
printer.
Follow the steps below to change the language
used on the Display Screen.
Press the Menu button to display Main Menu.1.
Press ▲ or ▼ to select System Setup, and
then press the ► button.
2.
Press ▲ or ▼ to select Language, and then
press the button.
3.
Press ▲ or ▼ to select the language, and
then press the OK button.
4.
a
b
a
b
c
a
b
a
b
a
