Canon imagePROGRAF TM-200 Setup Guide

8
6

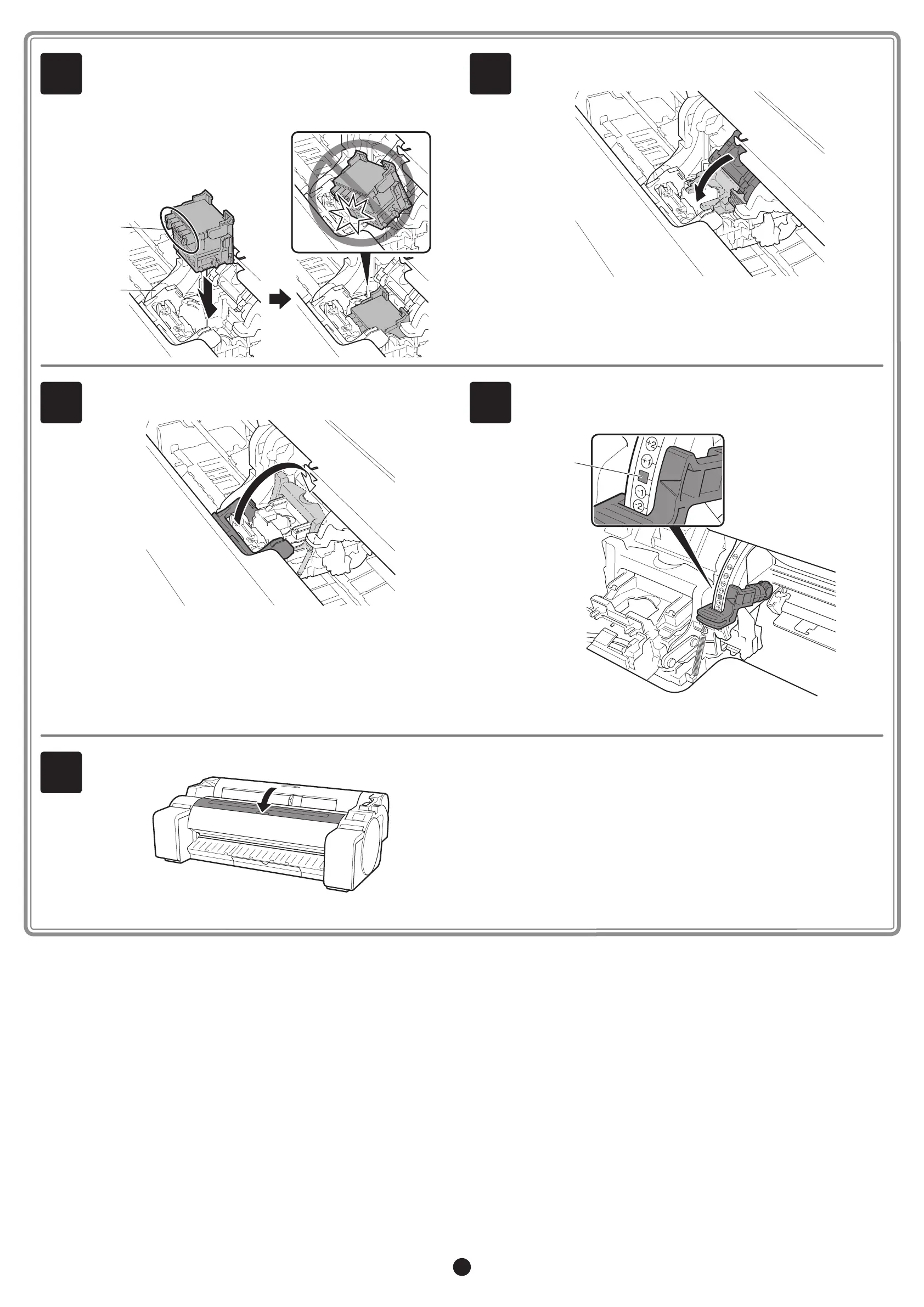

Insert the print head into the carriage (B) with the ink holes (A)
on the upper side and facing towards you as shown in the gure.
Carefully push the print head rmly into the carriage (B), ensuring
that the part covered by the protective caps does not touch the
carriage.
A
B
7
Pull the print head locking cover down toward the front to lock the
print head in place.
8
Push the print head lock lever all the way to the end.
9
Check that the angle adjustment lever is aligned with the position of
the red ■ (A). If it is not aligned, align the angle adjustment lever with
the red ■ (A).
A
10
Close the top cover.

Canon imagePROGRAF TM-200 Specifications

General

Max Print Resolution	2400 x 1200 dpi
Max Media Width	24 inches
Connectivity	USB, Ethernet, Wi-Fi
Printer Type	Large Format Printer
Media Thickness	0.07 - 0.8 mm
Memory	2 GB
Operating System	Windows, Mac OS
Power Supply	AC 100-240 V, 50/60 Hz
Print Technology	Inkjet
Number of Ink Colors	5
Ink Types	Pigment-based
Media Handling	Roll Feed
Nozzle Pitch	1200 dpi
Ink Droplet Size	5 picoliters
Media Width	203.2 - 610 mm
Maximum Roll Outer Diameter	150 mm
Media Core Size	2 inches
Printing Speed (Plain Paper)	24 sec/A1
Interface	USB 2.0, Wi-Fi
Acoustic Noise	44 dB
