Canon iP4200 - PIXMA Photo Printer User Manual

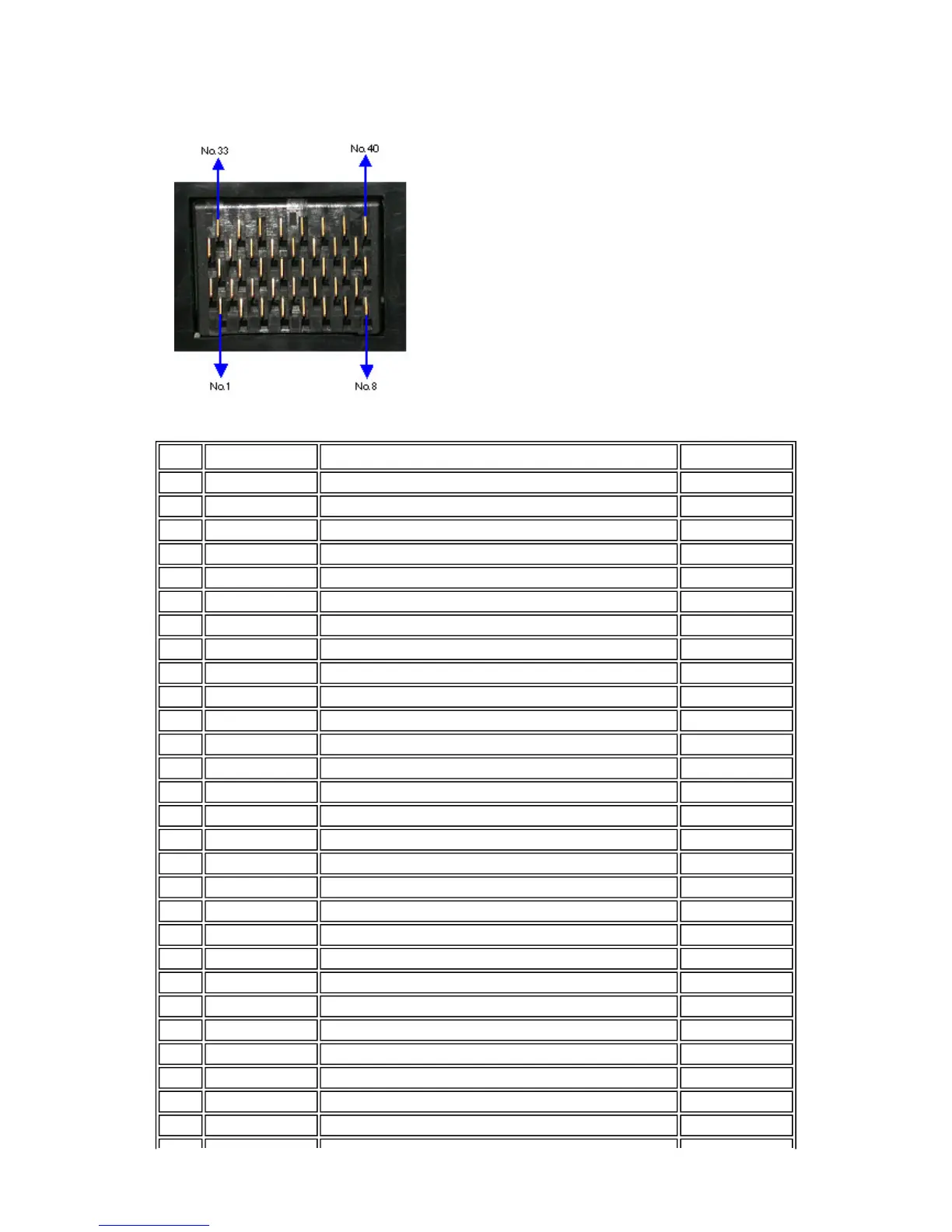

2-2. Carriage Board (Print Head Connector)
No.
Signal name Function Input / Output
1, 2 A_GNDH Head GND -
3 HD2_C1 Head data C1 OUT
4 HD8_Y1 Head data Y1 OUT
5 VSS Logic GND -
6 HD6_PBK1 Head data PBK1 OUT
7, 8 B_GNDH Head GND -
9 HD3_SC1 Head data SC1 OUT
10 HD5_SM1 Head data SM1 OUT
11 HD4_M1 Head data M1 OUT
12 HENB1 Head heat enable signal 1 OUT
13 HD10_SM2 Head data SM2 OUT
14 VSS Logic GND -
15 HD11_M2 Head data M2 OUT
16 DIK Diode sensor cathode IN
17 HD0_K1 Head data BK1 OUT
18 HENB0 Head heat enable signal 0 OUT
19 HENB3 Head heat enable signal 3 OUT
20 HLAT Head data latch signal OUT
21 HD12_SC2 Head data SC2 OUT
22 HD7_PBK2 Head data PBK2 OUT
23 HD9_Y2 Head data Y2 OUT
24 HENB2 Head heat enable signal 2 OUT
25 HD1_K2 Head data BK2 OUT
26 DIA0 Diode sensor anode 0 IN
27 HVDD_3.3V Head logic power supply 3.3V OUT
28 ROM_CS Head EEPROM chip select signal OUT
29 HCLK Head clock signal OUT
30 ROM_DIO (O) Head EEPROM data signal IN
3-7

Canon iP4200 - PIXMA Photo Printer Specifications

General

Print Technology	Inkjet
Max Resolution	9600 x 2400 dpi
Ink Type	Dye-based and pigment-based inks
Number of Ink Cartridges	5
Connectivity	USB 2.0
Borderless Printing	Yes
Media Sizes Supported	Letter, Legal, 4x6, 5x7, 8x10, Envelopes
Operating System Support	Windows, Mac
4 x 6 Photo Print Speed	Approx. 51 seconds
Ink Compatibility	CLI-8
Print Speed (Black)	Up to 29 ppm
Print Speed (Color)	19 ppm
Paper Handling	Input Tray: 150 sheets
